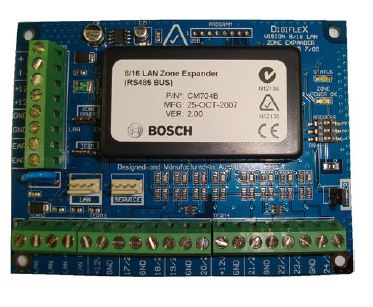

Bosch CM704B — Solution 6000 8/16 Zone Expander Module

Adds eight conventional or sixteen split zones to a Solution 6000 or 144. It runs on 10–14 VDC from the LAN bus or a local supply, carries its own tamper input, and has status and zone-power LEDs that make commissioning and fault-finding straightforward.

Key Details

• Eight or sixteen zones — Zone doubling turns eight physical pairs into sixteen detection points, which saves substantial cable on a retrofit.
• LAN or local power — Draw from the bus on a short run, or from a local supply where volt drop would otherwise be a problem.
• Separate tamper input — The expander's own enclosure is supervised independently of the zones it carries.
• Status and zone-power LEDs — Immediate visual diagnosis at the board instead of a trip back to the keypad.
• 0°C to 55°C — Suits an unconditioned riser cupboard or plant room.

Where It Fits

The standard way to grow a Solution 6000 past its onboard zones. Site expanders near the detectors they serve rather than all at the panel — that is the whole point of a bus system, and it saves a great deal of cable.

Technical Specifications
