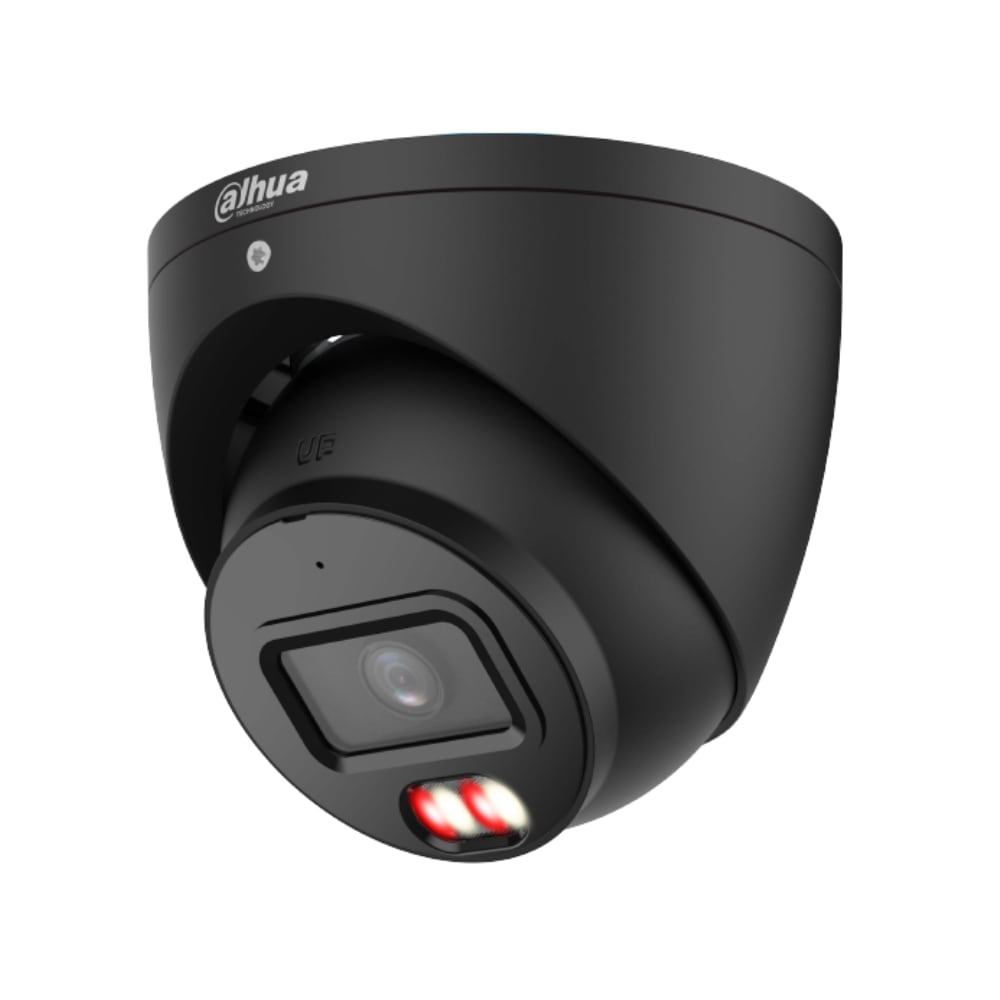

Dahua DH-IPC-HDW3867EM-S-IL-ANZ 8MP Smart Dual Light Turret Camera

The Dahua DH-IPC-HDW3867EM-S-IL-ANZ is an 8MP 4K WizSense turret camera with a fixed lens, built for Australian residential, retail, office and commercial installations. It pairs a 1/2.7-inch CMOS sensor with a wide 2.8 mm F1.4 lens and adds 30 m Smart Dual Light, SMD 4.0 human and vehicle classification, AcuPick compatibility, a built-in microphone and a rugged IP67 metal housing, and is covered by a 3-year Australian warranty.

Why Choose the Dahua HDW3867EM-S-IL-ANZ?

8MP 4K Video

Delivers up to 3840 × 2160 at 25/30 fps, so entrances, driveways, retail floors and general site views can be watched and reviewed in fine detail.

Wide 2.8 mm Coverage

The fixed F1.4 lens covers a 110° horizontal, 58° vertical and 132° diagonal field of view, taking in a broad slice of the scene from a single mounting point.

Smart Dual Light

Pairs infrared reaching up to 30 m with a warm-light illuminator of the same range. Depending on the lighting mode you select, the camera can watch discreetly under IR or capture colour footage while the warm light is on.

SMD 4.0 Alerts

Distinguishes people and motor vehicles from other movement, cutting down on alerts triggered by animals, foliage and similar non-target motion.

AcuPick Compatible

When paired with compatible Dahua back-end hardware, AcuPick can match and pinpoint human and vehicle targets across live and recorded footage.

Flexible Recording

Records to compatible NVRs, NAS, FTP/SFTP and microSD cards up to 512 GB, and offers Smart H.265+ to trim storage and bandwidth demands.

Smart Dual Light: Colour When It Matters

Dahua's Smart Dual Light system brings infrared and warm illumination together in one camera. In the appropriate smart mode, IR keeps watch over the scene after dark, and the warm light switches on when a configured target enters the monitored area so the camera can capture colour detail for the moments that matter. Once the target leaves, the warm light turns off again, keeping visible-light use to a minimum.

Both the IR and warm-light illuminators are rated for up to 30 m. Real-world results vary with mounting height, target distance, nearby surfaces, ambient light and camera configuration.

AI and Smart Detection

SMD 4.0

Human and vehicle classification filters out motion you don't care about, so event review is faster and more meaningful.

Perimeter Protection

Tripwire and intrusion rules apply accurate human and vehicle classification within the zones you define.

AcuPick

Deep-learning target matching, used together with compatible back-end devices, helps find people and motor vehicles across live and recorded video.

AI SSA

AI Scene Self-adaptation automatically tunes image settings for challenging conditions including rain, fog, backlight, low light and flicker.

Smart Search

Pairs with a compatible Smart NVR for refined intelligent search, event extraction and merged event video.

Built-in Microphone

Records one-way audio where this is enabled and legally permitted. Note that this model has no built-in speaker and does not list external audio or alarm I/O.

2.8 mm Lens Coverage and DORI

The included 2.8 mm lens is geared toward wide scene coverage. Dahua publishes the DORI planning figures below under EN 62676-4; treat them as planning references only, not guaranteed distances for intelligent detection, facial identification or number-plate reading.

Field of View	Horizontal 110° · Vertical 58° · Diagonal 132°
Close Focus Distance	1.4 m
Detect	84.8 m
Observe	33.9 m
Recognise	17.0 m
Identify	8.5 m

Installation Notes

Set the View During Installation

As a fixed-focal camera with no optical zoom, the scene is locked in at install time — check the scene width and target distance you need before mounting.

Flexible Eyeball Adjustment

The eyeball mechanism adjusts through pan 0°–360°, tilt 0°–80° and rotation 0°–360°.

Weatherproof the Connection

The IP67 rating covers the camera housing itself. Outdoor RJ-45 connections and cable joins still need proper sealing and a suitable junction box.

Avoid Night Reflections

Position the camera so the illuminators are clear of nearby walls, gutters, glass and foliage that could bounce light back into the lens.

Technical Specifications

Camera and Lens

Model	DH-IPC-HDW3867EM-S-IL-ANZ
Camera Type	Fixed-focal eyeball / turret network camera
Image Sensor	1/2.7-inch CMOS
Maximum Resolution	3840 × 2160 (8MP 4K)
Frame Rate	Up to 25/30 fps at 8MP
Minimum Illumination	0.007 lux colour · 0.0007 lux B/W · 0 lux with illuminator on
Lens	2.8 mm fixed-focal · M12 mount · F1.4
Field of View	H 110° · V 58° · D 132°
Angle Adjustment	Pan 0°–360° · Tilt 0°–80° · Rotation 0°–360°
WDR	120 dB
Image Features	BLC · HLC · 3D NR · defog · privacy masking · LDC

Illumination and Intelligence

IR Illumination	Up to 30 m
Warm Light	Up to 30 m
Illuminators	2 multi-core IR + warm-light LEDs
Smart Motion Detection	SMD 4.0
Perimeter Protection	Tripwire and intrusion with human/vehicle classification
AcuPick	Yes, with compatible Dahua back-end devices
AI SSA	Yes
Smart Search	Yes, with compatible Smart NVR

Video, Audio and Storage

Compression	H.265 · H.264 · Smart H.265+ · Smart H.264+ · AI H.265/H.264 · MJPEG on sub stream
Streaming	Three streams
Main Stream	3840 × 2160 at 1–25/30 fps
Built-in Microphone	Yes
Audio Compression	PCM · G.711a · G.711Mu · G.726 · G.723
Local Storage	microSD card up to 512 GB
Network Storage	FTP · SFTP · NAS

Network, Power and Construction

Network	RJ-45 10/100 Base-T
Interoperability	ONVIF Profiles S, G, T and M · CGI
Mobile Client	Dahua DMSS for iOS and Android
Power	12 VDC or PoE 802.3af
Power Consumption	Basic 3.7 W at 12 VDC / 5.3 W PoE · Maximum 7.4 W at 12 VDC / 9.5 W PoE
Operating Conditions	–40 °C to +60 °C · ≤95% RH non-condensing
Protection	IP67 metal housing
Dimensions	105.5 mm × Ø122.0 mm
Weight	0.53 kg net · 0.71 kg gross

8MP HDW3867EM vs 6MP HDW3667EM

The two cameras share the same 2.8 mm F1.4 lens, 30 m IR and warm-light illumination, SMD 4.0, AcuPick compatibility, built-in microphone and IP67 housing. What separates them is recording resolution: this model captures 8MP 4K, whereas the HDW3667EM-S-IL-ANZ records at 6MP and typically consumes less storage at comparable encoding settings.

Feature	HDW3867EM-S-IL-ANZ	HDW3667EM-S-IL-ANZ
Maximum Resolution	8MP · 3840 × 2160	6MP · 3288 × 1850
Sensor	1/2.7-inch CMOS	1/2.7-inch CMOS
Lens	2.8 mm F1.4	2.8 mm F1.4
Field of View	110° horizontal	110° horizontal
Smart Dual Light	30 m IR + 30 m warm light	30 m IR + 30 m warm light
AI	SMD 4.0 · AcuPick · IVS · AI SSA	SMD 4.0 · AcuPick · IVS · AI SSA
Best Fit	Higher 4K recording detail	Lower storage demand and purchase price

Frequently Asked Questions

What does Smart Dual Light mean?

The camera carries both infrared and warm-light illuminators. Configured appropriately, it can keep watch using IR and turn on the warm light for colour footage whenever a relevant target enters the monitored area.

Does it record 4K at full frame rate?

It delivers 3840 × 2160 at up to 25/30 fps. The frame rate you achieve can depend on how streams and encoding are configured.

Does it have AcuPick?

Yes. Working with compatible Dahua back-end devices, AcuPick matches and locates human and motor-vehicle targets.

Does it have a microphone?

Yes — a built-in microphone captures one-way audio. There is no built-in speaker.

Can I use a third-party NVR?

The camera supports ONVIF, so standard video recording works with compatible recorders, though Dahua-specific AI and search features may be limited on third-party hardware.

Can it record without an NVR?

Yes. With correct configuration it records to a microSD card up to 512 GB, or to NAS and FTP/SFTP storage.

Can standard PoE power it?

Yes. It runs on 802.3af PoE, with a published maximum PoE draw of 9.5 W.

Is it suitable outdoors?

Yes. Its metal housing carries an IP67 rating, though outdoor network connections still need proper sealing and weatherproof cable management.

Availability and Warranty

The Dahua DH-IPC-HDW3867EM-S-IL-ANZ is available in white or black and is backed by a 3-year Australian warranty. For help with NVR compatibility, mounting accessories or system design, get in touch with our team.
