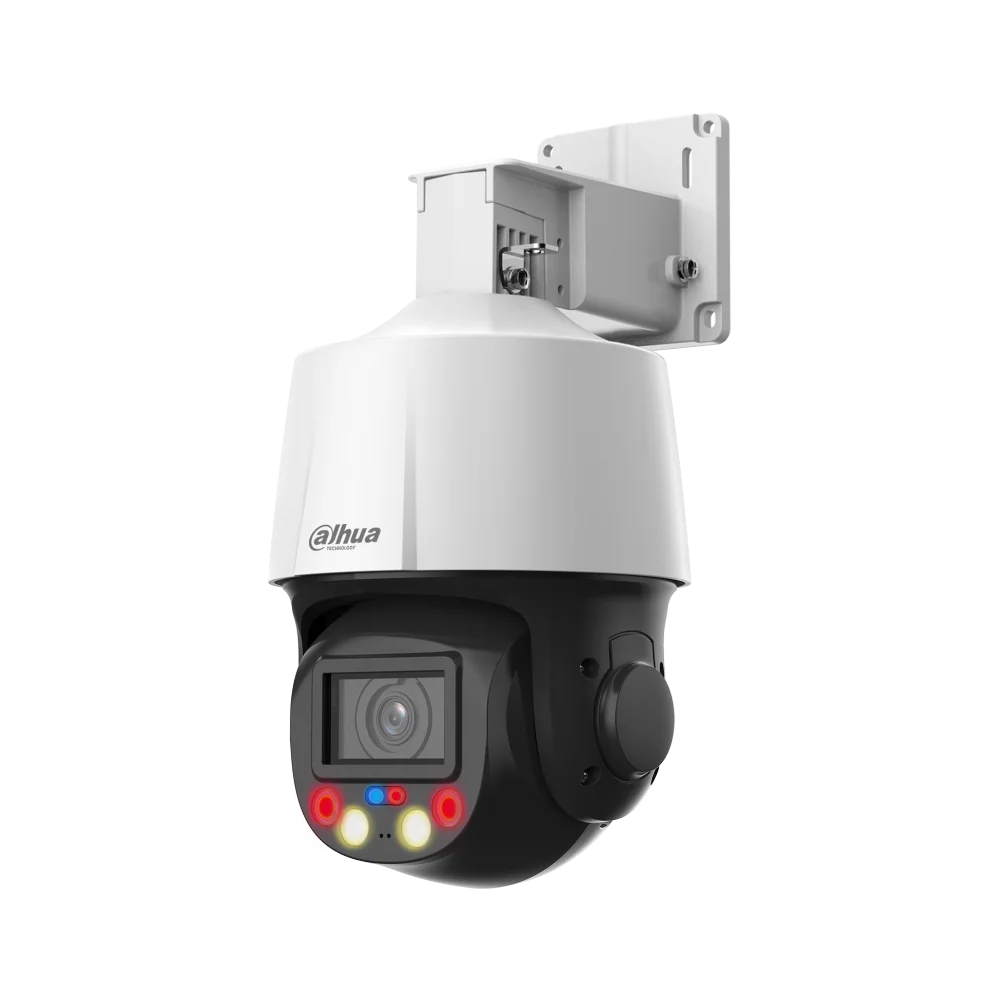

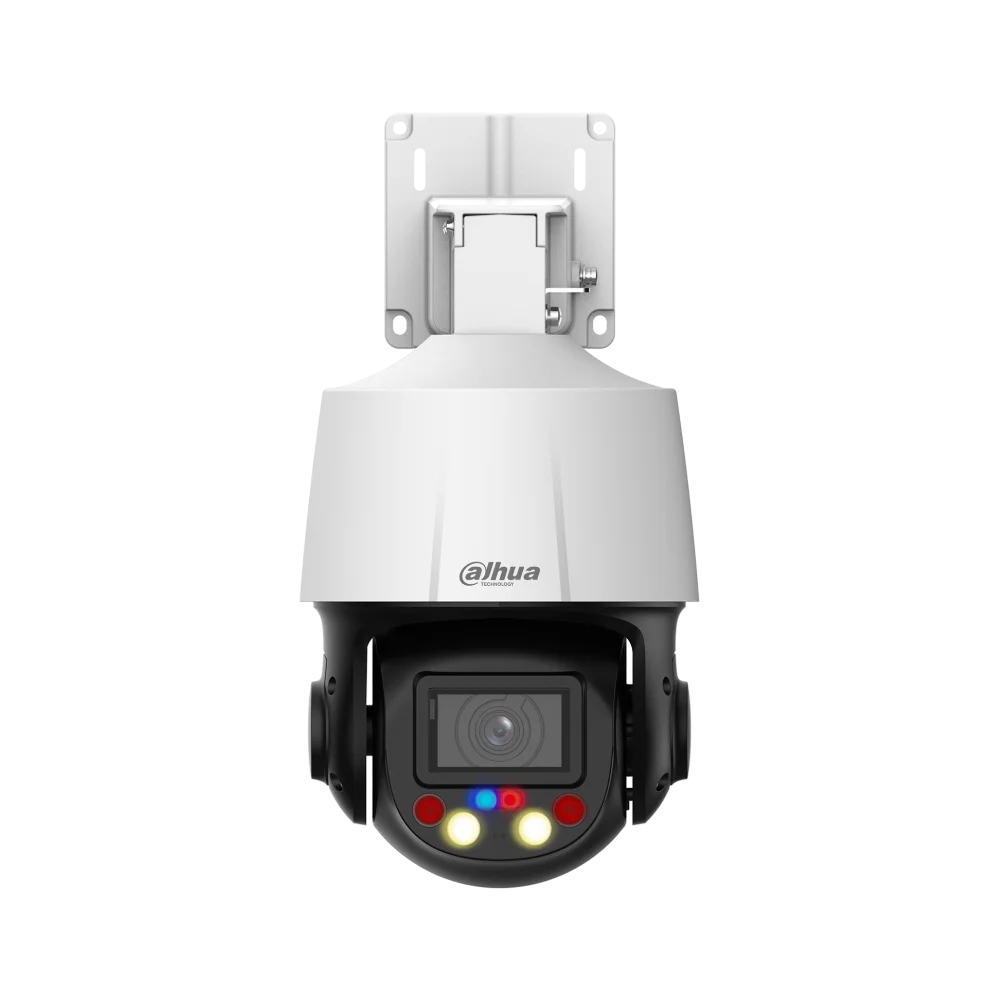

Dahua DH-SD3E405DB-GNY-A-PV1 — 4MP 5x TiOC Mini PT with Active Deterrence

A compact pan-tilt camera that punches well above its size. It moves through 355 degrees of pan and 105 degrees of tilt, zooms 5x optically, and carries the full TiOC deterrence package — red and blue strobes, eleven built-in sirens and ten uploadable custom messages. Smart Dual Light gives it infrared to 50 metres for discreet watching and warm light to 30 metres for colour capture when its AI decides something is happening.

Core Technology

• Active Deterrence in a Mini Chassis — Red and blue warning lights plus eleven built-in alarms and ten custom audio uploads, playable one to ten times per event.
• 5x Optical Zoom on Pan-Tilt — A 2.7-13.5 mm motorised lens spanning 95 to 30 degrees, mounted on motors that cover 355 degrees of pan.
• Smart Dual Light — Infrared to 50 m for discreet monitoring, handing over to 30 m of warm light when a person or vehicle is detected.
• Deep IVS for the Price — Tripwire, intrusion, crossing-fence, loitering, abandoned object, fast-moving, parking and people gathering, with Auto Tracking Lite.
• 300 Presets and 8 Tours — Full patrol programming with power-off memory, so a small site can be systematically covered by one camera.
• Heated Glass and TVS 6000 V — Heating glass for damp and cold mornings plus surge protection, in an IP66 housing. PoE+ (802.3at) or 12 VDC at 2 A.

Where It Fits

The affordable way to put a moving, talking deterrence camera on a home, small business, workshop or yard where a full-size PTZ would be overkill and over budget.

Camera & Image Sensor

Model	DH-SD3E405DB-GNY-A-PV1
Form Factor	Mini-PT (motorised pan-tilt-zoom dome)
Image Sensor	1/2.8" CMOS
Maximum Resolution	2560 × 1440 (4 MP)
Minimum Illumination	0.005 lux @ F1.6 (Colour)
WDR	120 dB
Day / Night	Auto (ICR) / Colour / B&W
Smart Dual Light	Yes (target-triggered IR / warm-light hand-off)

Lens & Illumination

Lens Type	Motorised vari-focal
Focal Length	2.7 mm – 13.5 mm
Maximum Aperture	F1.6 – F3.0
Optical Zoom	5×
Field of View	H: 94.9° – 30.1°
IR Illumination	Up to 50 m
Warm Light Illumination	Up to 30 m
Illuminator Configuration	2 × warm-light LEDs (Smart Dual Light)

Pan-Tilt & Intelligence

Pan Range	0° to 355°
Tilt Range	–15° to +90°
Manual Speed	Pan 0.1° – 36°/s · Tilt 0.1° – 25.8°/s
Preset Speed	Pan 35.7°/s · Tilt 27.1°/s
Presets	300
Tours	8 (up to 32 presets per tour)
Idle Motion	Preset · Tour
Power-off Memory	Yes
AI Platform	WizSense
IVS (Perimeter Protection)	Tripwire · intrusion · crossing-fence · loitering · abandoned/missing object · fast-moving · parking detection · people gathering · vehicle/human alarm classification · linkage tracking
Auto Tracking	Auto Tracking Lite
SMD	SMD 3.0
Active Deterrence — Light	Red/blue light warning
Active Deterrence — Sound	11 built-in sound alarms + 10 importable custom · play 1–10 times

Video, Audio & Network

Video Compression	Smart H.265+ · H.265 · Smart H.264+ · H.264 · H.264H · MJPEG (sub stream)
Resolutions	4 MP · 3 MP · 1080p · 1.3 MP · 720p · D1 · VGA · CIF
Main Stream	2560 × 1440 @ 1 – 25/30 fps
Audio Compression	G.711a · G.711Mu · G.726 · MPEG2-Layer2 · G.722.1 · PCM
Audio Input	1 channel (LINE IN, bare wire · built-in mic — mutually exclusive)
Audio Output	1 channel (LINE OUT, bare wire · built-in speaker — mutually exclusive)
Alarm I/O	1 in / 1 out
Alarm Linkage	Capture · recording · email · preset · alarm digital · audio · warning light
Network Port	RJ-45 (10/100 Base-T)
Interoperability	ONVIF (Profile S, G, T) · CGI · SDK
Storage	Micro SD card · FTP / SFTP · NAS
Mobile Client	DMSS (iOS / Android)
Management Software	DMSS · DSS Pro

Power, Environment & Build

Power Supply	12 VDC, 2 A ± 10% · PoE+ (IEEE 802.3at)
Power Consumption (Basic)	4.5 W
Power Consumption (Max.)	15 W (illuminator + PTZ + speaker + heating glass)
Operating Temperature	–30 °C to +60 °C
Protection	IP66 · TVS 6000 V lightning protection · surge protection · voltage transient protection
Product Dimensions	142.6 mm × 140 mm × 236.1 mm
Net Weight	1.5 kg
Certifications	CE · RCM (AU)
Australian Warranty	3-Year Australian Warranty

Assurance

• 3-Year Australian Warranty
• Genuine Dahua stock, supplied and supported locally
• Australian-based technical support before and after purchase
