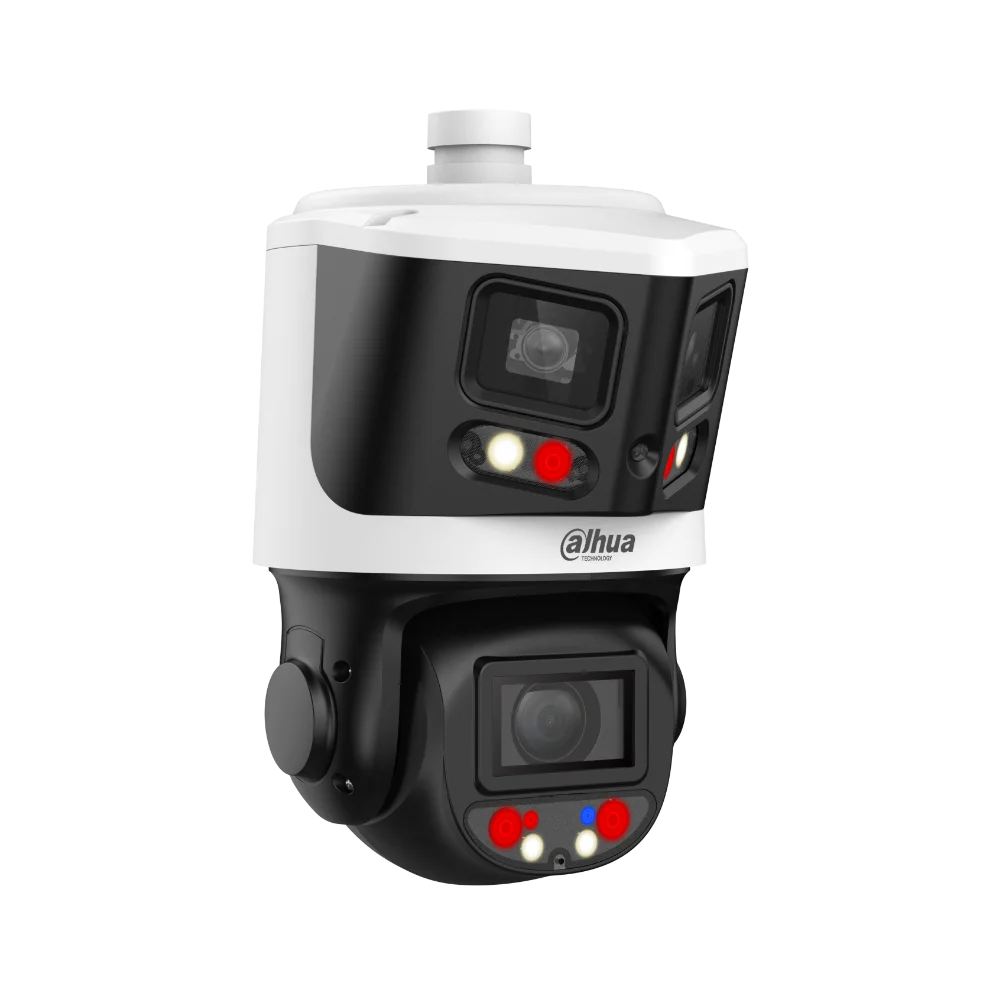

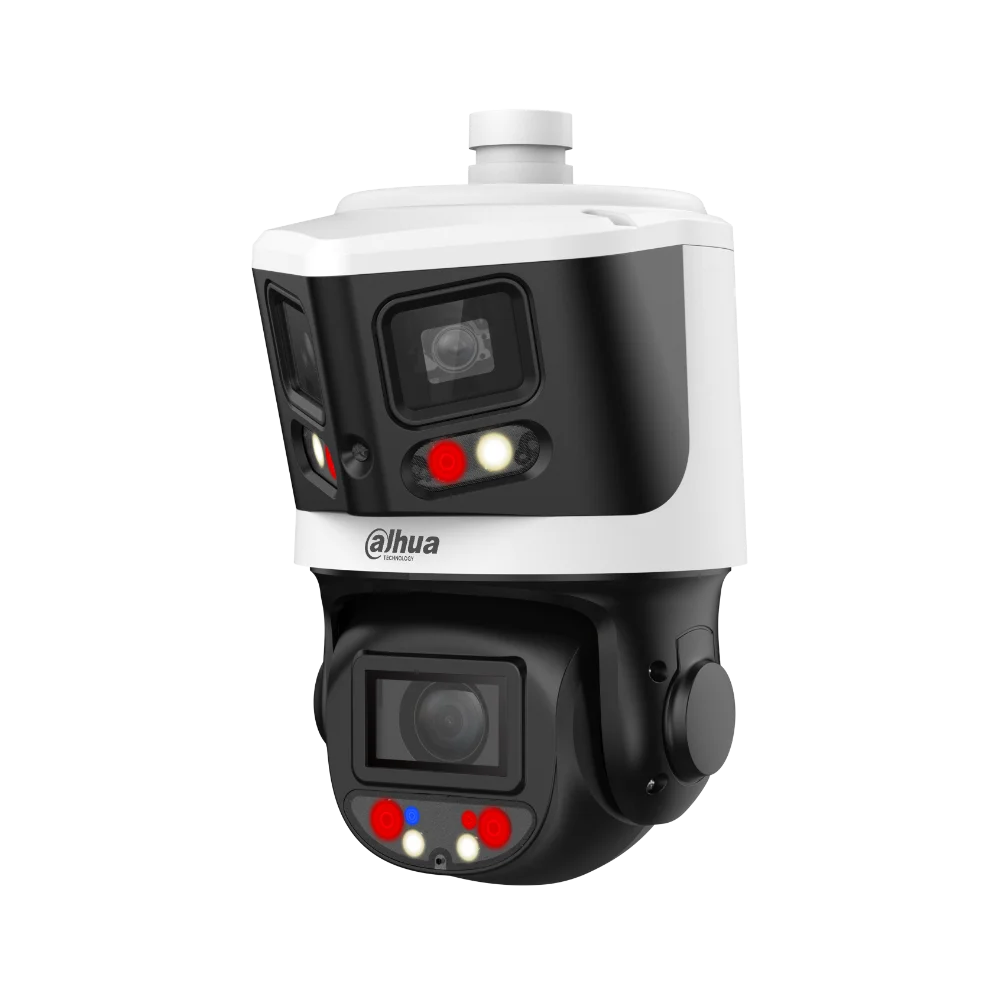

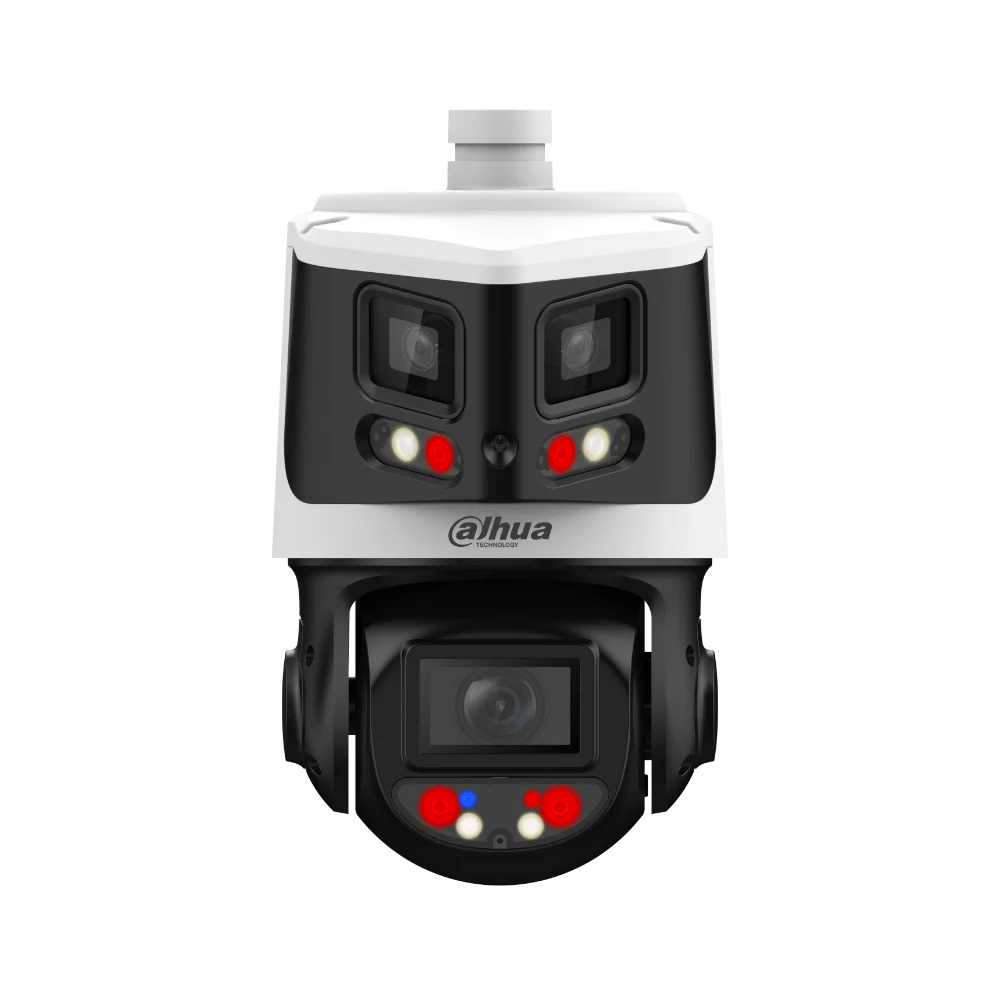

Dahua DH-SDT3E410-8P-MB-A-PV1 — 8MP 180-Degree Panoramic + 10x PTZ TiOC Camera

This is two cameras in one housing, and they work together. A fixed 8 MP panoramic channel watches a full 180 degrees continuously, so nothing is ever missed while the camera is looking elsewhere. When the panorama detects a person, it hands the target to the second channel — a 10x zoom PTZ that swings across and pulls in for a close look, tracking automatically. Add red and blue strobes, eleven built-in sirens and ten custom audio uploads, and it deters as well as it records.

Core Technology

• Panorama Plus PTZ Linkage — The fixed 180-degree channel never stops watching and hands detected targets to the 10x PTZ channel, which zooms in and tracks automatically.
• 500 m Detection at Full Zoom — The detail channel is rated 500 m detect and 100 m recognise at 40 mm, with 70 m of infrared behind it.
• Active Deterrence with Custom Audio — Red and blue warning lights plus eleven built-in alarm sounds and ten uploadable custom messages, with adjustable duration and volume.
• Deep IVS with Face Attributes — Tripwire, intrusion, crossing-fence, loitering, abandoned object, parking and people gathering, with six face attributes and eight expressions on the detail channel.
• 300 Presets with Power-Off Memory — Returns to its programmed viewpoints after a power interruption rather than needing to be reset.
• Heated Glass and TVS 6000 V — Heating glass for cold and damp conditions plus 6000 V lightning and surge protection in an IP66 housing.

Where It Fits

Made for wide, high-value sites that need both total awareness and detail on demand — car yards, marinas, equipment compounds, school grounds, quarries and rural properties. Requires PoE+ (802.3at) or 12 VDC at 3 A.

Panorama Channel

Image Sensor	1/2.8" CMOS
Maximum Resolution	5376 (H) × 1520 (V) — 8 MP
Lens	2.8 mm fixed
Maximum Aperture	F1.6
Field of View	H: 180° · V: 47°
Min. Illumination	0.005 lux @ F1.6 (colour) · 0.0005 lux @ F1.6 (B/W) · 0 lux (illuminator on)
IR / White Light	30 m / 30 m
WDR	DWDR
Close Focus Distance	0.6 m
Electronic Shutter	1 s – 1/100,000 s
ROM / RAM	4 GB / 2 GB

Detail Channel (10× PTZ)

Image Sensor	1/2.8" Sony STARVIS™ CMOS
Maximum Resolution	2560 (H) × 1440 (V) — 4 MP
Lens	4 mm – 40 mm motorised vari-focal
Optical Zoom	10×
Digital Zoom	16×
Maximum Aperture	F1.6 – F3.6
Field of View	H: 58° – 11.3° · V: 33.1° – 6.4° · D: 66.4° – 12.8°
Focus Control	Auto · Semi-Auto · Manual
Min. Illumination	0.005 lux @ F1.6 (colour) · 0.0005 lux @ F1.6 (B/W) · 0 lux (illuminator on)
IR / White Light	70 m / 30 m
WDR	120 dB true WDR
DORI (Tele 40 mm)	Detect 500 m · Observe 197.5 m · Recognise 100 m · Identify 50 m
Image Stabilisation	EIS
S/N Ratio	≥ 55 dB
Electronic Shutter	1 s – 1/30,000 s
ROM / RAM	4 GB / 1 GB

PTZ & Smart Tracking

Pan Range	0° to 345°
Tilt Range	–10° to +90°
Manual Speed (Detail)	Pan 0.1° – 80°/s · Tilt 0.1° – 50°/s
Preset Speed	Pan 80°/s · Tilt 50°/s
Presets	300
Idle Motion	Preset
Power-off Memory	Yes
Smart Tracking	Panorama → Detail linkage tracking · Auto Tracking Lite

Intelligence, Video & Active Deterrence

AI Platform	WizSense
IVS	Tripwire · intrusion · crossing-fence · loitering · abandoned/missing object · fast-moving · parking detection · people gathering · human/vehicle alarm classification · linkage tracking (people)
Face Detection (Detail)	6 attributes · 8 expressions · face cutout (one-inch photo) · real-time / quality-first / best-of-group capture
SMD	SMD 4.0
Auto Tracking	Auto Tracking Lite
Active Deterrence — Light	Red/blue light warning · 5 – 30 s flash duration · high/medium/low frequency
Active Deterrence — Sound	11 built-in sound alarms + 10 custom uploads · volume 0–100% · play 1–10 times
Video Compression	Smart H.265+ · H.265 · Smart H.264+ · H.264 · H.264B · H.264H · H.264M · MJPEG (sub stream 1)
Streaming	3 streams (per channel)
Panorama Main Stream	5376 × 1520 @ 1 – 25/30 fps
Detail Main Stream	4 MP / 3 MP / 1080p / 1.3 MP / 720p @ 1 – 25/30 fps
Bit Rate Control	CBR · VBR
Video Bit Rate (Panorama)	H.264 128 kbps – 16,384 kbps · H.265 51 kbps – 13,312 kbps
Video Bit Rate (Detail)	H.264 96 kbps – 16,384 kbps · H.265 38 kbps – 10,240 kbps
WDR / BLC / HLC	120 dB (Detail) · Yes / Yes
Noise Reduction	2D NR · 3D NR
Defog	Electronic

Audio, Alarm & Network

Audio Compression (Panorama)	PCM · G.711a · G.711Mu · G.726 · MPEG2-Layer2 · G.722.1 · G.729
Audio Input	1 channel — LINE IN bare wire · built-in mic (mutually exclusive)
Audio Output	1 channel — LINE OUT bare wire · built-in speaker (mutually exclusive)
Alarm Input	1 channel — on/off 0 – 5 VDC
Alarm Output	1 channel
Alarm Linkage	Capture · recording · email · preset · tour · pattern · alarm digital · audio · warning light
Network Port	RJ-45 (100 Base-T)
Network Protocols	FTP · RTMP · IPv6 · Bonjour · IPv4 · DNS · RTCP · PPPoE · NTP · RTP · 802.1x · QoS · HTTPS · SNMP · TCP/IP · DDNS · UPnP · NFS · ICMP · UDP · IGMP · HTTP · SSL · DHCP · SMTP · RTSP · ARP
Interoperability	ONVIF (Profile S, G, T) · CGI · SDK · P2P
Streaming Method	Unicast / Multicast
Max Users	20 (total bandwidth 64 Mbps)
Storage	Micro SD up to 512 GB · FTP / SFTP · NAS
Management Software	DMSS · DSS Pro
Mobile Client	iOS · Android (DMSS)

Power, Environment & Build

Power Supply	12 VDC, 3 A ± 10% · PoE+ (IEEE 802.3at)
Power Consumption	Basic 12 W · Max 25 W (illuminator + heating glass + siren & light + PTZ)
Operating Temperature	–30 °C to +60 °C
Operating Humidity	≤ 95%
Protection	IP66 · TVS 6000 V lightning protection · surge protection · voltage transient protection
Product Dimensions	140.3 mm × 181.7 mm × 238.8 mm (L × W × H)
Net Weight	2.17 kg
Gross Weight	3.1 kg
Certifications	CE — EN 55032 · EN 55035 · IEC 61000-3-2 · IEC 61000-3-3 · EN 62368-1 · IEC 62471 · RCM (AU)
Australian Warranty	3-Year Australian Warranty

Assurance

• 3-Year Australian Warranty
• Genuine Dahua stock, supplied and supported locally
• Australian-based technical support before and after purchase
