Dahua DH-PFA136 — Waterproof Junction Box for Turret & Mini-Dome Cameras

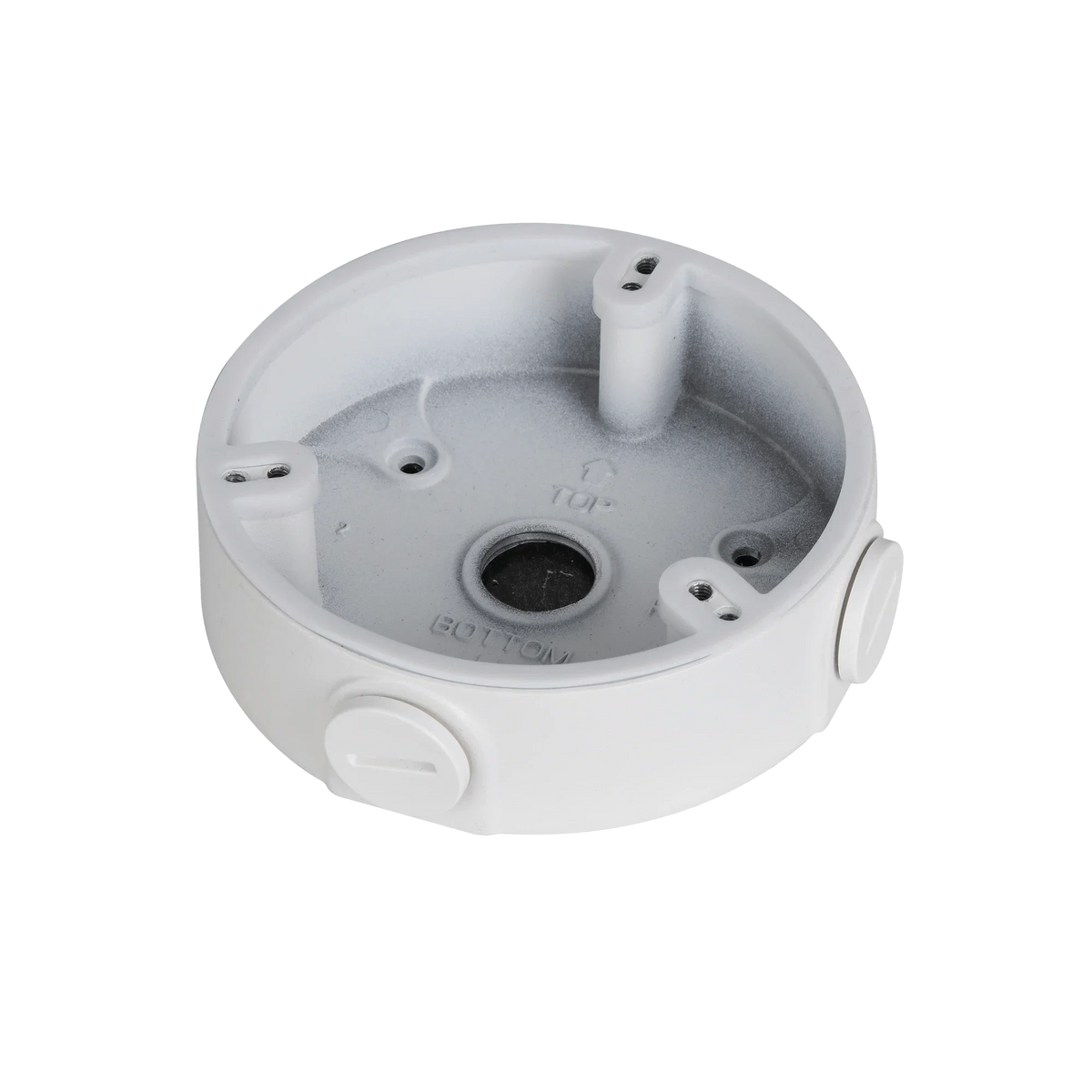

The PFA136 is the rear-cavity junction box that sits between a Dahua eyeball turret or mini-dome and the wall, giving the cable a sealed cavity to terminate in instead of a hole in the render. It is powder-coated aluminium alloy in Dahua white or black, measures Φ110 × 34 mm, and carries up to 1 kg. An M20 water-tight gland and rubber water-joint come in the box, along with the M4 screws, self-tappers and anchors needed to fix it to brick, weatherboard, fibre cement or Colorbond.

Key Details

• Fits the HDW and HDBW ranges — Drilled for Dahua's circular turret and mini-dome bases across TiOC 3.0, WizSense, Lite 2-Series, 5-Series Pro AI and the HDCVI HAC equivalents.
• Sealed cable termination — An M20 water-tight gland and rubber water-joint enclose the cable join, keeping moisture off the connection where it enters the wall.
• Powder-coated aluminium alloy — Cast alloy under a Dahua white or black powder coat, rated −40 °C to +60 °C and 0–90% humidity for permanently exposed positions.
• Compact base rated to 1 kg — Φ110 × 34 mm and only 0.19 kg, it adds a termination cavity without bulk and carries any camera up to its 1 kg limit.

Where It Fits

Reach for this when a Dahua turret or mini-dome is going onto a surface where the cable cannot come through cleanly. HFW bullet cameras need the PFA135 or PFA130-E instead, and camera bases wider than 110 mm will not seat on it.

Dahua PFA136 · Camera Compatibility (Australian Market Models)

DH-PFA136 · Full Specifications (White & Black)

Assurance

• 3-Year Australian Warranty
• Genuine Dahua stock, supplied and supported locally
• Australian-based technical support before and after purchase
