Dahua DH-PFA137 — IP66 Waterproof Junction Box

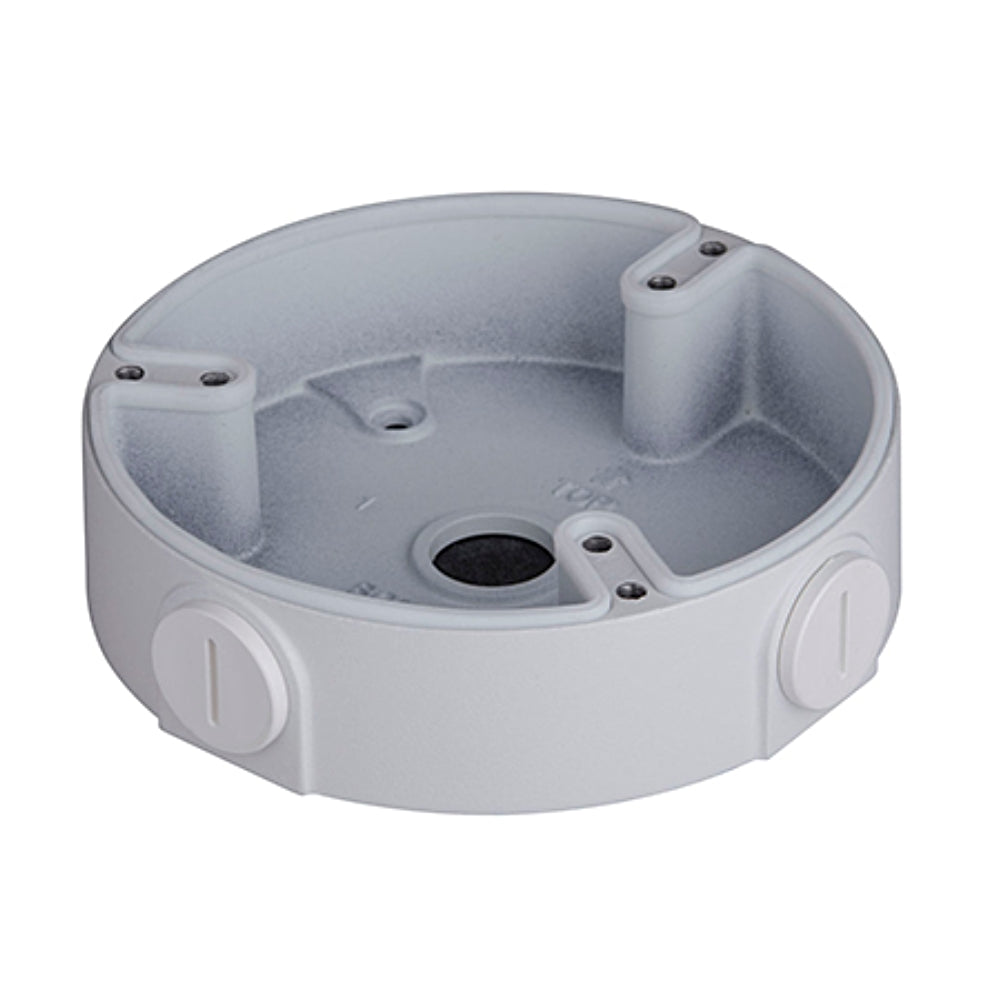

The PFA137 is the larger round junction box in Dahua's accessory range: a sealed aluminium alloy cavity that goes onto the wall or ceiling first and gives the camera cable somewhere weatherproof to terminate. At Φ122 × 34 mm it suits camera bases too wide for the smaller boxes, and it threads onto standard G1/2" pipe fittings. Rated IP66 and good from −40 °C to +60 °C, it carries up to 1 kg and comes in Dahua white or black so the finish carries through from bracket to camera.

Key Details

• IP66 sealed — A full IP66 rating keeps driving rain and dust out of the cable join, so the connection survives fully exposed wall and eave positions.
• Φ122 mm aluminium alloy body — The wider 122 mm footprint takes larger camera bases, and the alloy shell stays rigid where moulded plastic boxes flex and crack.
• G1/2" pipe thread — Threads onto standard G1/2" fittings, so it can sit on pendant hardware or a pole arm as well as flat against a surface.

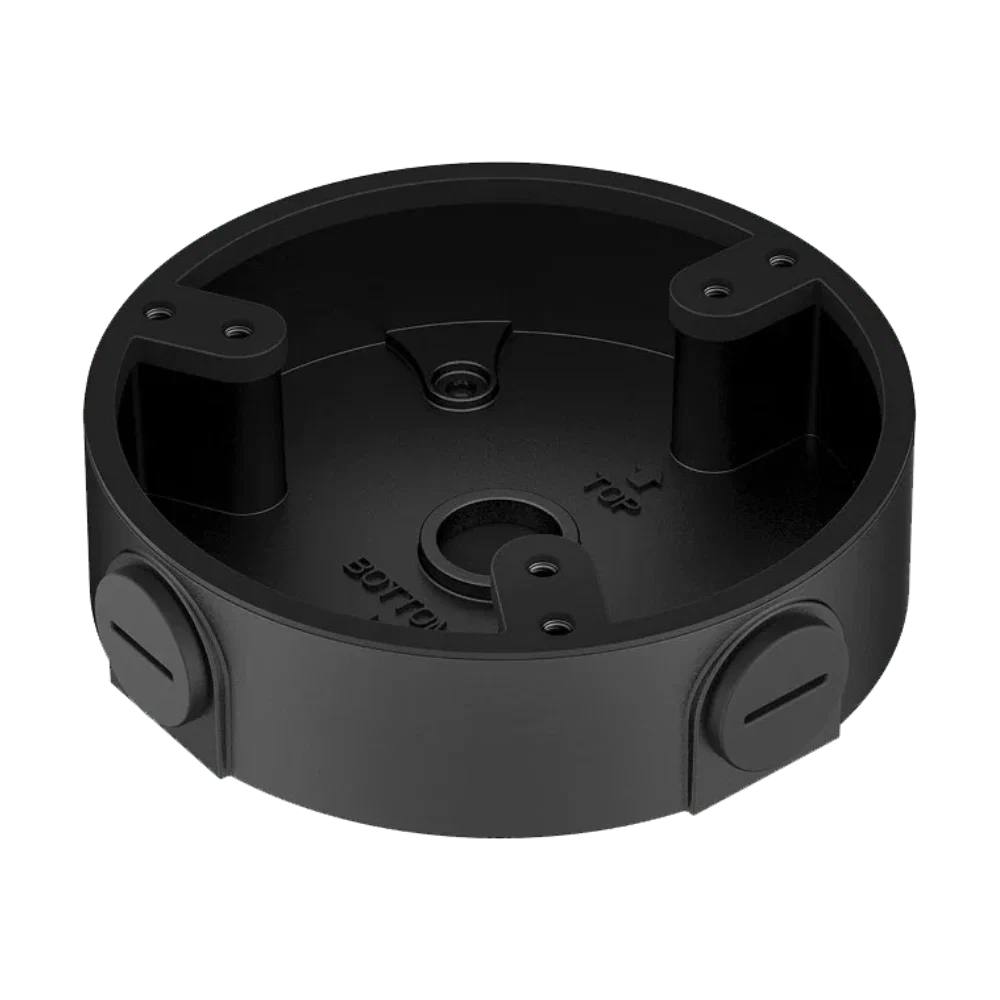

• White or black to match — Pick the finish that disappears against your building — white for render and light eaves, black for dark Colorbond and stained timber.

Where It Fits

Use it wherever a Dahua camera needs a weatherproof termination point and the smaller boxes are undersized for the base. Rated to 1 kg and −40 °C to +60 °C, which covers turret, dome and fixed-lens bodies comfortably.

Specifications

Assurance

• 3-Year Australian Warranty
• Genuine Dahua stock, supplied and supported locally
• Australian-based technical support before and after purchase
