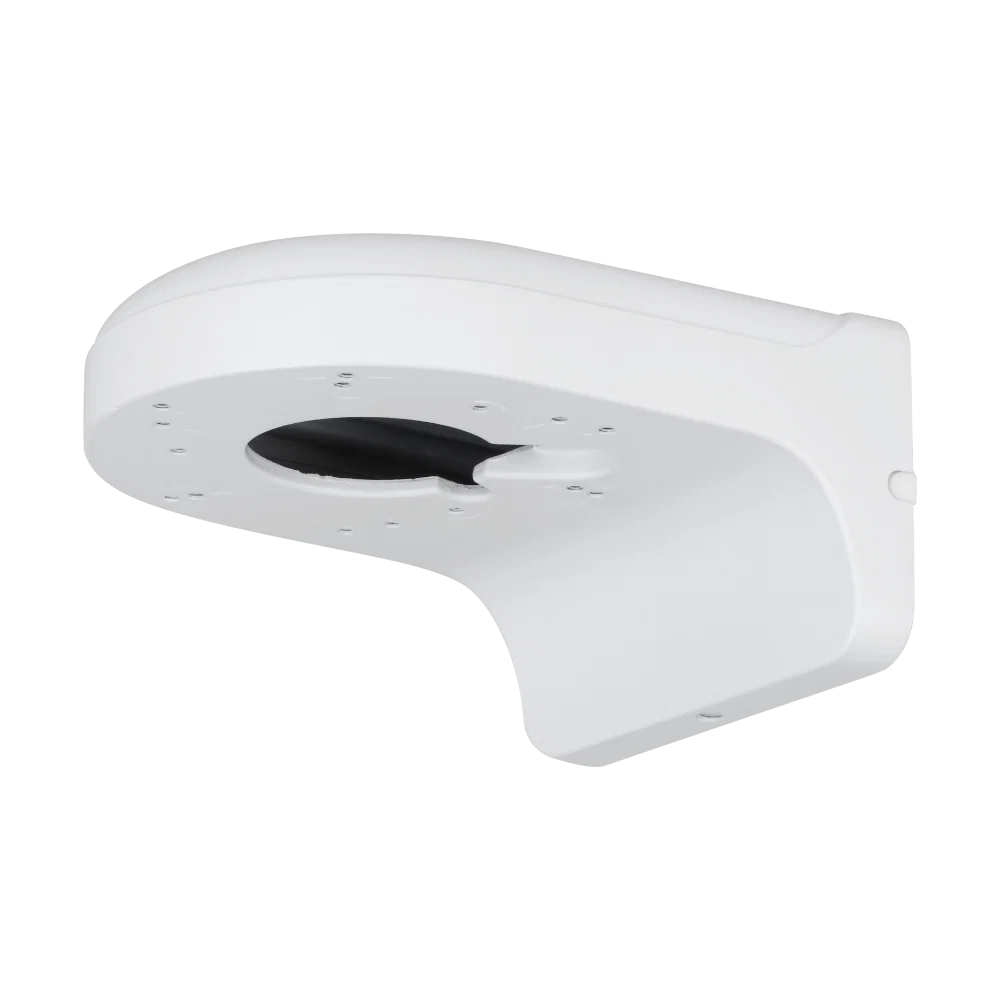

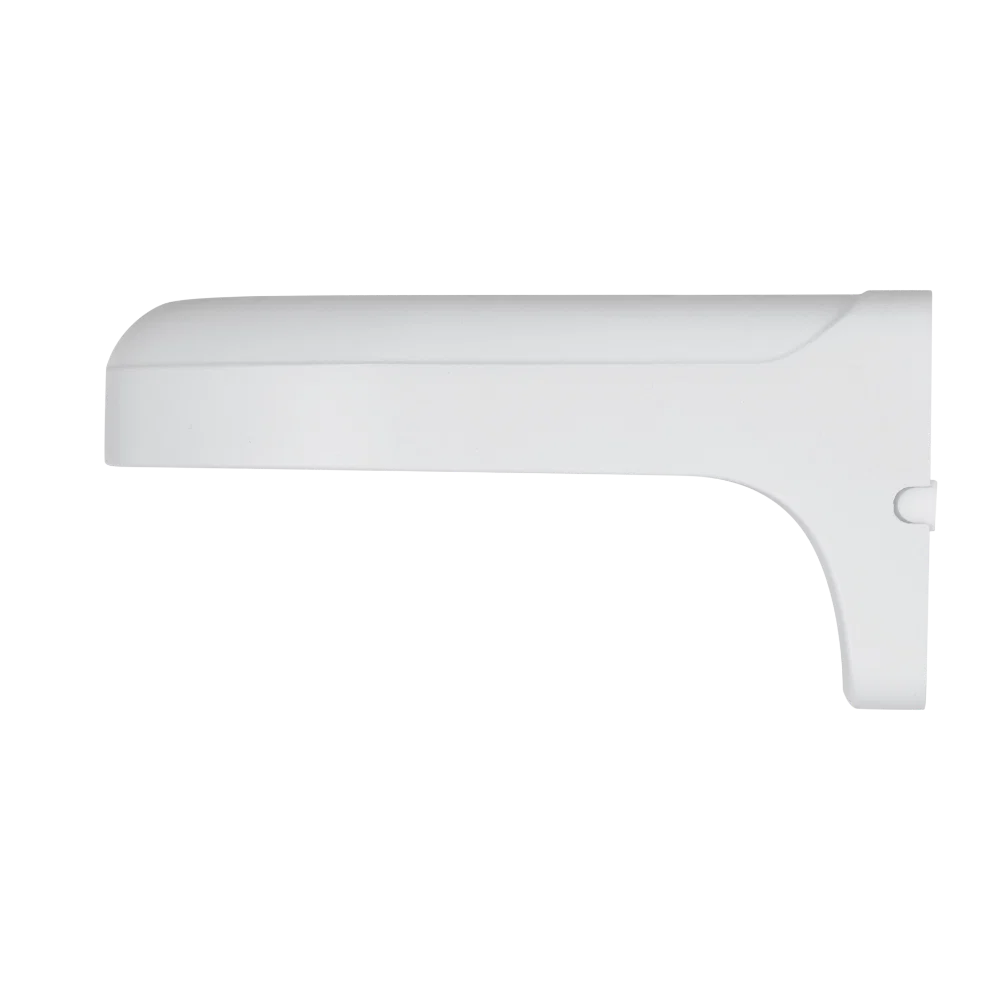

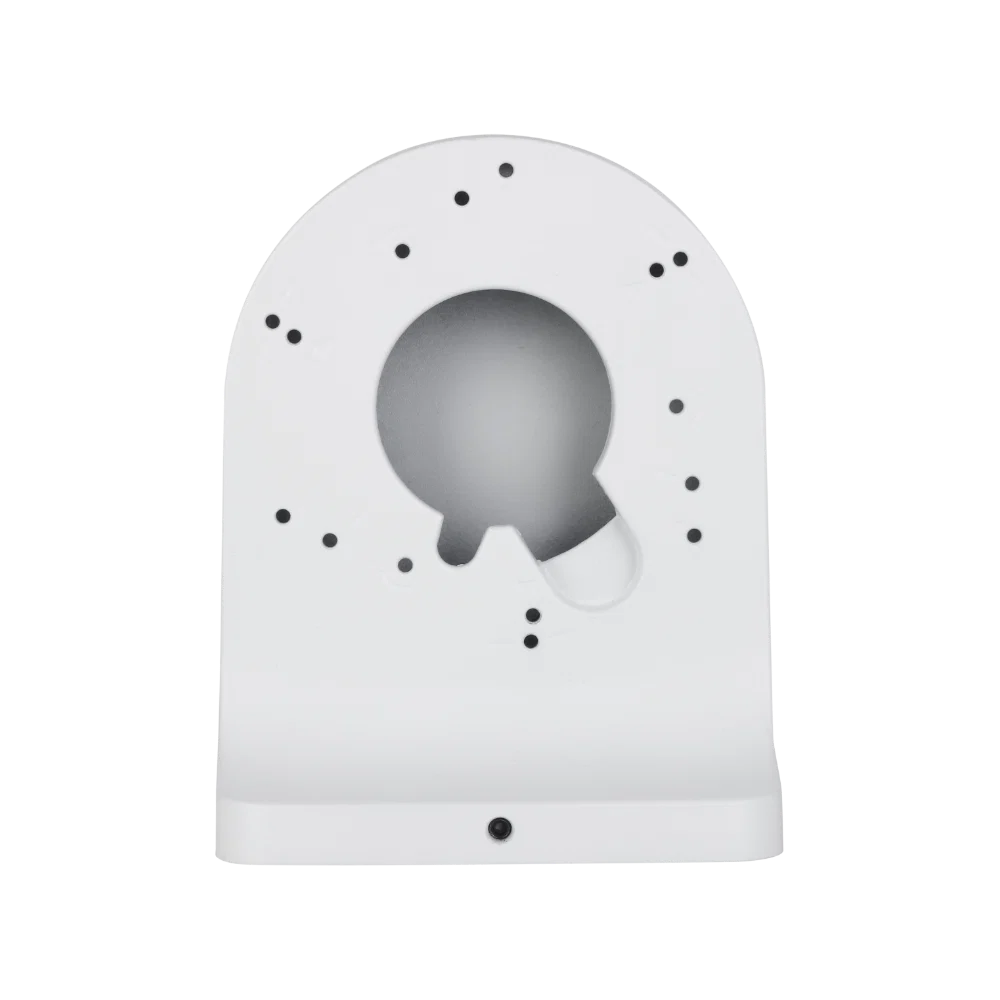

Dahua DH-PFB2203W — Wall Mount Bracket with Integrated Junction Box

The PFB2203W is a wall bracket and junction box in one casting: the camera mounts on the face, the cabling terminates inside the body, and nothing runs down the wall exposed. It is aluminium alloy, rated IP66, and measures 160 × 122 × 76 mm at 0.49 kg, carrying cameras up to 1 kg. A G1/2" pipe thread means it can take pendant hardware as well as sit flat. Available in white or black and rated −40 °C to +60 °C for permanent outdoor mounting.

Key Details

• Bracket and junction box in one — Connections terminate inside the bracket body rather than in a separate box, so the install is tidier and there is less to weatherproof.
• IP66 rated — Sealed against dust and heavy rain, it is happy on fully exposed walls or under eaves without any additional protection.
• Aluminium alloy, 1 kg rated — A 0.49 kg alloy casting that holds cameras up to 1 kg steady, so wind does not translate into shake in the recorded image.

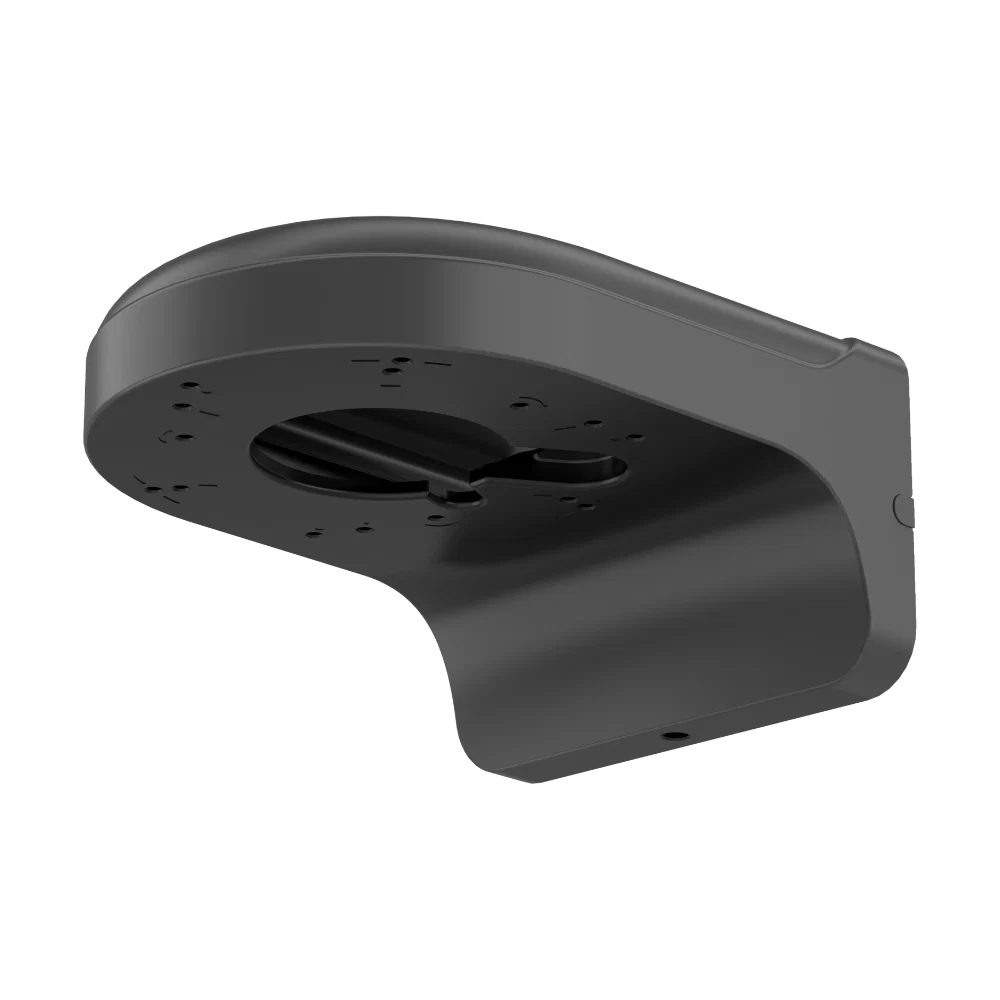

• G1/2" thread and two finishes — The G1/2" pipe thread accepts pendant hardware, while white or black lets the bracket blend into render or dark cladding.

Where It Fits

The bracket for wall-mounting a Dahua camera where the cable has to be enclosed at the camera end and you would rather not fit a separate box. Rated −40 °C to +60 °C, so it stays put in any Australian climate.

Specifications

Assurance

• 3-Year Australian Warranty
• Genuine Dahua stock, supplied and supported locally
• Australian-based technical support before and after purchase
