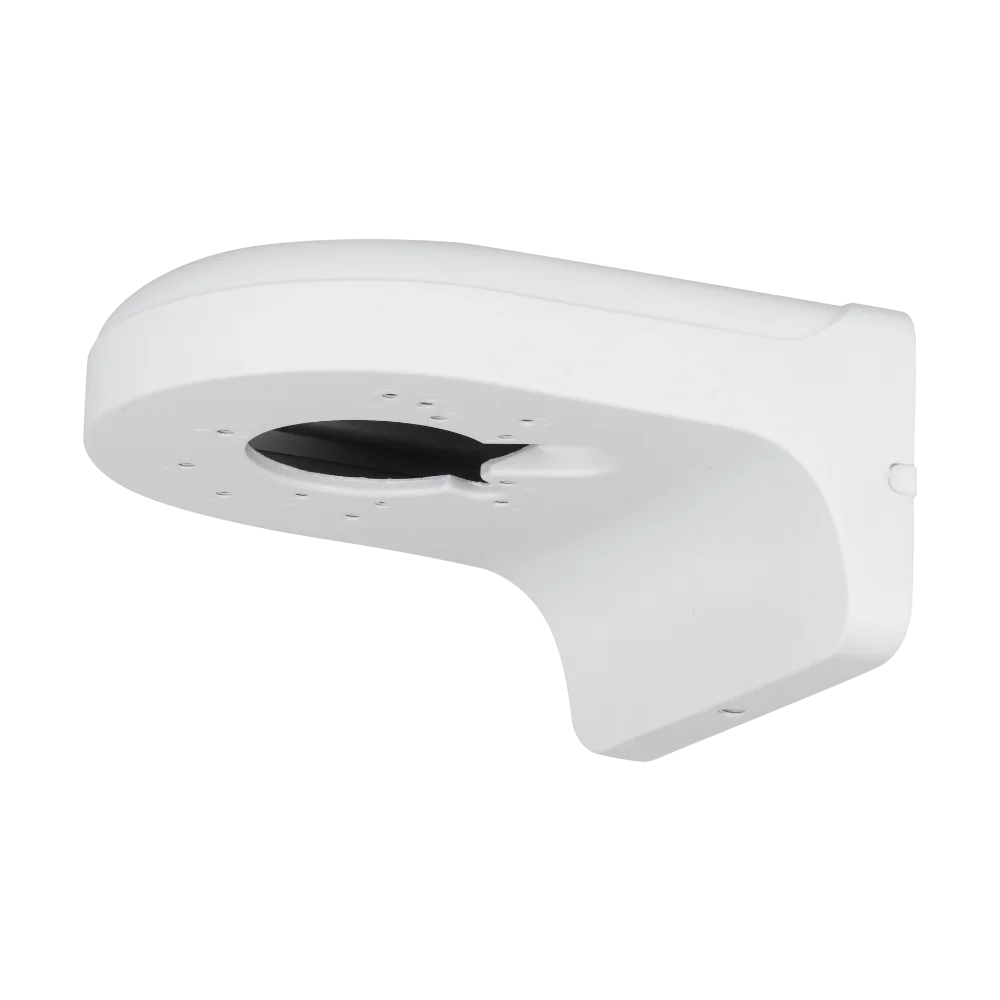

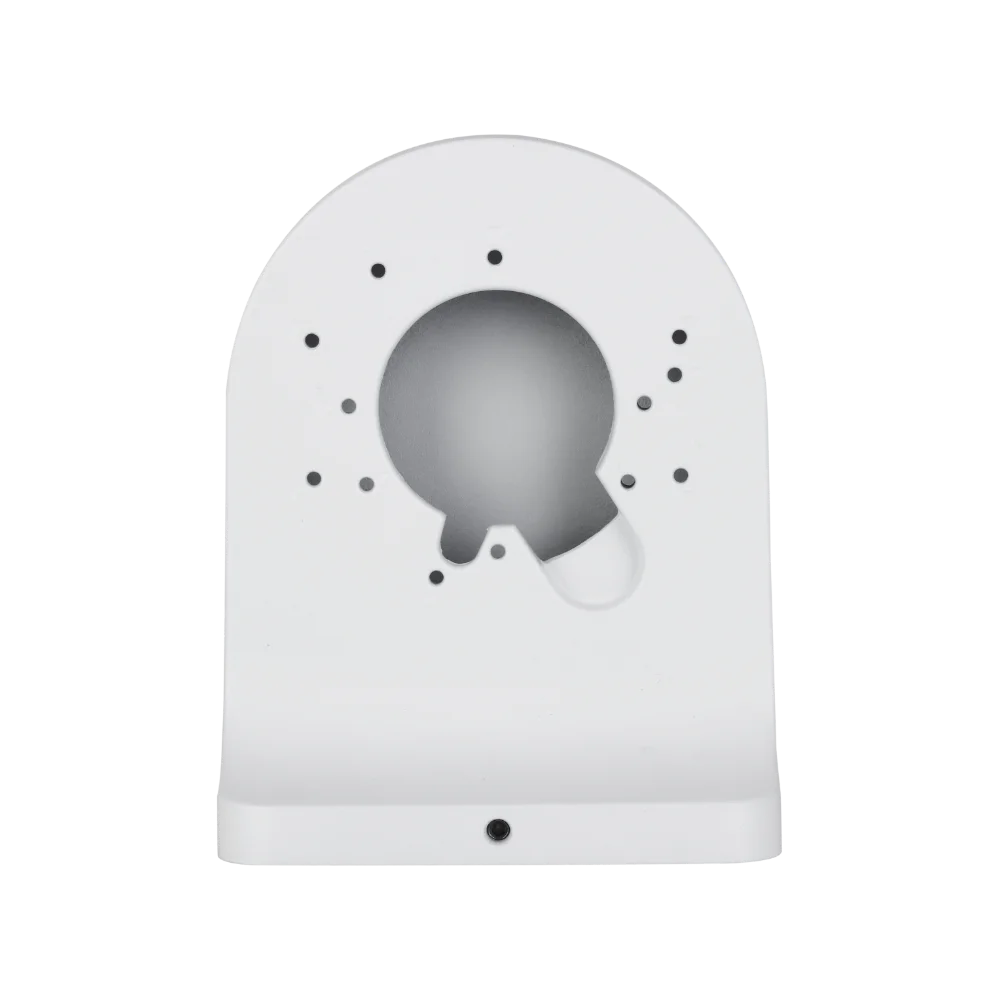

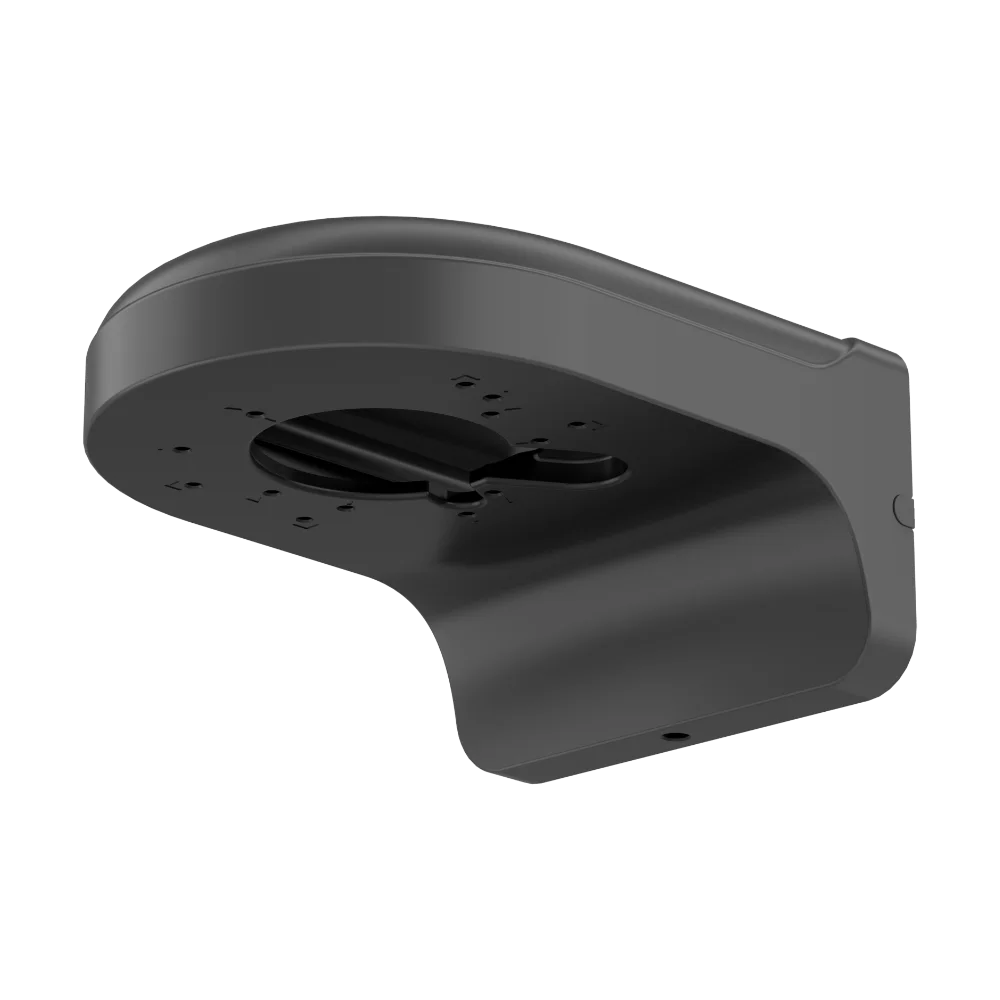

Dahua DH-PFB2204W — Wall Mount Bracket

The PFB2204W is Dahua's wall bracket for cameras that need standing off the surface — around eaves, over doorways, along fence lines — built from aluminium alloy on an SGCC steel base rather than a single pressing. It measures 162 × 129.4 × 80 mm, weighs 0.49 kg, and carries cameras up to 1 kg. The operating range runs from −40 °C to +60 °C, so the bracket outlasts the weather in any Australian climate, and it is finished in Dahua white to match the camera body it holds.

Key Details

• Alloy body on a steel base — Aluminium alloy paired with an SGCC steel base plate gives the bracket rigidity right at the wall, where most of the leverage lands.
• Rated to 1 kg — Holds any camera up to 1 kg without flex, which covers Dahua's turret, dome and compact fixed-lens bodies comfortably.
• Compact 162 mm profile — At 162 × 129.4 × 80 mm it stands the camera clear of the wall without turning into an obvious piece of hardware on the facade.
• Built for outdoor exposure — Rated −40 °C to +60 °C at 0.49 kg, and finished in Dahua white so it is made to stay on the building rather than be replaced.

Where It Fits

Choose it when a camera needs to sit off a wall or under an eave and the load stays under 1 kg. For heavier cameras or considerably more reach, step up to one of the longer stainless steel arms in the range.

Specifications

Assurance

• 3-Year Australian Warranty
• Genuine Dahua stock, supplied and supported locally
• Australian-based technical support before and after purchase
