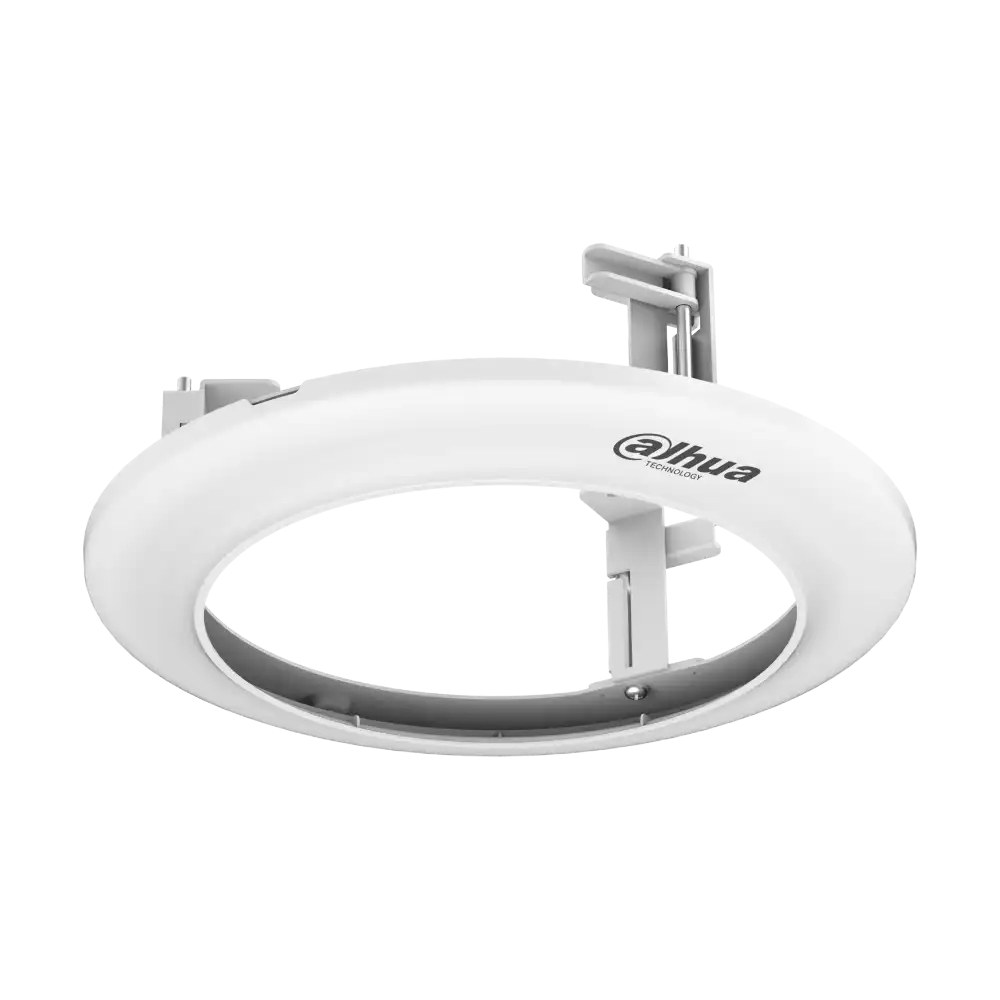

Dahua DH-PFB5310C — In-Ceiling Mount Bracket

The PFB5310C recesses a camera into a ceiling rather than hanging it below one, which is what you want in a finished retail space, a foyer or an office fit-out where surface hardware looks wrong. It sets into a Ø238 mm opening, occupies 78 mm of depth above the ceiling line, and carries up to 3 kg — a considerably higher rating than the wall brackets in Dahua's range. It is built from SECC steel and polycarbonate, finished in white, and weighs only 0.35 kg to lift into place.

Key Details

• Recessed, flush appearance — The camera drops into the ceiling instead of hanging off it, leaving a clean plane in spaces where visible brackets are unwelcome.
• 3 kg load rating — Rated to 3 kg, well above the 1 kg wall brackets in the range, so heavier dome bodies are comfortably within scope.
• Ø238 × 78 mm footprint — A Ø238 mm cut-out and 78 mm of depth above the ceiling line — worth checking your plenum clearance before you cut.
• SECC steel and polycarbonate — A steel frame carries the load while the polycarbonate trim keeps the visible ring neat and clean in white.

Where It Fits

For ceilings in shops, offices and foyers where the install should be discreet and there is room above the plane to work with. Rated −40 °C to +60 °C and light at 0.35 kg, so a single installer can fit it.

Specifications

Assurance

• 3-Year Australian Warranty
• Genuine Dahua stock, supplied and supported locally
• Australian-based technical support before and after purchase
