Dahua DH-PFB203W — Wall Mount Bracket for Turret & Mini-Dome Cameras

The PFB203W is Dahua's standard wall bracket for turret and mini-dome cameras, and the one most installs end up on. The body is aluminium over an SECC galvanised-steel base plate, 160 × 122 × 76 mm at 0.5 kg, rated to carry 1 kg. Cable runs through an internal channel and out through a rubber-gasketed wall entry, so nothing is left exposed between the bracket and the building. It ships with the M4 screws, self-tappers, anchors and hex wrench needed to fit it.

Key Details

• Fits the HDW and HDBW ranges — Takes Dahua's circular turret and mini-dome bases across TiOC 3.0, WizSense, Lite 2-Series, 5-Series Pro AI and the HDCVI HAC equivalents.
• Sealed internal cable channel — Cable runs inside the bracket and through a rubber-gasketed wall entry, leaving no join exposed to weather or tampering.
• Aluminium on a galvanised base — An aluminium body over an SECC galvanised-steel base plate, carrying up to 1 kg and rated −40 °C to +60 °C.
• Everything needed to fit it — Ships with M4 machine screws, ST4 self-tappers, wall anchors, a hex wrench and an installation sheet for brick, render or Colorbond.

Where It Fits

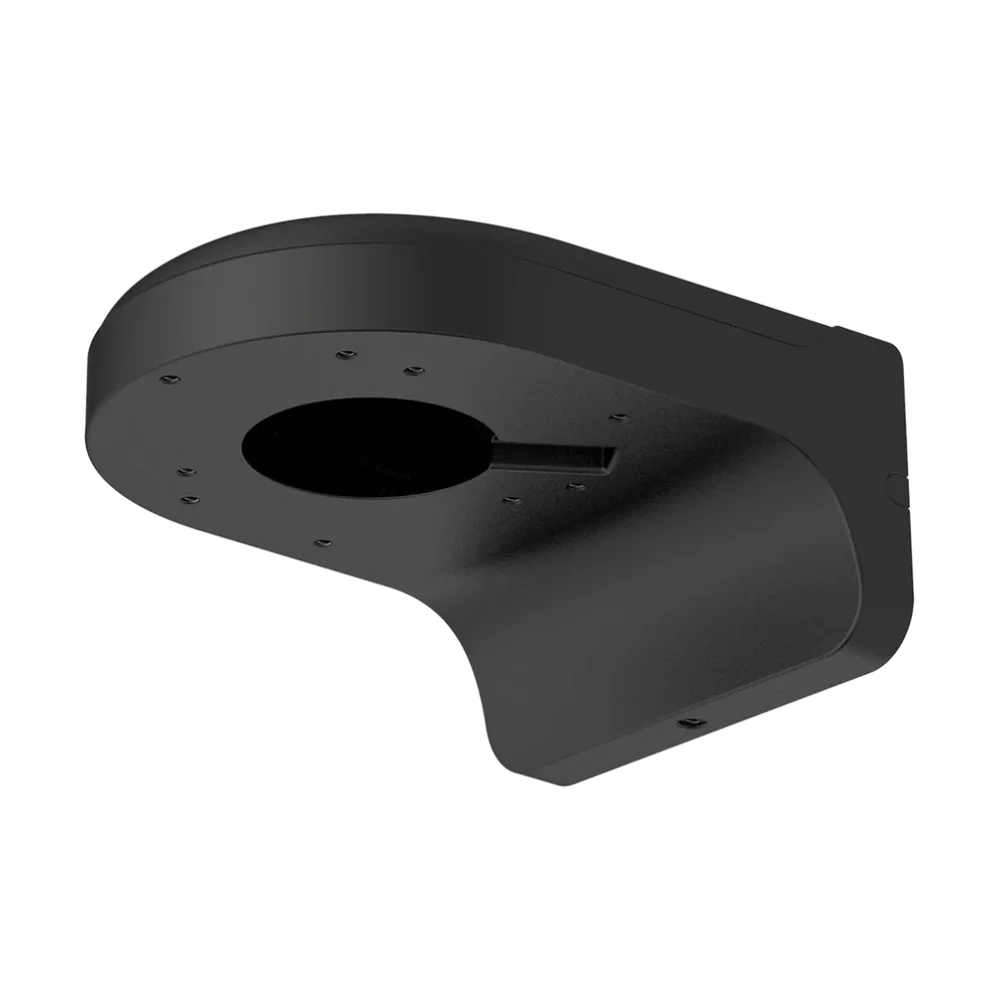

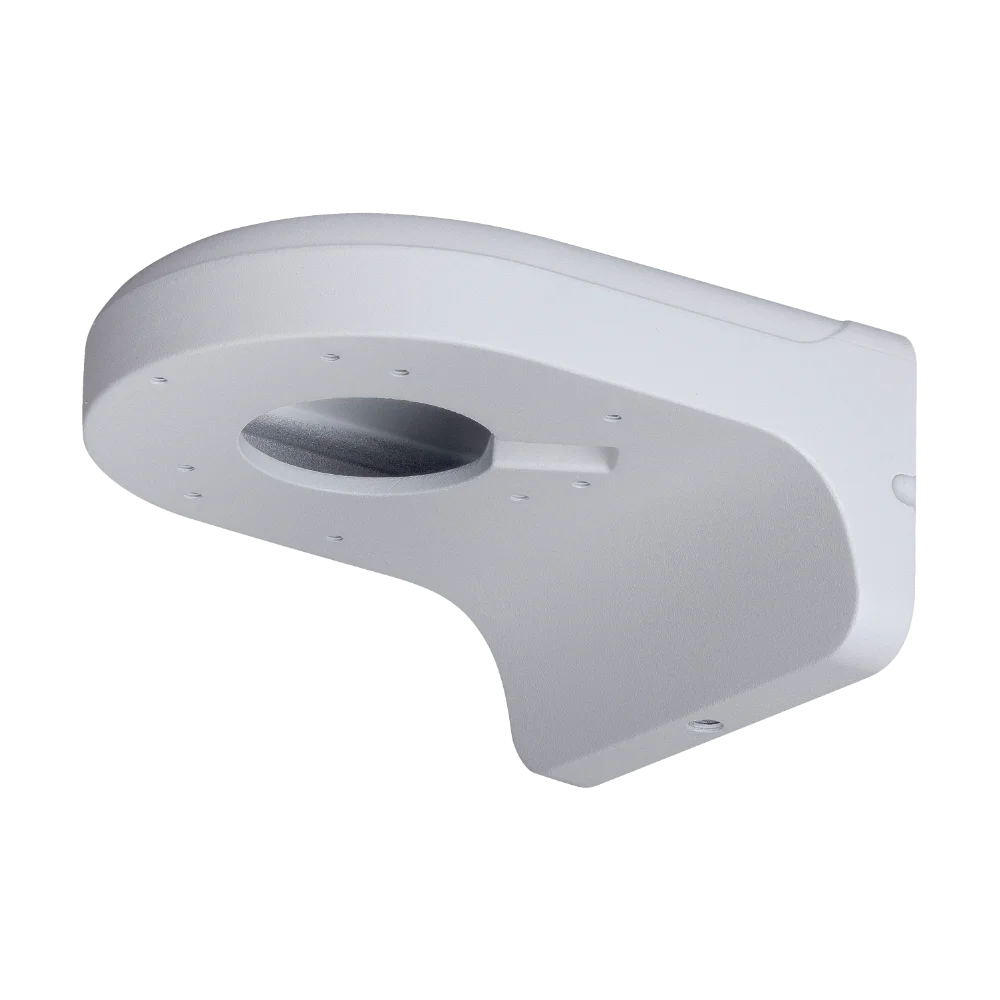

The default wall bracket for a Dahua turret or mini-dome, in white or black. HFW bullet cameras and full-size PTZs need different hardware, and camera bases over 122 mm will not seat on it.

Dahua PFB203W · Camera Compatibility (Australian Market Models)

DH-AC-PFB203W · Full Specifications (White & Black)
