Description
8 MPLensMotorised vari-focal
Resolution8 MP · 4K
AI EngineWizSense
Power12 VDC / PoE
🛡 3-YEAR AU WARRANTY
🚚 FAST AU-WIDE SHIPPING
🎧 AU TECH SUPPORT

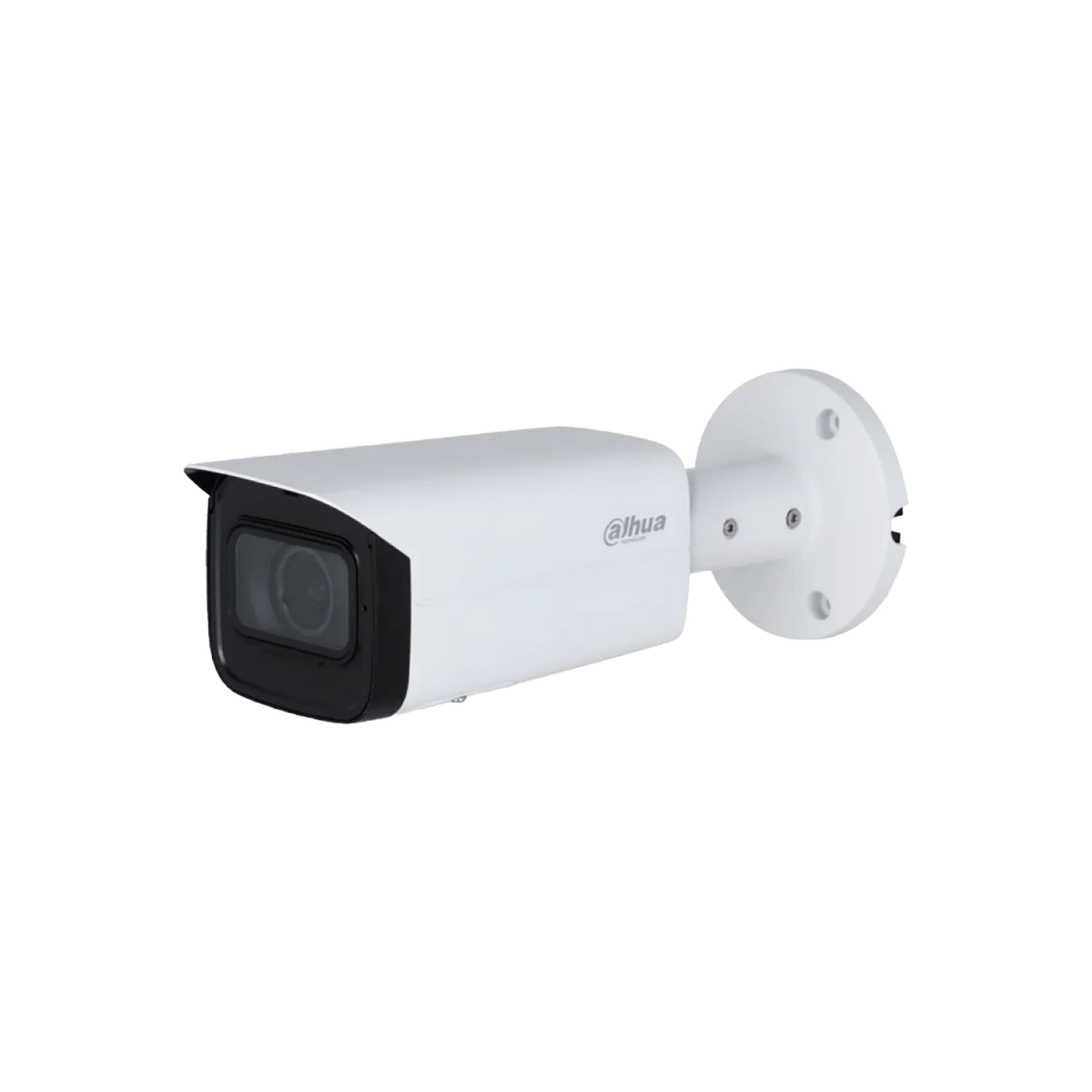

Dahua DH-IPC-HFW3866TP-ZAS-AUS — 8MP 4K Motorised Vari-Focal Bullet, 60m IR
A straightforward, well-priced 4K workhorse. There is no warm light and no siren here — this camera puts its budget into the things that matter for evidence: a 4K sensor, a 2.7-13.5 mm motorised lens with 5x optical reach, and four infrared LEDs pushing to 60 metres. Dahua rates it at 289.7 metres detection at full telephoto, which makes it a genuinely long-range option for the money.
Core Technology
- 4K at 3840 x 2160 — Full ultra-high-definition recording at 25/30 fps, giving you the detail to crop into archived footage and still identify what you are looking at.
- 2.7-13.5 mm Motorised Lens — Remote zoom and focus from 109 degrees wide down to 30 degrees tele, so one camera adapts to whatever the site turns out to need.
- 289 m Detection at Tele — Published DORI figures of 289.7 m detect and 57.9 m recognise at 13.5 mm put long approaches genuinely within reach.
- 60 m Infrared — Four IR LEDs with Smart Illumination, which modulates output so near subjects are not blown out while far ones stay lit.
- WizSense AI with Quick Pick — Human and vehicle classification on tripwire and intrusion, with Quick Pick search on a compatible AI NVR.
- Electronic Image Stabilisation — Steadies the image on mounts exposed to wind — important once you are working at the long end of the zoom.
Where It Fits
The value pick for long-range 4K coverage where deterrence features are not required: fence lines, driveways, paddock approaches, storage yards and building perimeters.
DH-IPC-HFW3866TP-ZAS-AUS · Full Specifications
| SKU | DH-IPC-HFW3866TP-ZAS-AUS (White only) |
| Camera Type | 8MP IR Vari-focal Bullet · WizSense 3 Series |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max Resolution | 3840 × 2160 (8MP / 4K) @ 25/30 fps |
| Lens Type | Motorised vari-focal · 2.7–13.5 mm · φ14 mount |
| Maximum Aperture | F1.5 |
| Field of View | H: 109°–30° · V: 56°–17° · D: 131°–35° |
| Close Focus Distance | 0.8 m |
| DORI — Wide (2.7 mm) | Detect 88.3 m · Observe 35.3 m · Recognise 17.7 m · Identify 8.8 m |
| DORI — Tele (13.5 mm) | Detect 289.7 m · Observe 115.7 m · Recognise 57.9 m · Identify 29.0 m |
| Min. Illumination | Colour: 0.007 lux @ F1.5 · B/W: 0.0007 lux · 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Dynamic Range | 120 dB True WDR |
| Day & Night | Auto (ICR) / Colour / B&W |
| Illuminators | 4 × IR LED · Up to 60 m (no warm light · no active deterrence) |
| Image Enhancement | WDR · 3D NR · HLC · BLC · Defog · AFSA · AI SSA · Smart Illumination · EIS · Image Rotation · Digital watermarking |
| Intelligent Video | WizSense AI · SMD 4.0 · IVS (Tripwire, Intrusion · human/vehicle classification) · Quick Pick (with AI NVR) · Smart Search · AI SSA |
| Active Deterrence | Not included — silent IR surveillance camera |
| Video Compression | H.265 · H.264 · H.264H · H.264B · MJPEG (sub-stream) · Smart H.265+ / H.264+ · AI H.265 / AI H.264 |
| Streaming | 3 streams — Main 3840×2160 · Sub 1 704×576 · Sub 2 1920×1080 (Full HD) |
| Video Bitrate | H.264 / H.265: 3 kbps – 8,192 kbps |
| Audio | Built-in microphone · G.711a / G.711Mu / G.726 / G.723 / PCM compression |
| Audio I/O (ZAS only) | 1 audio in (RCA) · 1 audio out (RCA) |
| Alarm I/O (ZAS only) | 1 alarm in (5 mA, 3–5 V DC) · 1 alarm out (300 mA, 12 V DC) |
| IP Camera Protocol | ONVIF Profile S/G/T · CGI · P2P · Milestone · Genetec |
| Network Protocols | IPv4/v6 · HTTP/HTTPS · TCP/UDP · RTP/RTSP/RTCP/RTMP · SMTP · FTP/SFTP · DHCP · DDNS · UPnP · NTP · ICMP · IGMP · NFS · SAMBA · PPPoE · SNMP · 802.1x |
| Cyber Security | Trusted boot · Trusted execution · Trusted upgrade · HTTPS · 802.1x · IP/MAC filtering · X.509 import · syslog · video/firmware/config encryption · account lockout |
| Ethernet | RJ-45 (10/100BASE-T) |
| Edge Storage | MicroSD up to 256 GB · NAS · FTP / SFTP |
| Weatherproof Rating | IP67 |
| Vandal Resistance | IK10 (optional configuration) |
| Operating Temperature | −30 °C to +60 °C · < 95% RH |
| Storage Temperature | −40 °C to +60 °C |
| Power Source | 12 V DC / PoE (IEEE 802.3af) · ±30% wide voltage |
| Power Consumption | Basic 4 W (12 V DC) / 4.9 W (PoE) · Max 9.2 W (12 V DC) / 10.5 W (PoE) |
| Memory | ROM 128 MB · RAM 1 GB |
| Pan / Tilt / Rotation | Pan 0°–360° · Tilt 0°–90° · Rotation 0°–360° |
| Mobile App | DMSS · Smart PSS · DSS (iOS & Android) |
| Approvals | CE-LVD (EN 62368-1) · CE-EMC 2014/30/EU · FCC Part 15 Subpart B · UL/CUL 62368-1 |
| Housing | Metal · White only |
| Dimensions | 244.1 × 79.0 × 75.9 mm (L × W × H) |
| Weight | 820 g (net) · 1090 g (gross) |
| Warranty | 3-Year Australian Warranty |
Assurance
- 3-Year Australian Warranty
- Genuine Dahua stock, supplied and supported locally
- Australian-based technical support before and after purchase
