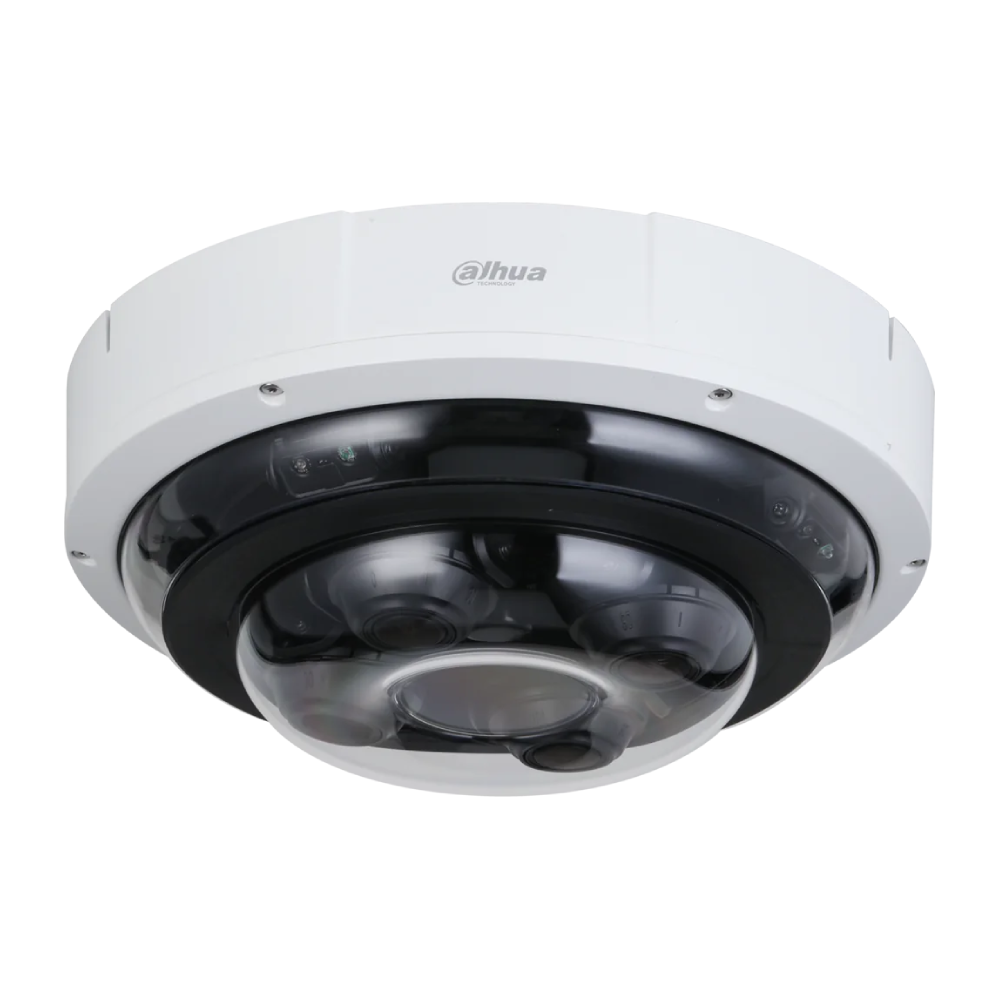

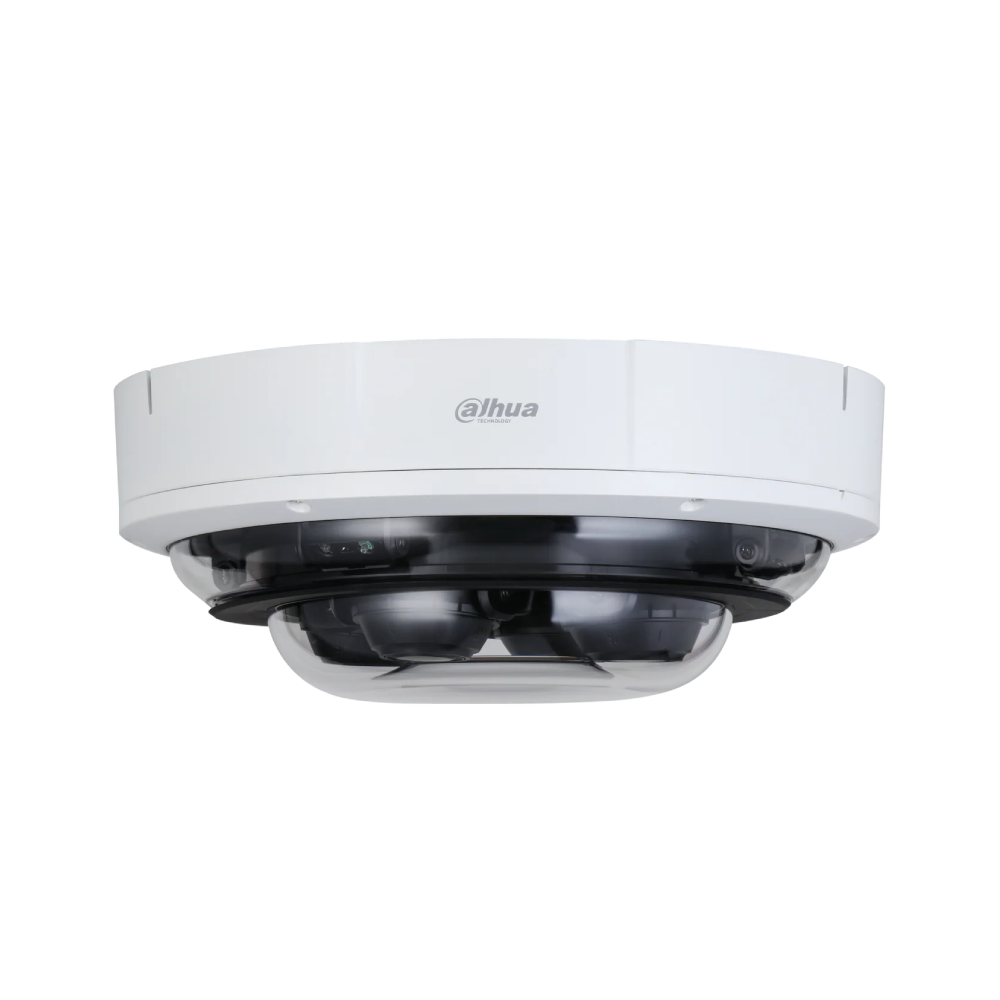

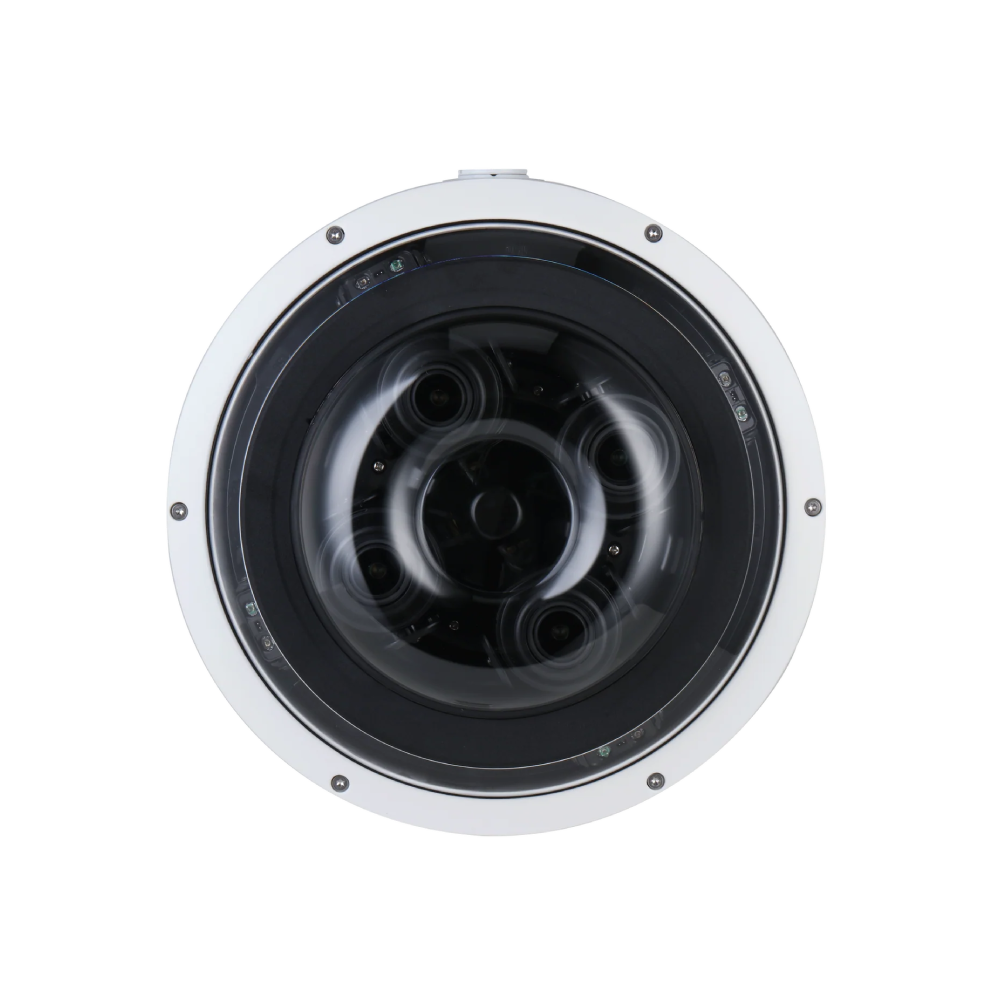

Dahua DH-IPC-PDBW82041-B360-S2 — 20MP (4x 5MP) 360-Degree Panoramic Vandal Dome

Four 5 MP Starlight sensors, stitched into a full 360-degree panorama totalling 20 megapixels. That is an enormous amount of image data from a single mounting point, and it is what allows one camera to replace an entire ring of fixed units around a concourse or intersection. WizMind 8, Dahua's top-tier AI platform, runs face recognition against an on-camera database, people counting, heat mapping, queue management and vehicle metadata across the whole circle.

Core Technology

• 20MP Across a Full 360 Degrees — Four 5 MP Starlight sensors stitched into a complete circle, with enough pixel density to identify faces anywhere in the ring.
• WizMind 8 Top-Tier AI — Face recognition with an on-camera database, people counting, heat mapping, queue management and vehicle metadata, all processed on the camera.
• Single Mounting Point — Replaces a ring of fixed cameras and their separate cable runs, brackets and switch ports with one unit.
• Triple-Stream H.265 Encoding — Efficient encoding per sensor keeps the bandwidth and storage cost of 20 MP manageable.
• ePoE Support — Extends power and data well beyond the standard Ethernet limit, useful given the central positions these cameras occupy.
• IP67 and IK10 Metal Build — Weather-sealed and vandal-rated for public concourses, car parks and open forecourts. PoE+ (802.3at) or 24 VAC.

Where It Fits

A high-end solution for open areas that need complete situational awareness from a central point — shopping centre atriums, transport hubs, stadium concourses, large car parks and public squares.

Multi-Sensor & Optics

Pro AI, Audio & Network

Power, Environment & Build

Assurance

• 3-Year Australian Warranty
• Genuine Dahua stock, supplied and supported locally
• Australian-based technical support before and after purchase
