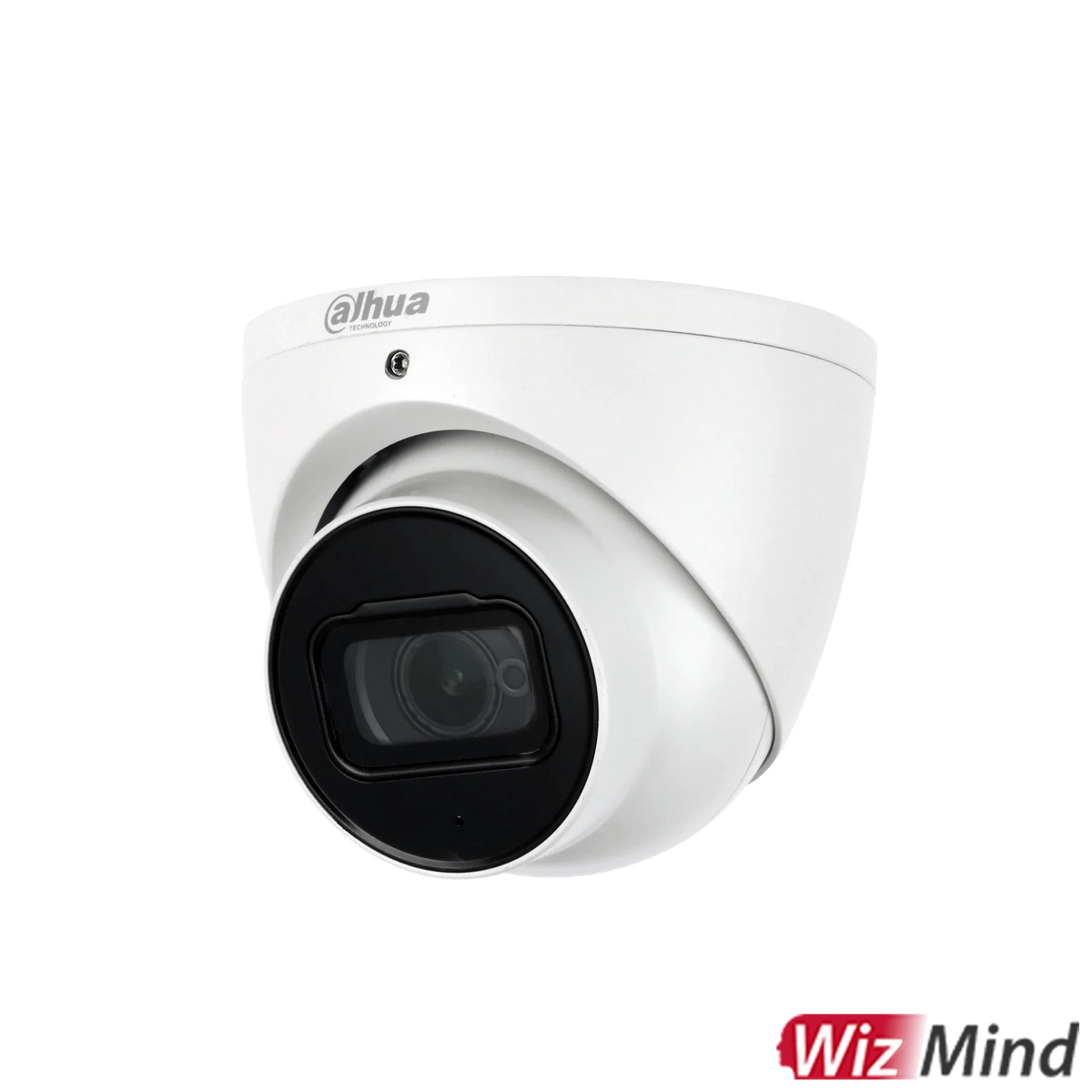

Dahua DH-IPC-HDW5541TMP-ASE-0280B 5MP WizMind IR Eyeball Camera

Built around Dahua's WizMind deep-learning platform, the Dahua DH-IPC-HDW5541TMP-ASE-0280B is a 5MP AI eyeball (turret) camera fitted with a wide-angle fixed 2.8mm lens, 50m IR for after-dark coverage and 120dB true WDR. Its on-board AI handles face detection, perimeter protection and human/vehicle classification while keeping false alarms to a minimum. A single PoE cable supplies both power and data, and full ONVIF support means it works seamlessly alongside any Dahua NVR.

Key Highlights

• Resolution: 5MP (2592×1944)
• Lens: 2.8mm fixed
• Night Vision: IR up to 50m
• AI Engine: WizMind deep learning
• Analytics: Face & perimeter
• Weatherproof: IP67

WizMind Deep-Learning AI

The camera runs its AI directly on-board, providing face detection, perimeter protection (tripwire and intrusion) and human/vehicle classification. By screening out animals, weather and other non-events, it keeps notifications accurate and false alarms rare.

5MP Clarity with 50m IR

The 5MP sensor records sharp, detailed footage, while smart IR reaching up to 50m illuminates the scene after dark without over-exposing nearby subjects — a strong fit for entryways, driveways and car parks.

True WDR for Tricky Light

With 120dB true WDR, the camera evens out harsh highlights and deep shadows within a single frame, so faces and number plates stay readable at glass doorways and shaded entrances.

Single-Cable PoE

Power and data travel over one Cat6 run. Thanks to ONVIF compatibility, footage records to any compatible Dahua NVR with full WizMind smart events intact.

Specifications — DH-IPC-HDW5541TMP-ASE-0280B

Resolution	5MP · 2592×1944
Sensor	1/2.7" progressive-scan CMOS
Lens	2.8mm fixed
Night Vision	Smart IR up to 50m
WDR	120dB true WDR
AI	WizMind · face detection, perimeter protection, human/vehicle classification
Protection	IP67
Power	PoE 802.3af / 12V DC
Interoperability	ONVIF · pairs with a Dahua NVR
Warranty (Australia)	3 years

Frequently Asked Questions

What does WizMind add over a standard camera?
WizMind is Dahua's deep-learning AI engine. Running on-camera, it provides face detection, perimeter protection and human/vehicle classification, meaning alerts concentrate on genuine threats and recorded footage is quicker to search through.

How far does the IR reach?
The smart IR covers up to 50m and self-adjusts its intensity, keeping close subjects from washing out while preserving detail further away.

Is the 2.8mm lens wide or zoomed?
The 2.8mm fixed lens is wide-angle, delivering a broad field of view best suited to entries, driveways and open spaces rather than long-range detail work.

How is it powered?
One Cat6 cable delivers both PoE (802.3af) power and data; alternatively, a 12V DC supply can be used.
