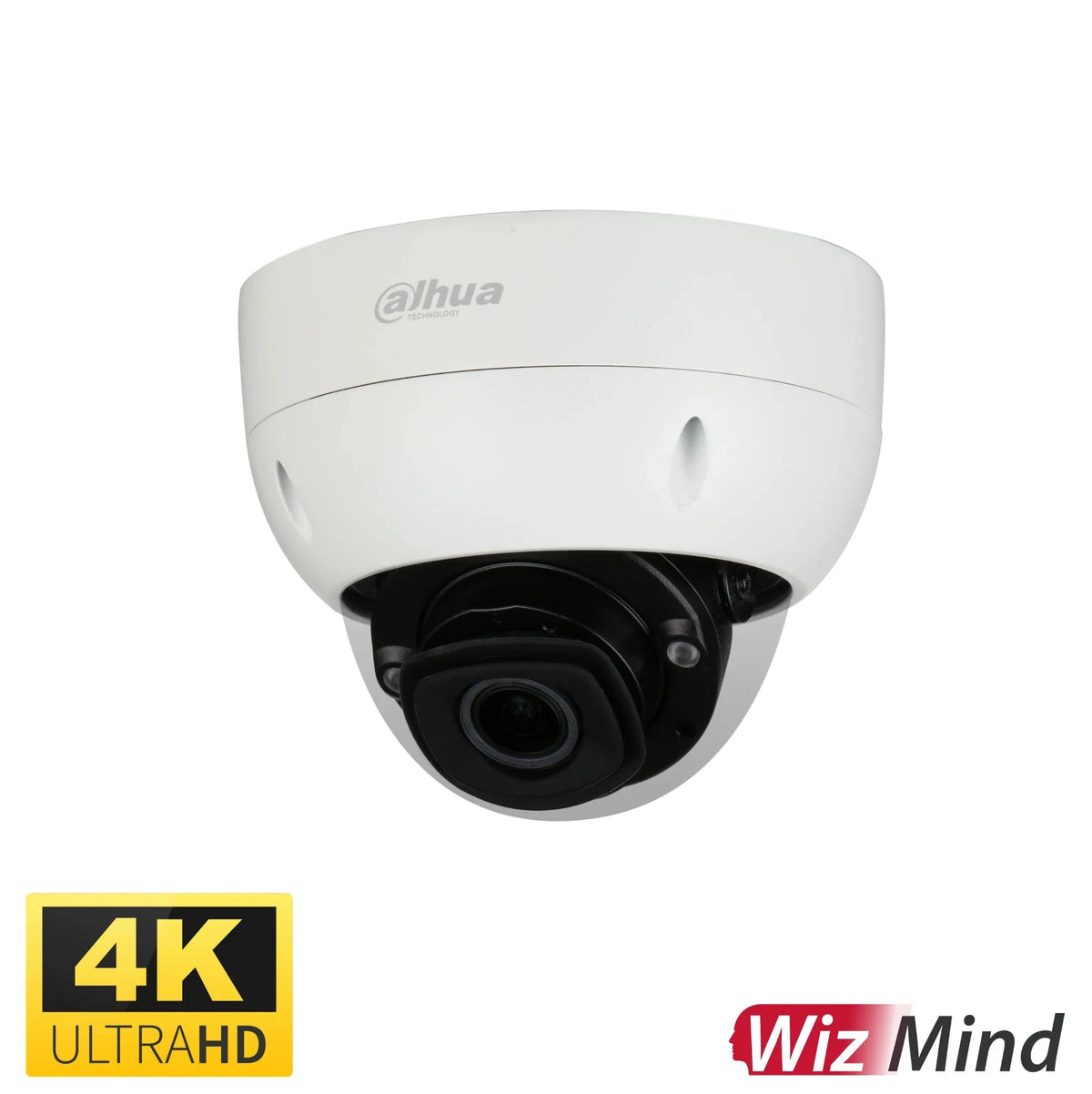

Dahua DH-IPC-HDBW5842HP-ZHE-2712F — 8MP 4K WizMind 5 Motorised Vandal Dome

The flagship dome in Dahua's WizMind 5 line: genuine 4K at full 25/30 frames per second, a large 1/2-inch Starlight+ sensor delivering 140 dB of dynamic range, and a motorised 2.7-12 mm lens. The analytics library is the deepest available short of WizMind 8 — face detection with attribute extraction, people counting, heat mapping, loitering, abandoned and missing object, people gathering and parking violation. TVS 6000 V lightning protection is built in.

Core Technology

• 4K at Full Frame Rate — 3840 x 2160 at 25/30 fps, without the frame-rate compromise that most 4K domes make at this resolution.
• 1/2-inch Starlight+ with 140 dB WDR — A large, sensitive sensor that holds detail in scenes with extreme contrast between bright and dark areas.
• Deep WizMind 5 IVS Library — Tripwire, intrusion, fast-moving, abandoned and missing object, loitering, parking violation and people gathering, plus face attribute extraction.
• TVS 6000 V Lightning Protection — Built-in surge protection for exposed poles, rooftops and rural sites where strikes are a real risk.
• ePoE and 24 VAC Power — Flexible power options including ePoE for long runs, drawing about 13 W under full load.
• 50 m Infrared, -40 to +60 Degrees — Long night reach in a metal IP67 and IK10 housing rated for the harshest Australian conditions.

Where It Fits

Specified for high-value and critical sites — corporate headquarters, government and utility facilities, data centres, transport hubs and any location where the recorded evidence has to stand up.

Camera & Image Sensor

Lens & Intelligence

Power, Environment & Build

Assurance

• 3-Year Australian Warranty
• Genuine Dahua stock, supplied and supported locally
• Australian-based technical support before and after purchase
