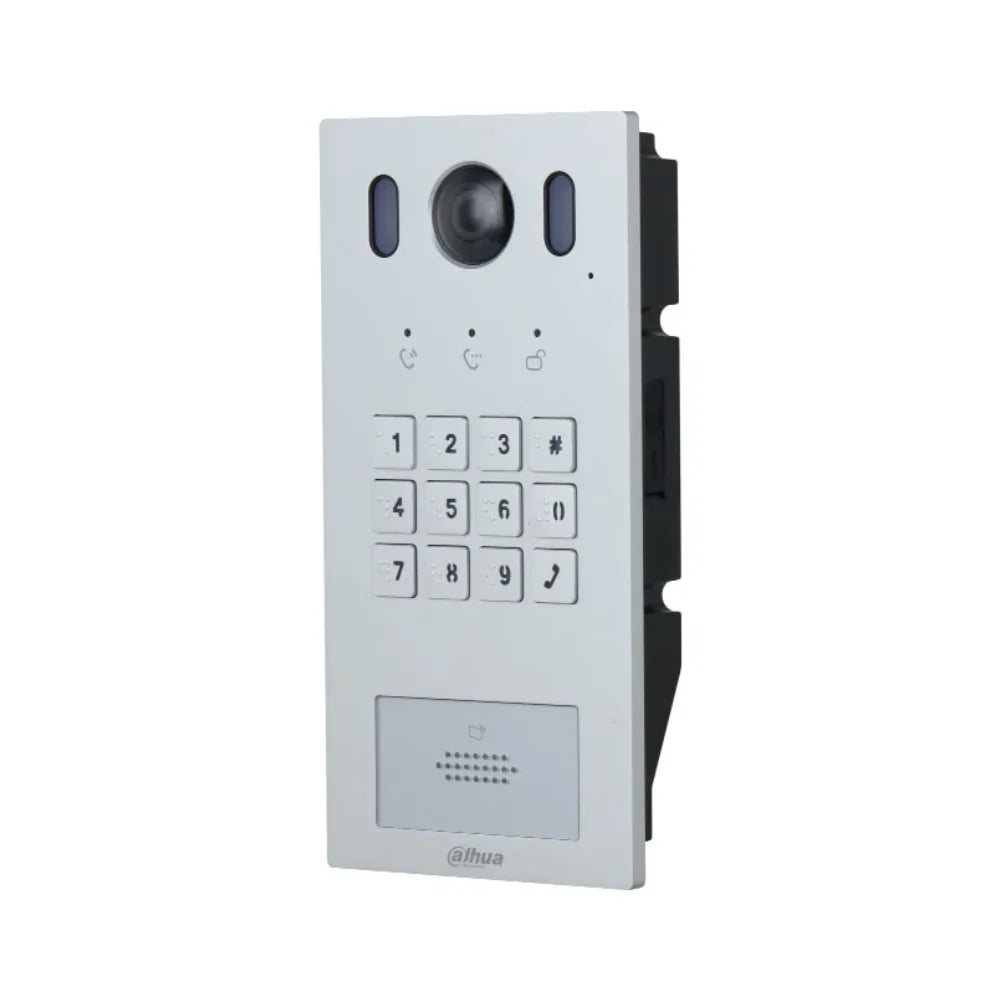

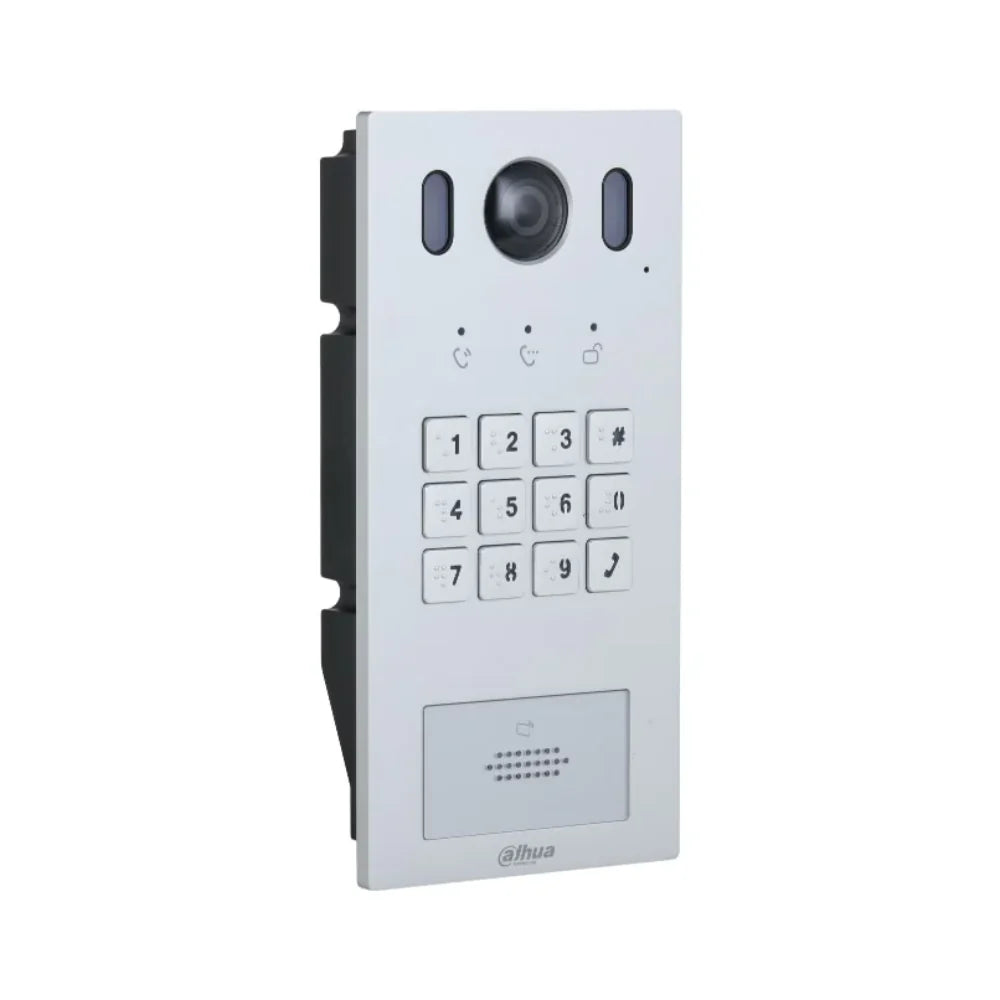

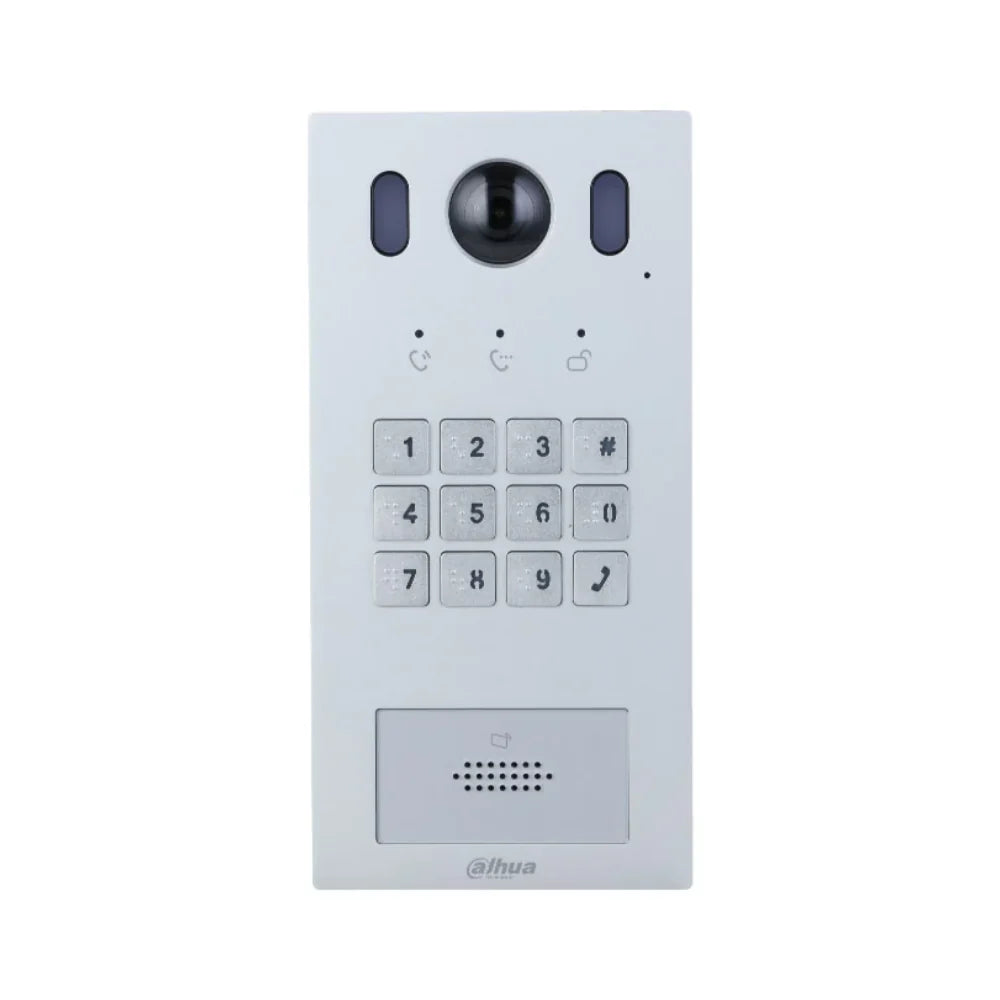

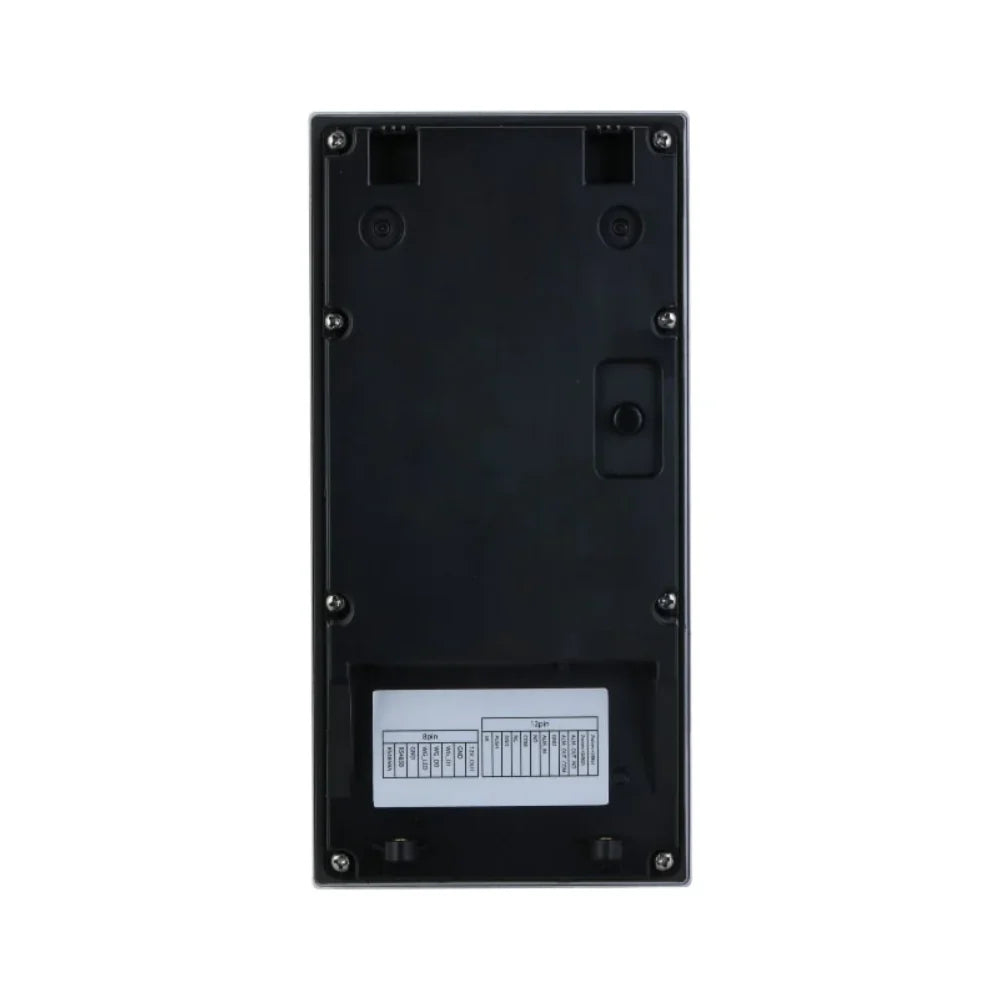

A Keypad Villa Station on Two-Wire or PoE

The VTO3222E-P offers a mechanical keypad, card and app entry, and runs on either two-wire IP at 48V or standard 802.3af/at PoE. Supporting both is unusual and genuinely useful — the same station suits a retrofit onto existing two-core cable and a new build with structured Ethernet.

Key Details

• Two-wire or PoE — Runs on either infrastructure, so the station does not have to be re-chosen when the cabling situation turns out differently from the plan.
• Mechanical keypad — Physical keys for PIN entry — faster and more reliable outdoors than a touch surface, especially in the wet.
• 5,000 users and 10,000 cards — Substantial capacity for a villa or small block, with password, card and app unlock.
• Wiegand integration — Connects to existing card readers or controllers, so it can join an access system already in place.
• Powers a lock — A 12VDC 600mA output drives an electric lock directly, often removing the need for a separate supply.
• Aluminium, IP65 and IK08 — Alloy body, weather sealed and impact rated, surface or flush mounted.

Where It Fits

A flexible choice for villas and small blocks, particularly where the cabling is unknown until the walls are opened. The Wiegand interface also makes it a practical way to add video intercom to an existing access control installation.

Specifications — DHI-VTO3222E-P

Assurance

• 3-Year Australian Warranty
• Genuine Dahua stock, supplied and supported locally
• Australian-based technical support before and after purchase
