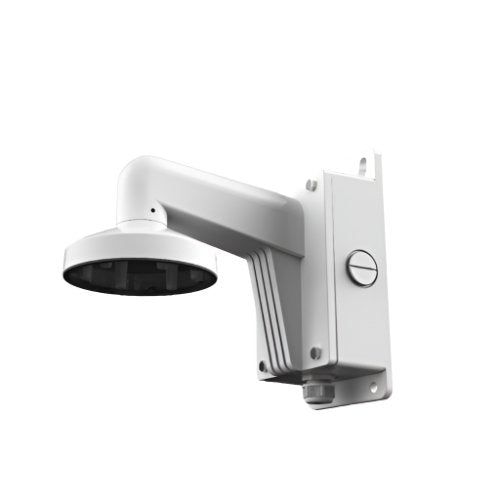

Hikvision DS-1273ZJ-130B-TRL — Wall Mount with Integrated Junction Box

The DS-1273ZJ-130B-TRL is a wall arm with a junction box built into the base, so the cable run terminates inside the bracket instead of down the wall behind the camera. It is aluminium alloy in Hikvision white, Ø132 × 242.9 × 288.5 mm and 1690 g — heavier than a plain arm precisely because there is an enclosure in it. On rendered walls, fascias and anywhere the install will be looked at, boxing the connections in is the difference between tidy and obviously retrofitted.

Key Details

• Junction box in the base — Power and network connections terminate inside the bracket, kept enclosed, weather-shielded and out of easy reach.
• Ø132 mm mounting collar — A 132 mm collar seats the camera base squarely — check your camera against it before ordering.
• Aluminium alloy, 1690 g — Solid alloy construction at 242.9 × 288.5 mm, rigid enough to hold the camera steady in an outdoor position.
• Hikvision white finish — Factory white matches the camera body so bracket, box and camera read as a single piece.

Where It Fits

Choose this when the camera goes on a wall and you want cabling enclosed at the bracket rather than run in surface conduit. If connections are handled elsewhere, the plain DS-1273ZJ-130-TRL arm is lighter and cheaper.

Specifications

Assurance

• 3-Year Australian Warranty
• Genuine Hikvision stock, supplied and supported locally
• Australian-based technical support before and after purchase
