Hikvision Ultra Series · 8MP · Smart Hybrid Light · DarkFighter S

4K Detail with a Remotely Adjustable Zoom

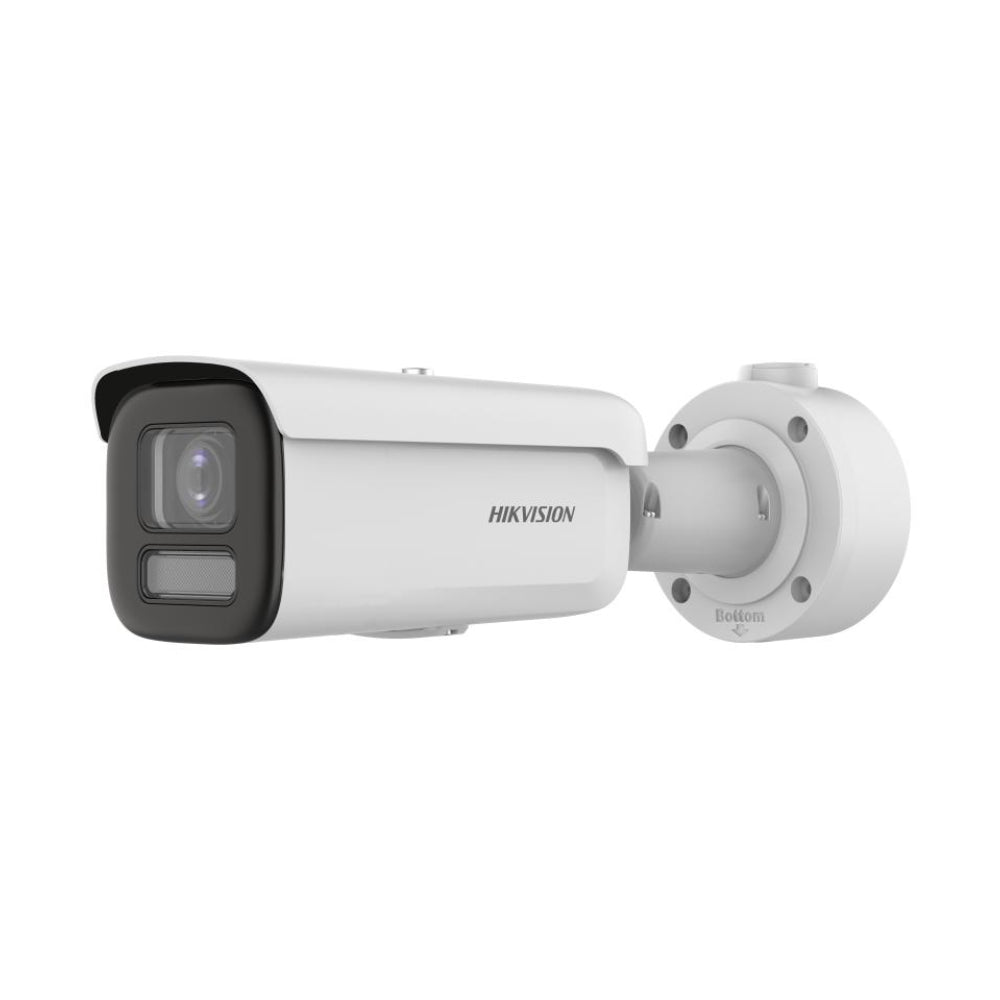

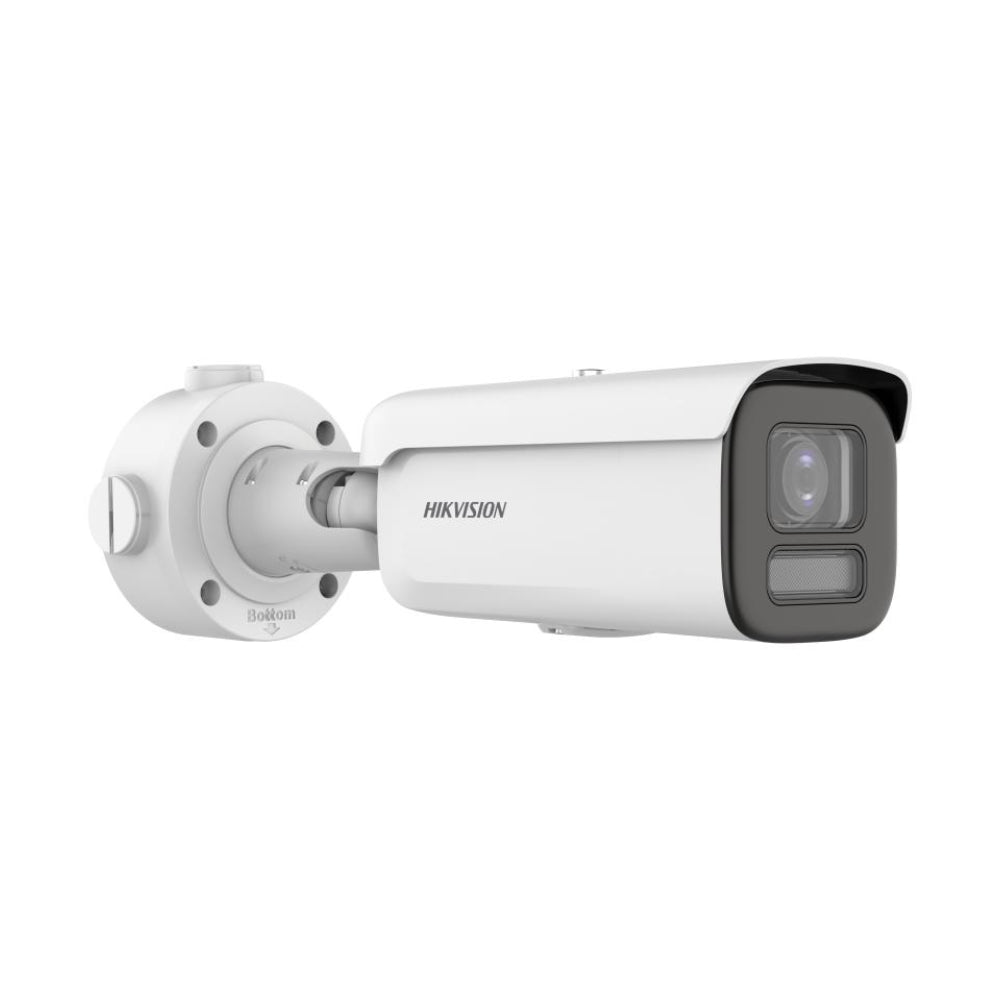

The Hikvision DS-2CD3686G2HT-LIZSY is an 8MP bullet camera with a motorised varifocal lens, suited to entrances, driveways, car parks, warehouses and perimeter runs where you may want a broad scene one day and a tighter, more detailed view the next. The 2.7–13.5 mm lens is adjusted remotely at commissioning time, and DarkFighter S imaging together with Smart Hybrid Light keeps footage usable as light levels shift.

• Resolution: 8MP (3840 × 2160)
• Lens: 2.7–13.5 mm motorised varifocal
• Night Lighting: IR + white light, up to 60 m
• Protection: IP67 · IK10 · NEMA 4X (-Y)

Why It Earns Its Place

Set the Framing After Mounting

Begin with a wide angle to take in the whole area, then remotely tighten the zoom so the pixels concentrate on a gate, doorway, traffic lane or other priority spot. Built-in autofocus takes the fiddly part out of final adjustment.

Alerts Worth Acting On

On-board deep-learning analytics can distinguish people and vehicles within supported motion and perimeter rules, which cuts down on false triggers caused by irrelevant movement.

Night Vision That Adapts

Smart Hybrid Light pairs infrared with white supplementary lighting. Run it discreetly on IR, keep full-colour detail under white light, or have the lighting change behaviour when an event fires — whichever suits the location.

Ready for Harsh Positions

The metal body stands up to weather and tampering alike, and the -Y variant adds NEMA 4X anti-corrosion protection for sites with moderate corrosion demands.

Key Specifications

Official model	DS-2CD3686G2HT-LIZSY (2.7–13.5 mm)
Image sensor	1/1.8-inch progressive scan CMOS
Maximum resolution	3840 × 2160 (8MP)
Lens and field of view	Motorised 2.7–13.5 mm; 112.3° to 41.2° horizontal
Minimum illumination	Colour: 0.0028 lux at F1.2; 0 lux with supplementary light
Supplementary light	Infrared and white light, up to 60 m
Wide dynamic range	130 dB WDR
Analytics	Human and vehicle classification; perimeter protection; face capture; people counting
Audio	1 line input and 1 line output; external microphone/speaker required
Alarm interfaces	2 inputs and 2 outputs
Local storage	microSD/microSDHC/microSDXC, up to 512 GB
Power	12 VDC or PoE+ (IEEE 802.3at)
Protection	IP67 weather resistance, IK10 impact resistance, NEMA 4X anti-corrosion (-Y)

Frequently Asked Questions

What does the 2.7–13.5 mm lens give me?

It allows the installer to pick anywhere between a wide overview and a closer, more detailed frame without swapping lenses — handy when the ideal viewing angle can't be confirmed until the camera is on the wall.

How does Smart Hybrid Light behave?

The camera carries both infrared and white light. Depending on the mode you choose, it can watch discreetly under IR, deliver colour detail with white light, or change its lighting response when a configured event is triggered.

Is there a built-in microphone or speaker?

No. This model offers line-level audio input and output for compatible external audio gear. If you want audio without adding hardware, look at a model with an integrated microphone or speaker.

What does the Y suffix indicate?

The Y version carries NEMA 4X anti-corrosion protection. Hikvision rates it for environments with moderate anti-corrosion requirements; for demanding coastal or industrial sites, the location and mounting hardware should still be evaluated.
