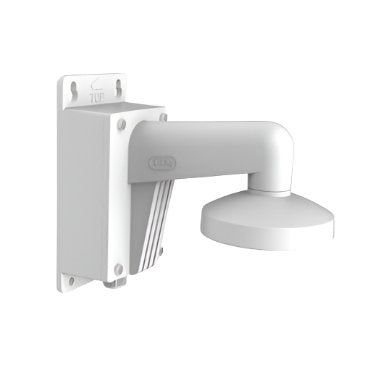

Hikvision DS-1473ZJ-135B — Wall Mount with Junction Box for 1753 / 2H46 / 2H66 / 2H86 Domes

The DS-1473ZJ-135B is the wall arm for Hikvision's 1753, 2H46, 2H66 and 2H86 domes in their non-pigtail versions, with a junction box integrated into the base. Aluminium alloy in Hikvision white, Ø 136 mm × 242.92 mm × 290 mm and 1475 g — twice the weight of the plain 135 arm, and that extra is the enclosure. Power and network land inside the bracket, which is both tidier to look at and harder for anyone to get at.

Key Details

• Matched to the non-pigtail domes — Listed for the 1753, 2H46, 2H66 and 2H86 non-pigtail models, so the camera base mates without adaptors.
• Integrated junction box — Connections terminate inside the bracket base — enclosed, weather-shielded and out of reach of casual tampering.
• Ø 136 mm collar, 290 mm deep — Ø 136 × 242.92 × 290 mm gives the dome a full seat and real stand-off from the wall.
• 1475 g of aluminium alloy — Alloy throughout in Hikvision white — rigid under load and finished to match the camera body.

Where It Fits

The one to buy when a 1753, 2H46, 2H66 or 2H86 dome goes on a visible wall and you want no surface conduit. Where cabling is handled elsewhere, the plain DS-1473ZJ-135 is lighter and cheaper.

Specifications

Assurance

• 3-Year Australian Warranty
• Genuine Hikvision stock, supplied and supported locally
• Australian-based technical support before and after purchase
