12MP Motorised Varifocal Dome Camera for Detailed Day and Night Surveillance

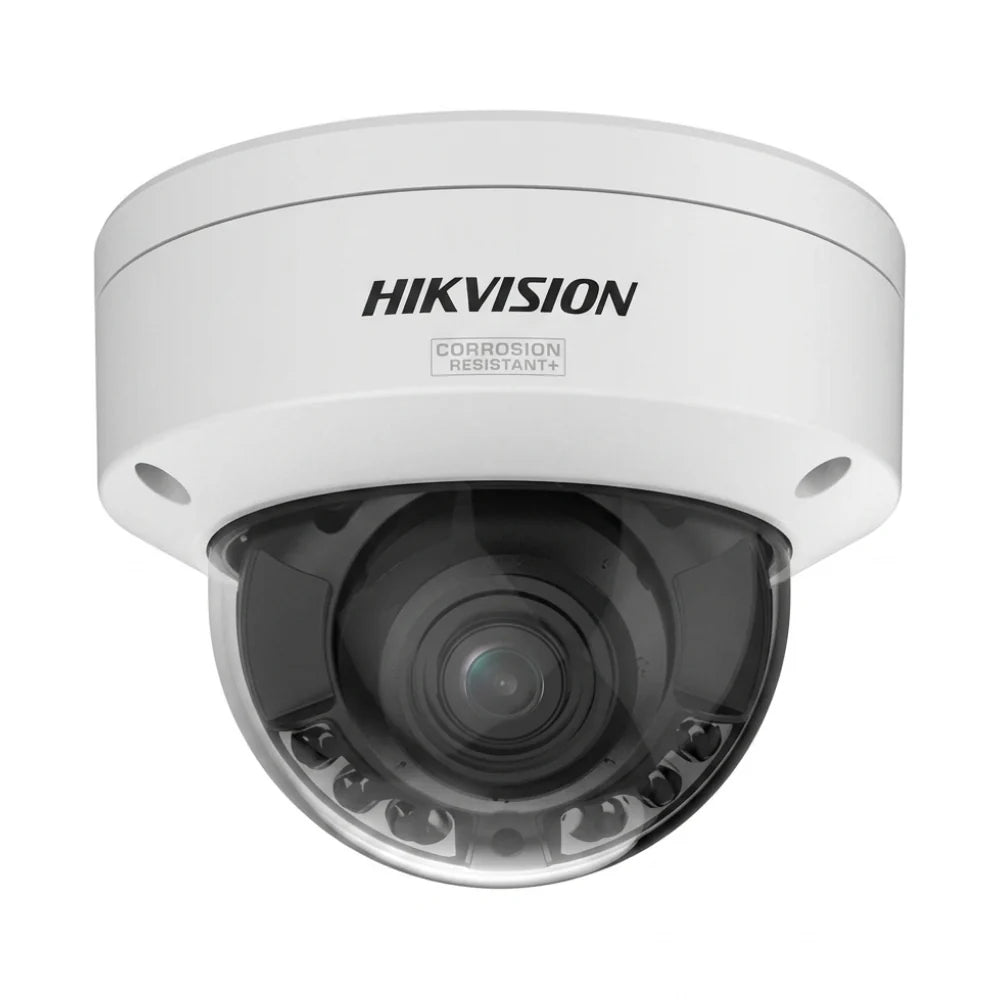

The Hikvision DS-2CD37C7G3T-LIZSU(Y) is a 12MP dome network camera aimed at high-detail monitoring of commercial, industrial and exposed outdoor locations. Built around a 1/1.8-inch sensor capturing up to 4608 × 2592 resolution, it pairs a motorised 2.7–13.5 mm varifocal lens — remotely adjustable during commissioning — with HIK AI-ISP processing, scene-adaptive WDR and Smart Hybrid Light, so usable image detail is preserved from bright daylight through to low-light and night-time scenes.

Key Specifications at a Glance

• Resolution / Sensor: 12MP / 1/1.8-inch CMOS
• Motorised Lens: 2.7–13.5 mm Varifocal
• Night Illumination: IR + White Light to 40 m
• Protection: IP67 / IK10 / NEMA 4X

High-Resolution Imaging Backed by Smarter Event Detection

The camera records up to 20 frames per second at its full 12MP resolution, and up to 25 fps at 4K and lower resolutions under Australian 50 Hz operation. Deep-learning person and vehicle classification keeps perimeter events focused on the targets that matter. Face capture, line crossing, intrusion, region entrance and region exiting functions are supported as well, subject to system configuration and compatible recording equipment.

HIK AI-ISP Low-Light Processing

Sophisticated image processing suppresses noise while retaining colour, sharpness and motion detail when the lighting turns difficult.

Smart Hybrid Light

Infrared and white supplementary lighting deliver three operating modes, with an illumination range rated at up to 40 metres.

Motorised Varifocal Coverage

The horizontal field of view adjusts from roughly 102° down to 44°, letting you trade broad scene coverage for tighter detail on entrances, loading areas and perimeter zones.

Dual-Microphone Audio

An arrayed dual-microphone with environmental noise filtering captures clear mono audio, and line-level audio input and output are provided too.

Moderate Anti-Corrosion Protection

The Y version includes NEMA 4X anti-corrosion protection for sites with moderate corrosion demands, such as areas exposed to salt-laden air or acid rain. Note that Hikvision classifies this model as moderate protection rather than its highest marine-grade category.

Local and Network Recording

Recording options include microSD cards up to 512 GB, NAS storage and Auto Network Replenishment for resilient storage designs.

Technical Specifications

Product Family	DS-2CD37C7G3T-LIZSU(Y)
Inventory SKU	DS-2CD37C7G3T-LIZSUY
Image Sensor	1/1.8-inch Progressive Scan CMOS
Maximum Resolution	4608 × 2592 at up to 20 fps
Australian 50 Hz Frame Rates	20 fps at 4608 × 2592; up to 25 fps at 3840 × 2160 and lower supported resolutions
Lens	2.7–13.5 mm motorised varifocal, DC iris, maximum F1.2 aperture
Field of View	Horizontal 102°–44°; vertical 54°–25°; diagonal 123°–51°
Minimum Illumination	Colour: 0.0008 lux at F1.2, AGC on; 0 lux with supplementary light
Supplementary Lighting	850 nm infrared and white light, up to 40 m
Wide Dynamic Range	130 dB WDR
Analytics	Person and vehicle classification, perimeter protection and face capture
Audio	Arrayed dual-microphone, environmental noise filtering, 1 line input and 1 line output
Alarm Interfaces	2 inputs and 2 outputs
Local Storage	microSD/microSDHC/microSDXC card, up to 512 GB
Network Compatibility	ONVIF Profiles S, T and G; ISAPI, SDK and ISUP
Power	12 VDC, maximum 16.2 W; PoE+ IEEE 802.3at Class 4, maximum 18 W
Protection	IP67 weather resistance, IK10 impact resistance and NEMA 4X anti-corrosion protection
Operating Conditions	−30°C to 60°C; humidity 95% or less, non-condensing
Dimensions / Weight	Ø 141 × 112 mm; approximately 850 g

Frequently Asked Questions

What does the Y version indicate?

The Y version adds NEMA 4X anti-corrosion protection. Hikvision rates this model for moderate anti-corrosion requirements rather than its highest coastal or chemical-plant protection category.

Can the viewing angle be set remotely?

Yes. The motorised 2.7–13.5 mm varifocal lens can be driven remotely during installation to dial in the field of view precisely.

How does Smart Hybrid Light operate?

It brings infrared and white supplementary lighting together in a single camera, with three selectable lighting modes covering discreet monitoring, colour detail and event-triggered illumination needs.

Is audio supported?

Yes. The camera carries an arrayed dual-microphone with environmental noise filtering, along with line-level audio input and output interfaces.
