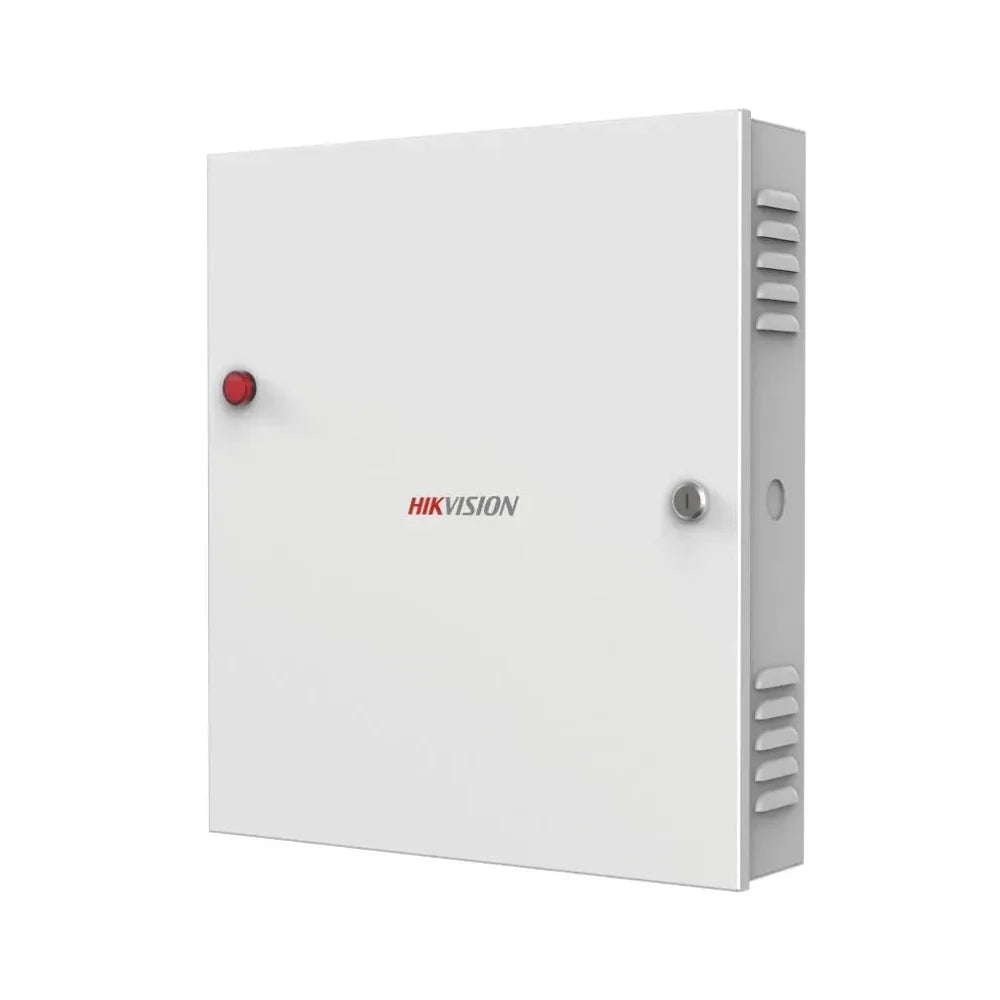

Pro Series 4-Door Access Controller

The AXS-K2604-G controls 4 doors over TCP/IP, holding 100,000 cards and 300,000 events. It is UL294 qualified, which is the standard that matters when access control has to satisfy an insurer or a compliance audit rather than only the people using it.

Key Details

• 4 doors controlled — Manages 4 openings from one unit. Controllers are usually cheaper per door as the door count rises, so size this against the whole site rather than the first door.
• 100,000 cards, 300,000 events — Capacity well beyond most sites, with a long event history retained for audit — which is what turns access control into evidence after an incident.
• UL294 qualified — Certified to the recognised access control standard, frequently a requirement for insurance and for government or corporate procurement.
• Open protocols — ISAPI and OSDP support, plus RS-485 and Wiegand reader interfaces, so it works with existing readers and integrates with third-party management software.
• Alarm handling — Alarm inputs and outputs with event upload, so forced doors and doors held open are reported rather than merely logged.
• Two comms paths — TCP/IP with ISUP 5.0, plus RS-485 as an alternative — useful where a network drop is not available at the controller position.

Where It Fits

For commercial and institutional sites where access control is a compliance matter as much as a security one. Choose the door count against the whole building: a 4-door controller is materially cheaper than 4 single-door units where the doors are close enough to cable back to one position.

Specifications

Assurance

• 3-Year Australian Warranty
• Genuine Hikvision stock, supplied and supported locally
• Australian-based technical support before and after purchase
