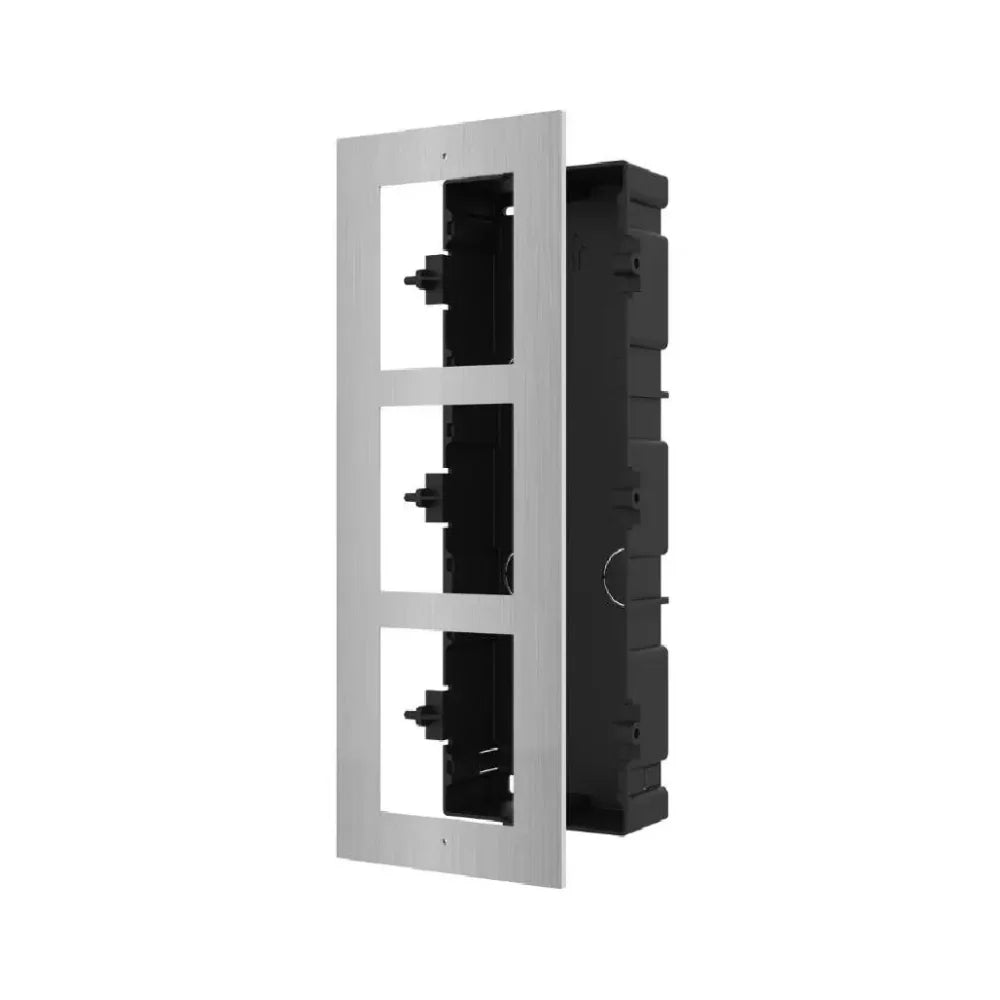

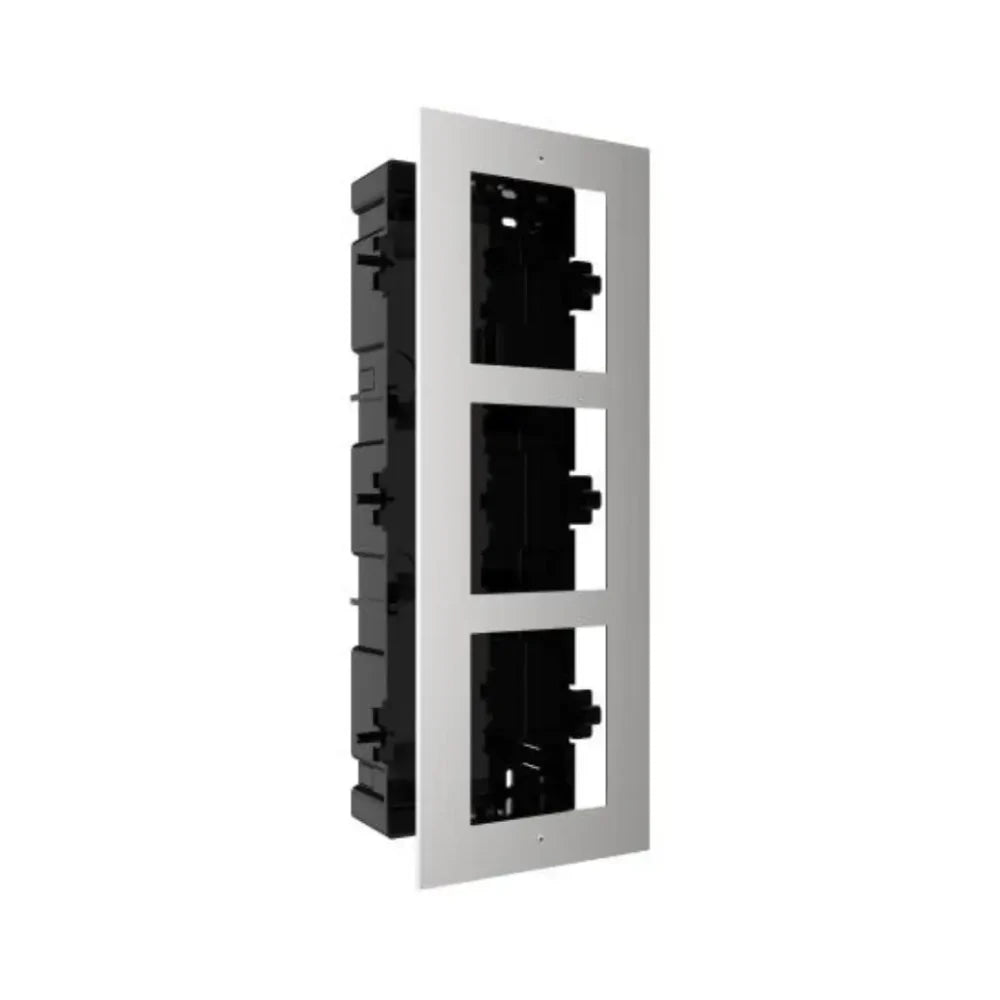

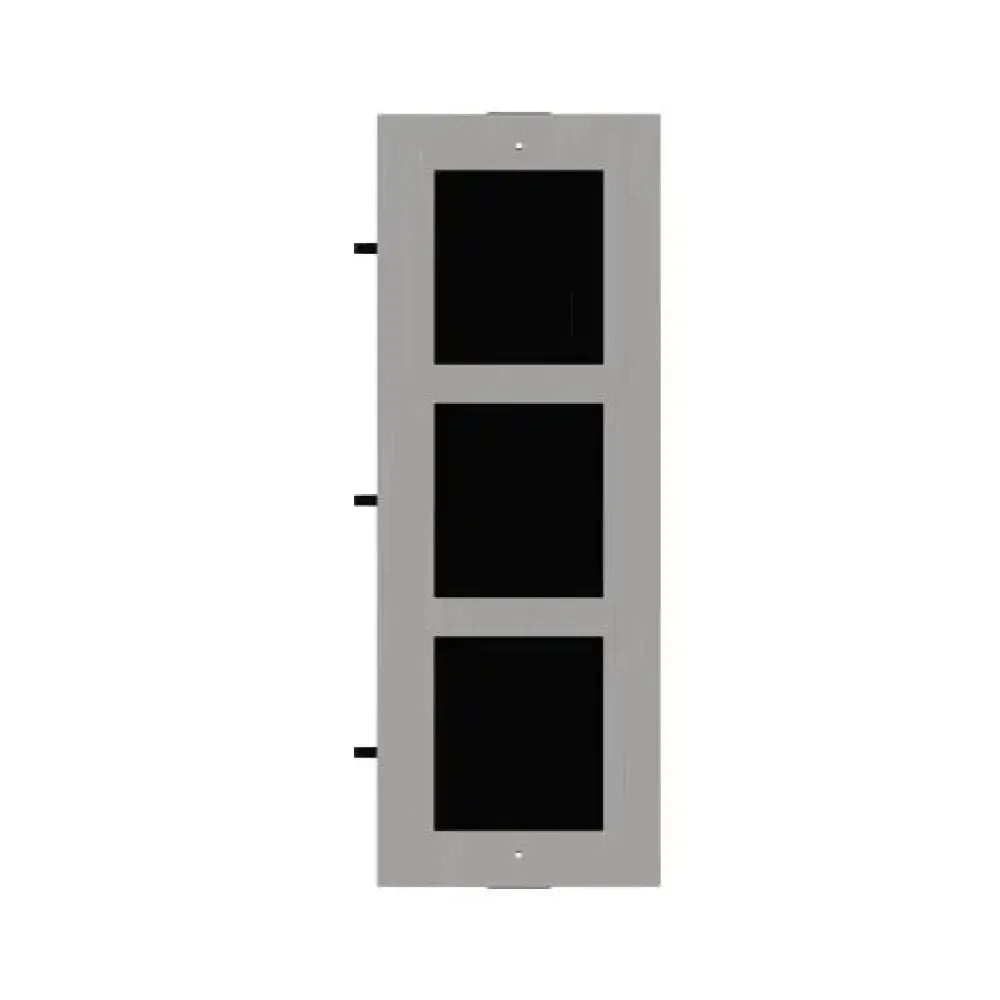

Flush Mounting Box for 3-Module Hikvision Gen2 Door Stations

The DS-KD-ACF3/S is the flush-mount enclosure for a 3-module Hikvision Gen2 door station. Mounting hardware is the part of an intercom order that gets forgotten, and then holds up the whole job — the station itself ships without an enclosure, and it cannot be installed without one. Flush mounting sinks the gang box into the wall so only the panel face sits proud. It is the tidier finish and the harder one to lever off, but the box has to go in before the wall is closed up.

Key Details

• 3-module capacity — Sized for 3 Hikvision Gen2 modular door-station modules. Get this wrong and the panel either rattles in an oversized aperture or will not go in at all, so count your modules — station, keypad, reader, nametag — before ordering.
• Flush installation — Flush mounting sinks the gang box into the wall so only the panel face sits proud. It is the tidier finish and the harder one to lever off, but the box has to go in before the wall is closed up.
• Stainless steel — Stainless resists corrosion and handling marks far better than coated plastic, which matters on a coastal site or a public entrance that gets touched hundreds of times a day.
• Supplied complete — Includes gang box, cover screws and cabling accessories. These are the small parts that hold up an install when they turn out to be missing.
• Correct fitment matters — Made for Hikvision Gen2 modular door stations. A door station mounted in an ill-fitting box loses its weather seal, which is how water gets behind the panel and into the electronics.

Where It Fits

Order this alongside a 3-module Hikvision Gen2 station build. If you are still deciding between flush and surface, decide before the walls close: flush looks better and resists tampering, but retrofitting a flush box into a finished wall means cutting it open. Surface mounting can be done at any time.

Specifications

Assurance

• 3-Year Australian Warranty
• Genuine Hikvision stock, supplied and supported locally
• Australian-based technical support before and after purchase
