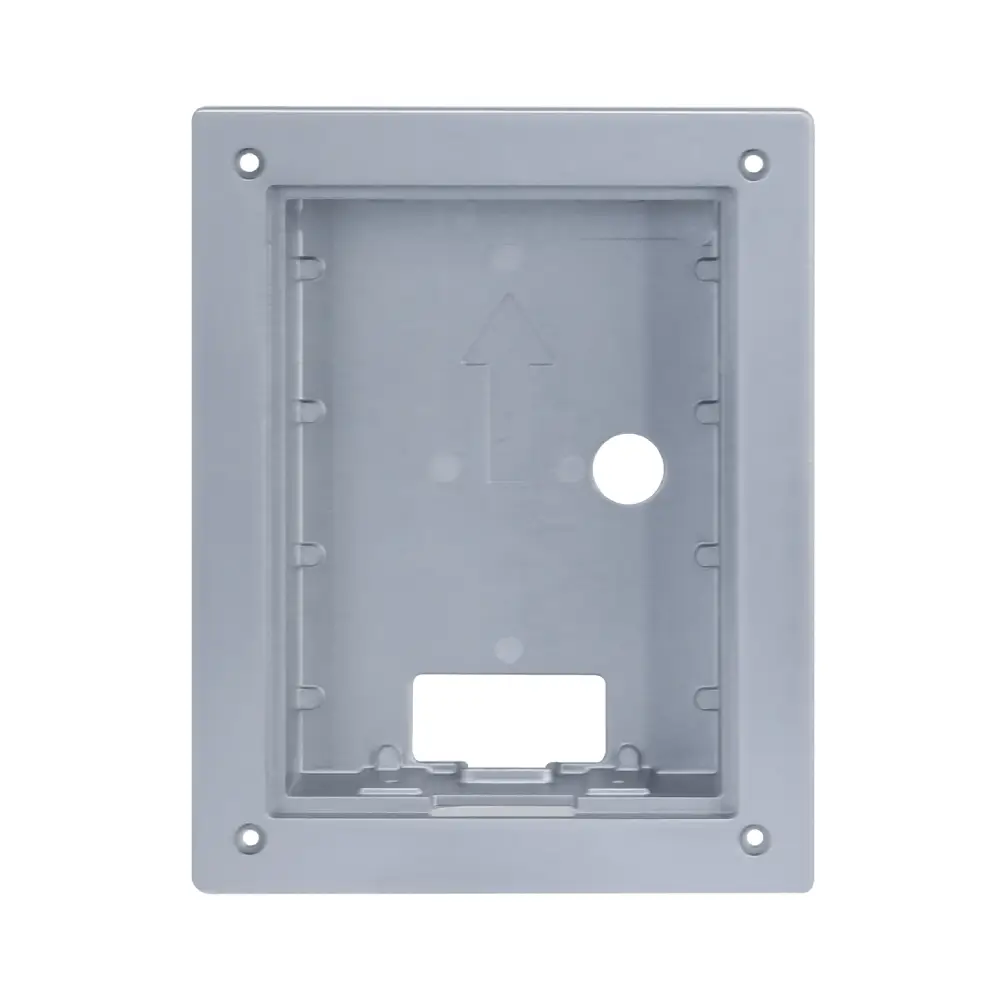

Flush Mount Box for the Dahua VTO2202F-P

The DH-AC-VTM114 is the flush-mount enclosure made specifically for the Dahua VTO2202F-P. Door stations ship without an enclosure, so this is not an optional extra — it is the part that holds the station on the wall and keeps water out of the back of it. Flush mounting sinks the gang box into the wall so only the panel face sits proud. It is the tidier finish and the harder one to lever off, but the box has to go in before the wall is closed up.

Key Details

• Made for one station — Dimensioned for the VTO2202F-P specifically. A generic box leaves gaps around the panel edge, and every gap is somewhere water and insects get in behind the station.
• Flush installation — Flush mounting sinks the gang box into the wall so only the panel face sits proud. It is the tidier finish and the harder one to lever off, but the box has to go in before the wall is closed up.
• ADC12 aluminium alloy construction — Formed in adc12 aluminium alloy, which gives the assembly rigidity and resists the knocks a panel at hand height inevitably takes.
• Finish — Silver finish, matched to the station so the completed panel looks like one piece rather than two.
• Dimensions — Front 128.9 × 162.9 × 34.5 mm. Measure against your aperture before cutting — a flush opening cannot be made smaller afterwards.

Where It Fits

Order alongside the VTO2202F-P. Decide between flush and surface before the wall is closed up: flush is neater and harder to interfere with, surface can be fitted to a finished wall at any time.

Specifications — VTM114

Assurance

• 3-Year Australian Warranty
• Genuine Dahua stock, supplied and supported locally
• Australian-based technical support before and after purchase
