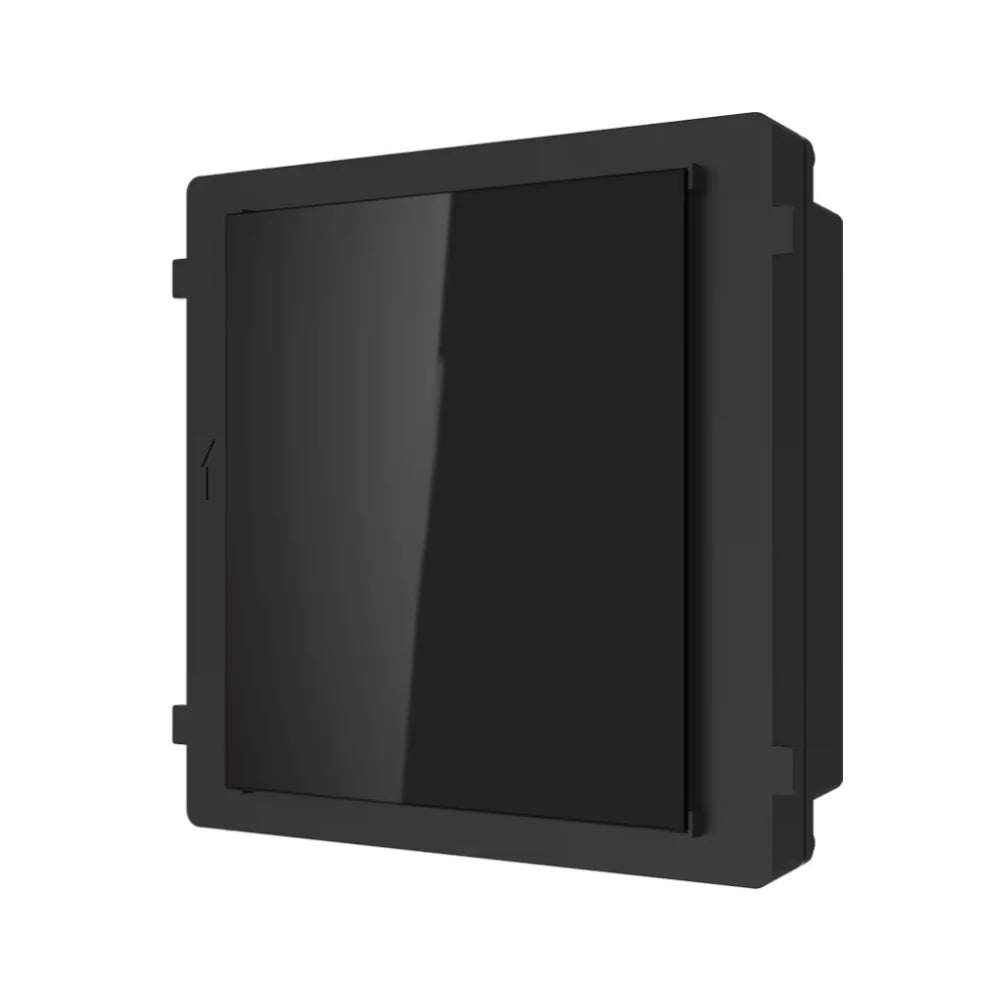

Blank Filler Module for KD8 Modular Panels

The DS-KD-BK fills an unused position in a modular door station panel. Mounting boxes come in fixed one, two and three-module sizes, so a two-module box holding one functional module leaves a hole — this closes it. This is a module for Hikvision's KD8 Series Pro modular door station, not a complete station. A working panel needs a main unit with the camera, any modules you want beside it, and a mounting box sized for the total module count.

Key Details

• Closes an unused position — Fills a spare grid slot so the panel presents a continuous face rather than an open aperture into the back box.
• Keeps the weather out — Rated IP65 as part of a completed assembly. An open module position defeats the sealing of every other module in the panel.
• Leaves room to expand — Fit a larger box now with a blank in the spare position, and adding a keypad or card reader later is a five-minute job rather than a re-cable.
• Matches the panel finish — Finished to sit alongside the functional modules so the completed panel still looks deliberate.
• Inexpensive insurance — Costs very little against the alternative of water reaching the wiring behind an open panel.

Where It Fits

Order one for every empty position in your mounting box. Specifying a three-module box with two blanks is a sensible way to leave headroom on a panel you expect to expand.

Technical Specifications

Assurance

• 3-Year Australian Warranty
• Genuine Hikvision stock, supplied and supported locally
• Australian-based technical support before and after purchase
