Sixteen Floor Relays per Sub-Controller

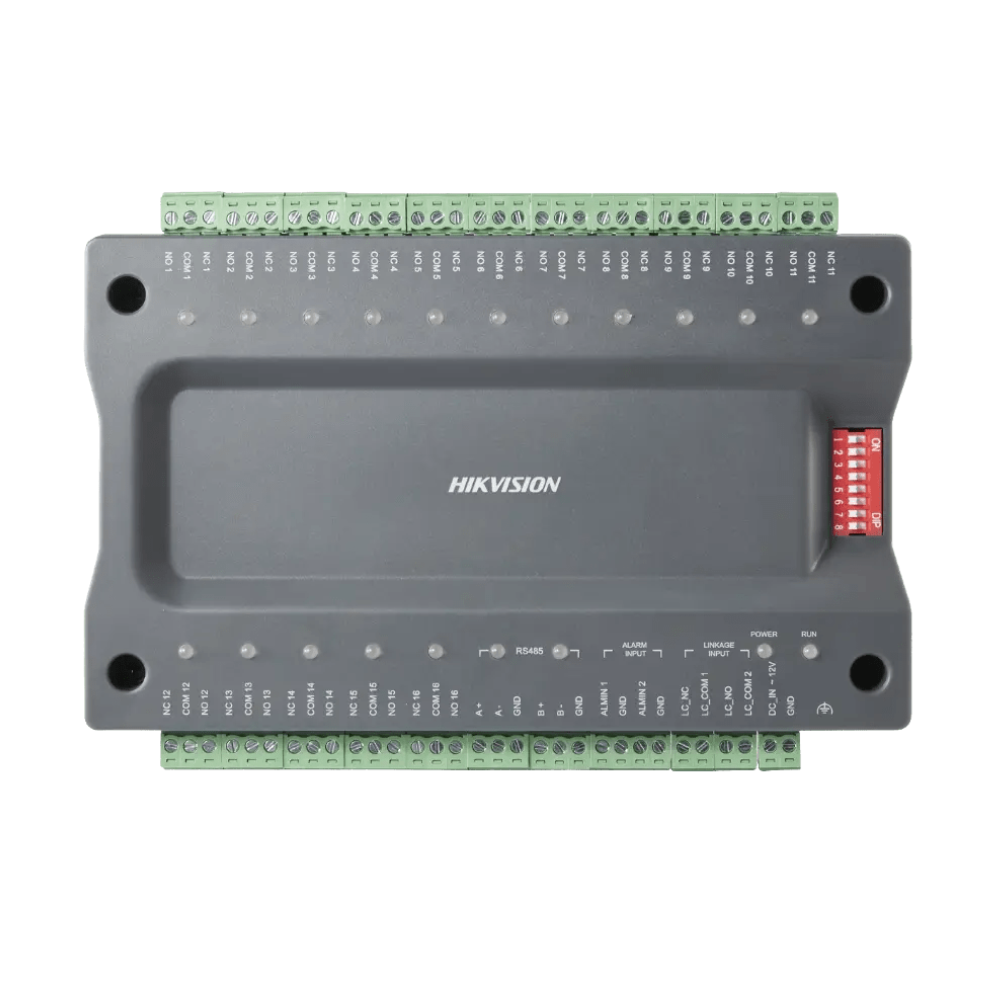

The DS-K2M0016A is the distributed half of a Hikvision lift access system: sixteen relay outputs, one per floor button, connected back to a DS-K2210 master over RS-485. Up to eight sub-controllers run from one master, giving 128 floors in total.

Key Details

• Sixteen floor relays — One relay per floor button, so each level is enabled or disabled independently rather than in blocks.
• RS-485 to the master — A single serial run back to the DS-K2210 instead of sixteen separate cables to the plant room — the reason for the distributed design.
• Eight per master — Up to eight sub-controllers on one master, scaling to 128 floors without changing the head end.
• DIP switch configuration — Address and relay type are set by DIP switch, so a replacement unit is commissioned in the shaft in minutes without a laptop.
• Mounts near the buttons — Designed to sit close to the lift car button panel, keeping the relay wiring short and simple.

Where It Fits

Order one per sixteen floors served, alongside a DS-K2210 master. Standard practice on any lift access job in a building tall enough that home-running every floor to the plant room would be unreasonable.

Specifications

Assurance

• 3-Year Australian Warranty
• Genuine Hikvision stock, supplied and supported locally
• Australian-based technical support before and after purchase
