Aluminium Villa Door Station — 1 Nametag Button, Flush Mount

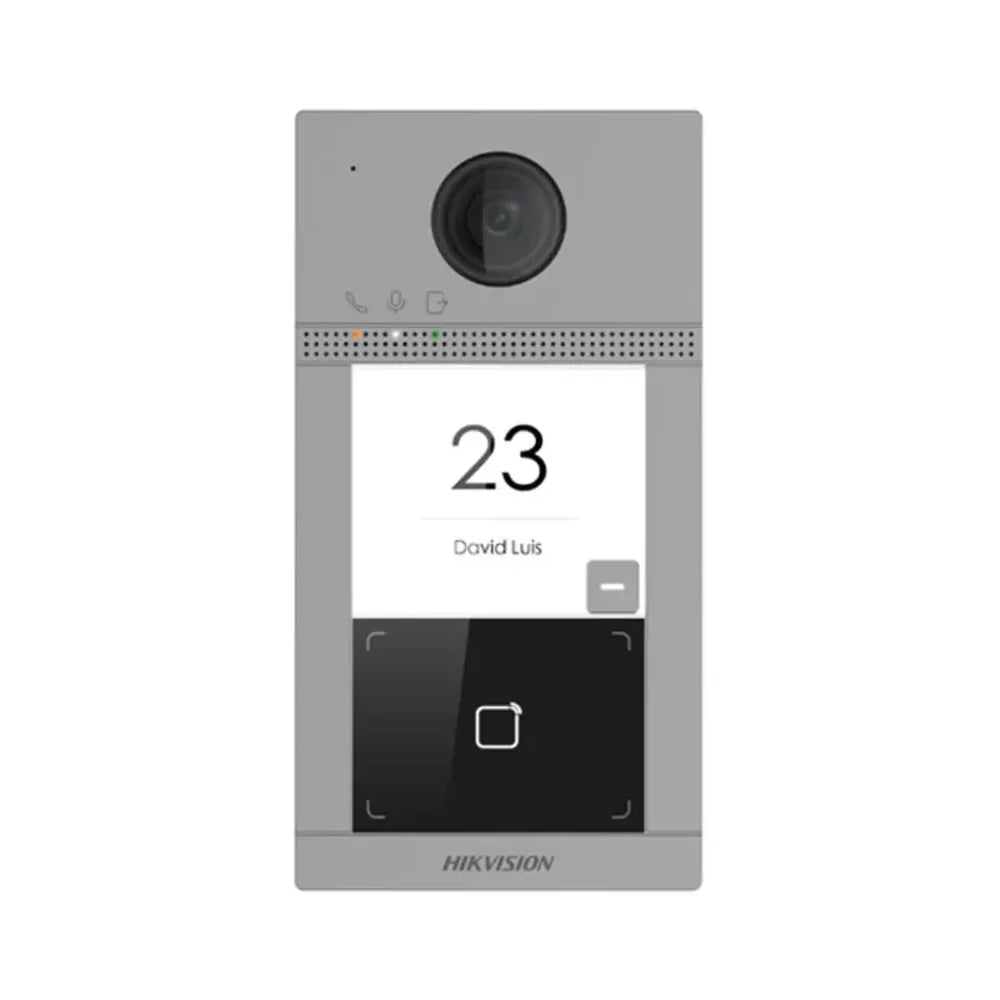

The DS-KV8113-WME1/Flush is Hikvision's aluminium villa station with 1 nametag call button and 1-channel access control to the indoor station. One button per dwelling is the rule: a single house or unit. It carries built-in Wi-Fi, so the station can reach the network without a data cable being run to the door.

Key Details

• 1 call button — A single nametag button for one household, with the nametag backlit so it is readable after dark.
• Wi-Fi at the door — Wireless networking built in, so the station can be fitted where running Cat6 would mean lifting a driveway or chasing a rendered wall. Standard PoE or 12VDC are both supported where cable is available.
• Mifare reader built in — Residents badge in with a card or fob and only genuine visitors ever press the button, which is what stops an intercom becoming an irritation.
• Aluminium, IP65 and IK08 — An aluminium alloy body rated IP65 for weather and IK08 for impact — appropriate for an unsheltered street-facing entrance.
• Flush mounting — Sits into the wall for a flatter, tidier finish that is also harder to lever off. The gang box has to be in place before the wall is finished.
• Clear status indication — Three integrated indicators show call, talk and unlock states, with noise suppression and echo cancellation on the audio so conversations are intelligible over traffic.

Where It Fits

Suited to a single house, villa or unit. Choose the flush variant to match your wall: flush needs the box installed before the wall is closed up. Pair with any Hikvision IP indoor station.

Technical Specifications

Assurance

• 3-Year Australian Warranty
• Genuine Hikvision stock, supplied and supported locally
• Australian-based technical support before and after purchase
