5MP at the Door and Android 14 on a 10.1-Inch Screen

The highest-specified intercom kit we stock. The DS-KD8005-IME1 door station records at 5MP — 3200 × 1800, roughly four times the pixels of the 2MP stations most kits use — with 100dB WDR and infrared. Indoors, the DS-KH9570-WTE1 is a 1920 × 1200 IPS touchscreen running Android 14 with Wi-Fi 6 and Bluetooth 5.0. A PoE switch and a surface mount box are included.

What Makes This Kit

• 5MP door camera — 3200 × 1800 across a 134° field of view. At this resolution a face remains identifiable when you zoom into a recorded still, which is the point at which a door camera becomes evidence.
• 100dB WDR with infrared — Handles a backlit doorway during the day and an unlit one at night, the two conditions that make most door footage useless.
• Android 14 indoor station — A 10.1-inch 1920 × 1200 IPS panel with Wi-Fi 6, Bluetooth 5.0 and dual microphones and speakers — a current-generation tablet rather than a fixed-function handset.
• Serious door control — Two lock relays, two door-contact inputs and two exit-button inputs, so the station can run a proper two-door installation on its own.
• Modular and expandable — Built on Hikvision's KD8 modular platform, so keypad, card reader and additional call-button modules can be added to the same panel.
• Switch and mount included — A four-port smart PoE switch with a 60W budget and PoE watchdog, plus an aluminium single-module surface box.

Where It Fits

For a main residence or a commercial entrance where the door camera is expected to produce identifiable footage, not just show that someone is there. The Android 14 monitor also makes this the kit to pick if you want the indoor station to remain current for years rather than feel dated inside two.

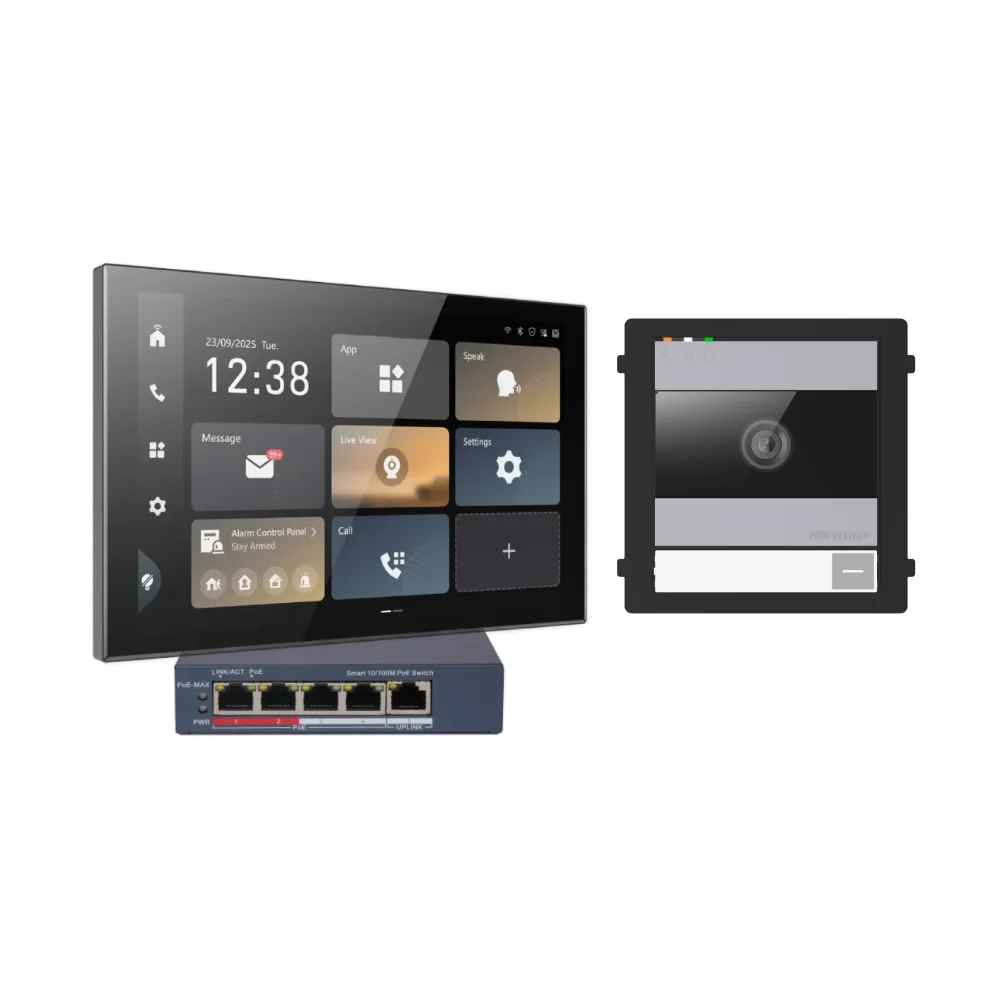

DS-KD8005-IME1 door station

DS-KH9570-WTE1 indoor monitor

DS-3E1105P-EI PoE switch and DS-KD-ACW1 mount

Assurance

• 3-Year Australian Warranty
• Genuine Hikvision stock, supplied and supported locally
• Australian-based technical support before and after purchase
