An All-in-One Station With Display, Card Reader and Wiegand

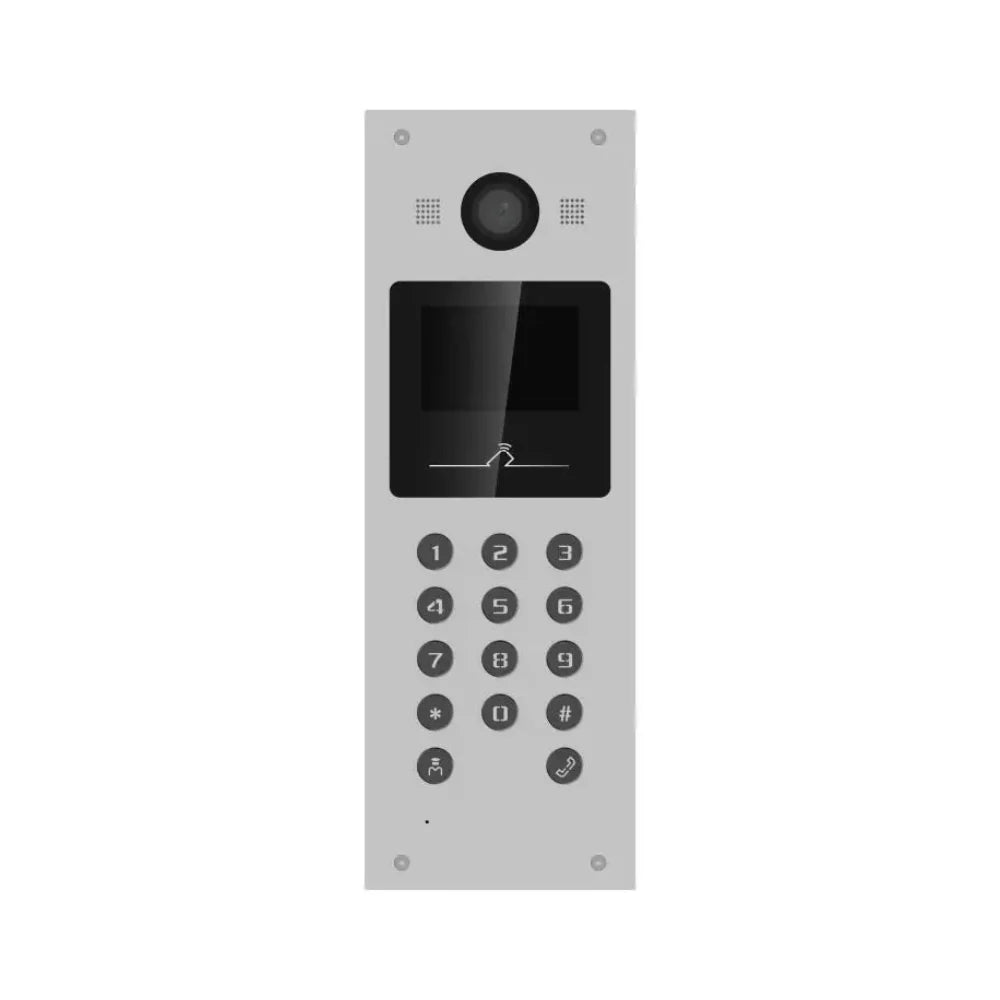

The DS-KD3003-E6 puts a 3.5-inch colour display, a 2MP camera, a Mifare reader and PIN entry into a single non-modular unit. Its Wiegand and RS-485 interfaces are the notable part: it can hand off to an existing access control system rather than insisting on being the head end, which is what makes it useful as an addition to a building that already has access control.

Key Details

• Complete in one unit — Display, camera, card reader and keypad without assembling modules or specifying a multi-module box.
• Integrates with existing access control — Wiegand and RS-485 interfaces let it feed an access controller already on site, so the intercom does not force a rebuild of the access system.
• Card and PIN entry — Built-in M1 Mifare reader plus code entry, covering permanent users and temporary visitors.
• 3.5-inch colour display — A 480 × 320 screen for dialling and status, so visitors are not guessing at an unlabelled panel.
• Full I/O — RJ45, RS-485, alarm input and a relay output, with web-based remote configuration.
• IP65 rated — Sealed for outdoor mounting; the DS-KAB13-D flush bracket is available separately.

Where It Fits

Best where a building already has access control and needs video intercom added to one entrance without replacing the head end. The Wiegand interface is the reason to choose it over a modular panel.

Technical Specifications

Assurance

• 3-Year Australian Warranty
• Genuine Hikvision stock, supplied and supported locally
• Australian-based technical support before and after purchase
