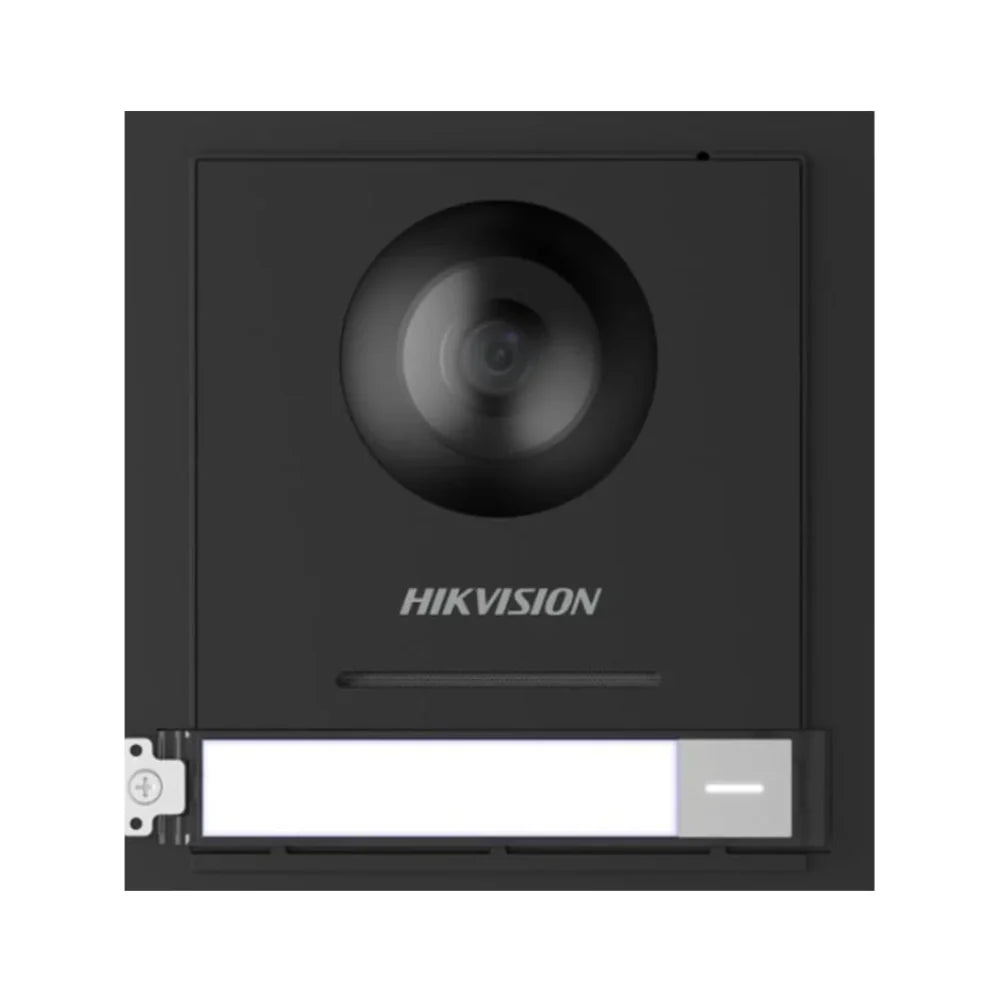

The Modular Main Unit — Camera, Button and Two Lock Relays

The DS-KD8003-IME1 is the core of a Hikvision Gen2 modular panel: a 2MP fisheye camera with infrared, one call button, two lock relays and a four-channel alarm input. Every modular build starts here, and other modules — keypad, card reader, nametag, display — sit alongside it in a shared mounting box, which is sold separately.

Key Details

• Fisheye camera with IR — A wide 2MP colour fisheye view with infrared supplement, covering the whole doorstep rather than a narrow cone, day or night.
• Two lock relays — Controls two openings from one station — typically a pedestrian gate and the front door — without additional hardware.
• Four alarm inputs — Brings door contacts, exit buttons or a tamper loop onto the station itself, so the panel does the job of a small access controller.
• Expandable panel — Add keypad, card reader, nametag or display modules to build exactly the panel the site needs instead of accepting a fixed feature set.
• PoE or 12VDC, IP65 — Powered over the network cable or locally, rated IP65 for outdoor mounting.
• Bracket required — A mounting box is not included — order one sized for your total module count.

Where It Fits

The starting point for any modular Hikvision door entry build, from a one-module single-house panel to a three-module apartment panel. If you want a complete system in one order, one of the DS-KIS kits will be simpler.

Technical Specifications

Assurance

• 3-Year Australian Warranty
• Genuine Hikvision stock, supplied and supported locally
• Australian-based technical support before and after purchase
