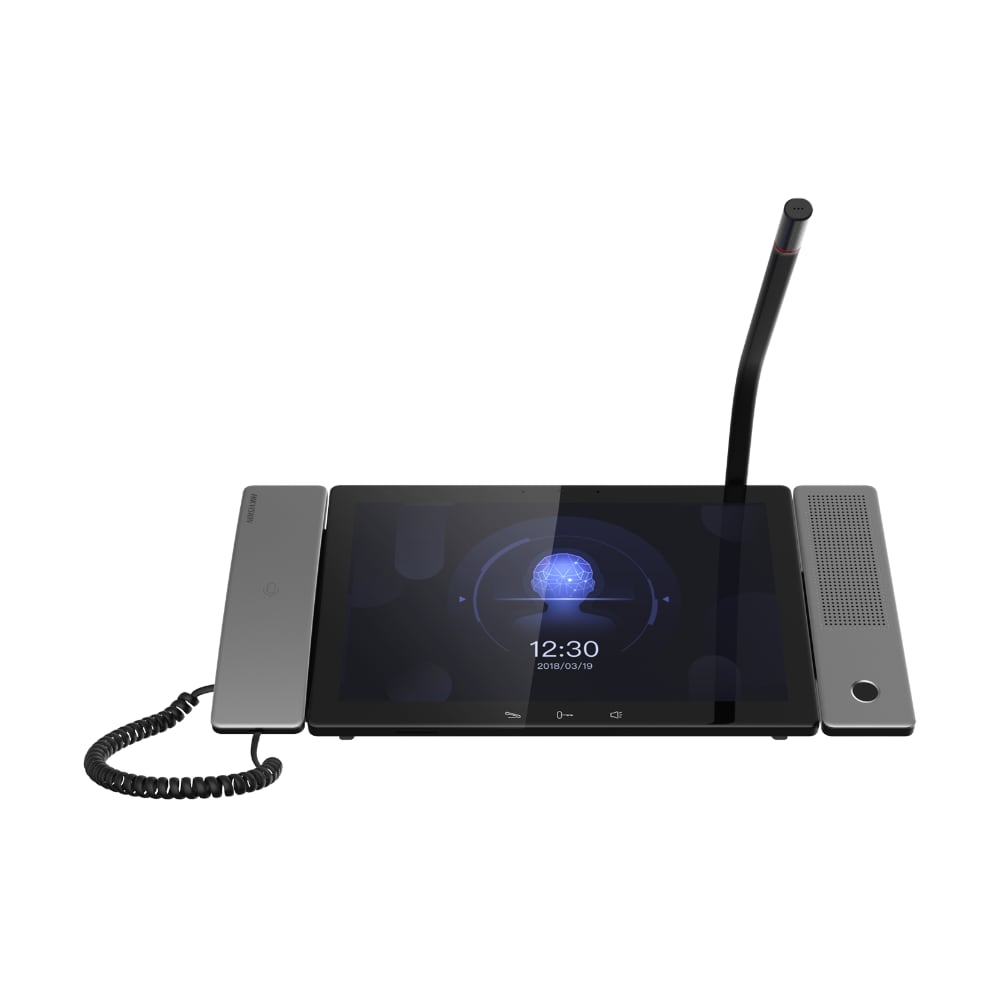

A Main Station With Its Own SIP Server Built In

The DS-KM9503 is not an indoor monitor — it is the head end of a large intercom system, with a private SIP server built in supporting up to 10,000 intercom devices and 128 network cameras. On a site of that size, the alternative is running a separate SIP server, and this removes that requirement entirely.

Key Details

• Built-in SIP server — A private SIP server on the device, so a large intercom system needs no separate server to route its calls.
• 10,000 devices — Manages up to 10,000 intercom devices and 128 network cameras from one station.
• 10.1-inch touchscreen — A 1280 × 800 IPS capacitive display running Android 7.1 with 2GB RAM and 8GB storage.
• Built-in camera — A 2MP camera at 64.1° × 48.1°, so the main station can make video calls out as well as receive them.
• PoE powered — Single-cable installation at the concierge or control room position.

Where It Fits

For apartment towers, campuses and managed buildings that need a concierge position and a call platform. This is infrastructure, not a household product — for a house, any of the KH-series indoor stations is the right choice.

Technical Specifications

Assurance

• 3-Year Australian Warranty
• Genuine Hikvision stock, supplied and supported locally
• Australian-based technical support before and after purchase
