Flush Mount Box for the Dahua IDIS DC-I6212WRX IP video intercom

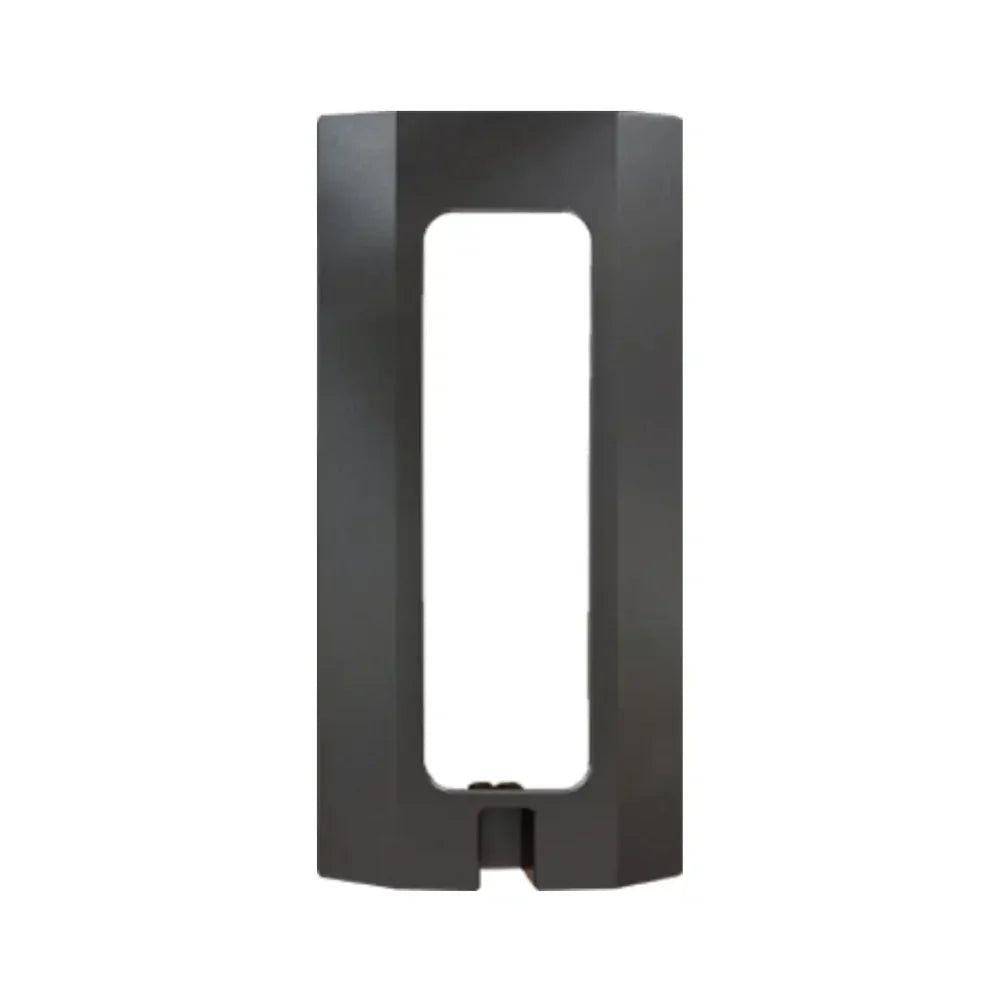

The IDIS DA-FM2100-TITANIUM is the flush-mount enclosure made specifically for the Dahua IDIS DC-I6212WRX IP video intercom. Door stations ship without an enclosure, so this is not an optional extra — it is the part that holds the station on the wall and keeps water out of the back of it. Flush mounting sinks the gang box into the wall so only the panel face sits proud. It is the tidier finish and the harder one to lever off, but the box has to go in before the wall is closed up.

Key Details

• Made for one station — Dimensioned for the IDIS DC-I6212WRX IP video intercom specifically. A generic box leaves gaps around the panel edge, and every gap is somewhere water and insects get in behind the station.
• Flush installation — Flush mounting sinks the gang box into the wall so only the panel face sits proud. It is the tidier finish and the harder one to lever off, but the box has to go in before the wall is closed up.
• Industrial plastic construction — Moulded in industrial plastic, keeping the cost down for a sheltered entrance.
• Finish — Titanium white finish, matched to the station so the completed panel looks like one piece rather than two.
• Dimensions — Top cover 102 × 215 mm, cutout 65.8 × 178.8 mm. Measure against your aperture before cutting — a flush opening cannot be made smaller afterwards.

Where It Fits

Order alongside the IDIS DC-I6212WRX IP video intercom. Decide between flush and surface before the wall is closed up: flush is neater and harder to interfere with, surface can be fitted to a finished wall at any time.

Specifications
