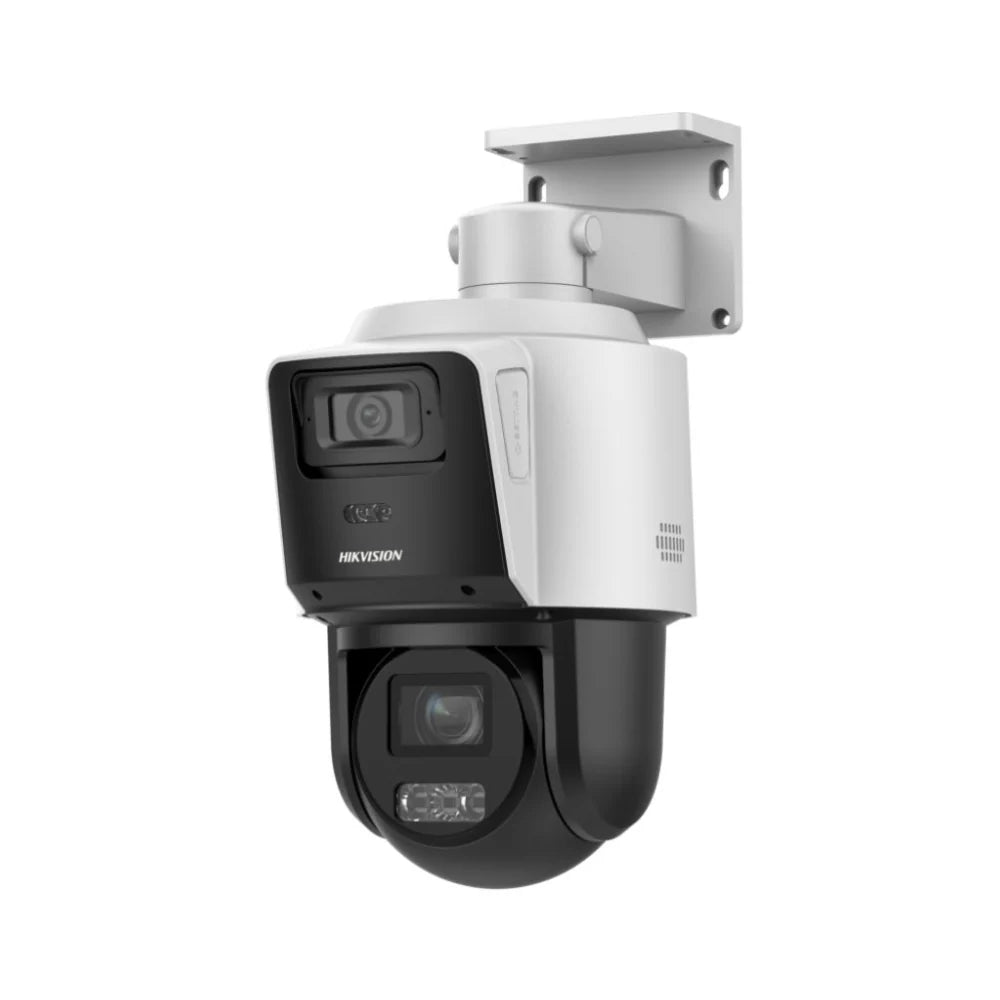

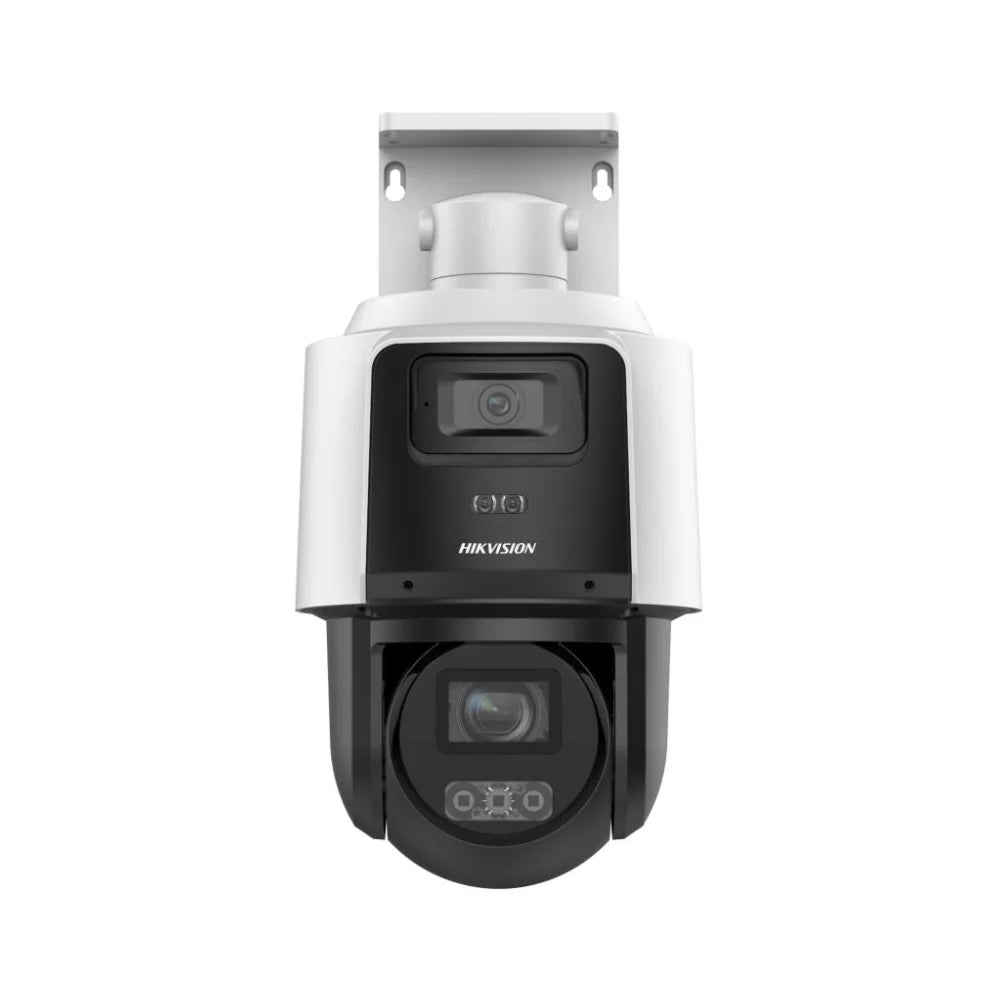

4MP Dual-Channel TandemVu PTZ Camera with ColorVu Panoramic Lens & 4x Optical Zoom

The Hikvision DS-2SE3C404MWG-E/14 is built for commercial sites and large open areas where you need the big picture and the fine detail at the same time. Its TandemVu design pairs a fixed 4MP ColorVu 2.0 panoramic channel with a separate 4MP pan-tilt-zoom channel offering 4x optical zoom, all inside one compact housing — so there are no blind spots when the PTZ moves. From shopfront entries and car parks to retail walkways and perimeter fencing, the wide-angle view stays live even while the motorised lens tracks and zooms on a target.

Key Features

• Resolution & Zoom: Dual 4MP (2560 × 1440) / 4x Zoom
• Dual Night Illumination: 30m ColorVu / 30m IR PTZ
• AI Detection: AcuSense Human & Vehicle
• Housing Rating: IP66 Weatherproof Standard

AcuSense Perimeter Analytics & Dual-Channel Synchronization

The DS-2SE3C404MWG-E/14 runs Hikvision's AcuSense deep-learning engine on both channels, cutting down false alarms from environmental movement like swaying branches or rain. The fixed panoramic lens works as an always-on lookout: when it detects a person or vehicle, it directs the PTZ channel to zoom in, lock onto the target and record the close-up detail. A built-in microphone adds synchronised audio for verification, 120 dB True WDR keeps strongly backlit scenes readable, and H.265+ compression keeps bandwidth and storage use low without sacrificing evidential image quality.

ColorVu 2.0 24/7 Colour Panoramic Field

The upper panoramic lens combines an F1.0 super-aperture lens with a warm white supplemental light, delivering full-colour 4MP footage around the clock so overall scene activity remains visible even in total darkness.

AcuSense Target Classification & Active Linking

Deep-learning algorithms accurately classify human and vehicle targets. When the panoramic analytics fire, target linkage hands the subject to the PTZ module for automatic close-up tracking, recording and fast forensic search.

Technical Specifications

Camera Model	DS-2SE3C404MWG-E/14
Panoramic Channel Spec	1/3" Progressive Scan CMOS; 4MP (2560 × 1440); 2.8 mm Fixed Lens (FOV 97°); ColorVu 24/7 Full-Colour
PTZ Channel Spec	1/2.8" Progressive Scan CMOS; 4MP (2560 × 1440); 2.8 to 12 mm Motorised Lens; 4x Optical / 16x Digital Zoom
Illumination Range	Panoramic: Warm White Light up to 30 m; PTZ: Smart IR up to 30 m
Wide Dynamic Range (WDR)	120 dB True WDR
Pan & Tilt Range	Pan: 0° to 350°; Tilt: 0° to 90°
Smart Analytics	AcuSense Deep Learning Target Classification (Human & Vehicle), Line Crossing, Intrusion Detection
Audio & On-Board Storage	Built-in Microphone; MicroSD/SDHC/SDXC Card Slot up to 512 GB
Environmental Rating	IP66 Weatherproof Standard; TVS 6000V Lightning & Surge Protection
Power Input	12 VDC ± 20% / PoE (802.3at, Class 4)

Frequently Asked Questions

What is the main benefit of a TandemVu PTZ camera?

A conventional PTZ camera gives up its wide view the moment it zooms in. TandemVu avoids this by pairing a fixed 24/7 wide-angle panoramic lens with the motorised PTZ lens, so you get broad situational coverage and zoomed-in target detail at the same time.

Does the DS-2SE3C404MWG-E/14 support full-colour night vision?

Yes. The panoramic channel uses ColorVu technology with a warm white supplementary light to produce full-colour 4MP video 24/7, while the PTZ channel relies on adaptive smart IR illumination reaching up to 30 metres.

Can this dual-channel camera run on standard PoE?

Yes. It accepts Power over Ethernet+ (PoE+ 802.3at, Class 4) through a single network cable, or can be powered from a standard 12 VDC external adapter.

How does AcuSense AI target classification help security teams?

AcuSense applies deep learning to sort movement into human, vehicle or non-target events. That filters out nuisance alerts from small animals or wind-blown foliage and makes searching recorded footage much quicker.
