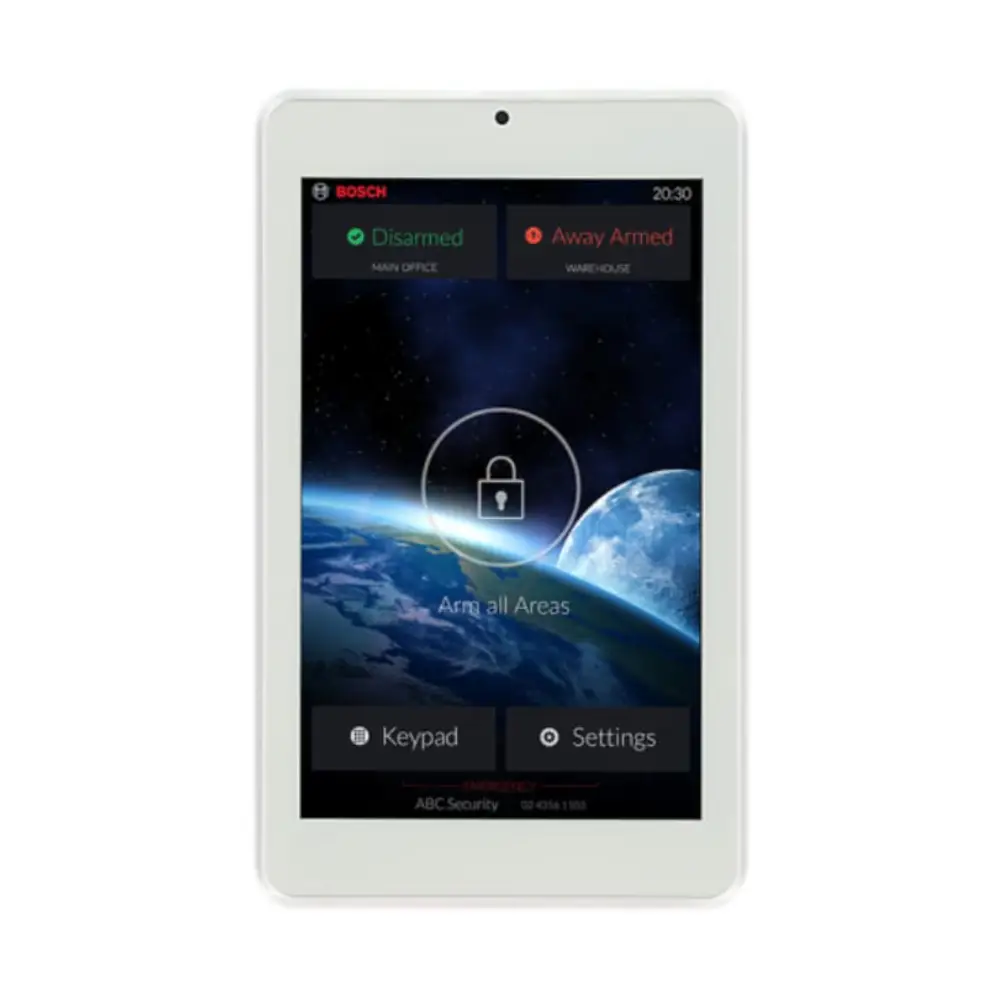

Bosch IUI-SOL-TS7 TouchOne — 7" HD Touchscreen Codepad

The flagship Solution codepad: a 7-inch 1280 x 800 IPS display at 400 nits with five-point capacitive multi-touch behind glass. A microSD slot takes 2GB to 32GB cards, and it runs from the panel's SDI2 bus at 12 VDC drawing 400mA normally and 800mA at peak.

Key Details

• 7-inch HD IPS display — 1280 x 800 at 400 nits — a genuinely modern screen rather than a resistive panel with a security-industry interface.
• Capacitive multi-touch glass — Five-point capacitive touch behind glass, so it responds like a tablet instead of needing a firm press.
• MicroSD slot — Takes a 2GB to 32GB SDHC card.
• SDI2 bus powered — 12 VDC over the panel bus — but note the 800mA peak draw when budgeting the auxiliary supply.
• Slim 13.83mm depth — A 192.7 x 115.7mm face just under 14mm deep, which sits well on a finished wall.

Where It Fits

The keypad for a main entry in a home where the alarm interface is part of the fit-out. Requires ICP-SOL2 or ICP-SOL3 panels on firmware 1.0.3 or later — check the panel's firmware before ordering for an older system.

Technical Specifications

Assurance

• 3-Year Australian Warranty
• Genuine Bosch stock, supplied and supported locally
• Australian-based technical support before and after purchase
