Dahua 12 × 5MP WizSense AI CCTV Kit — 16CH 4K NVR + 4TB HDD Bundle

Description

5 MP

LensFixed lens

Resolution5 MP

AI EngineWizSense

Power12 VDC / PoE

🛡 3-YEAR AU WARRANTY 🚚 FAST AU-WIDE SHIPPING 🎧 AU TECH SUPPORT

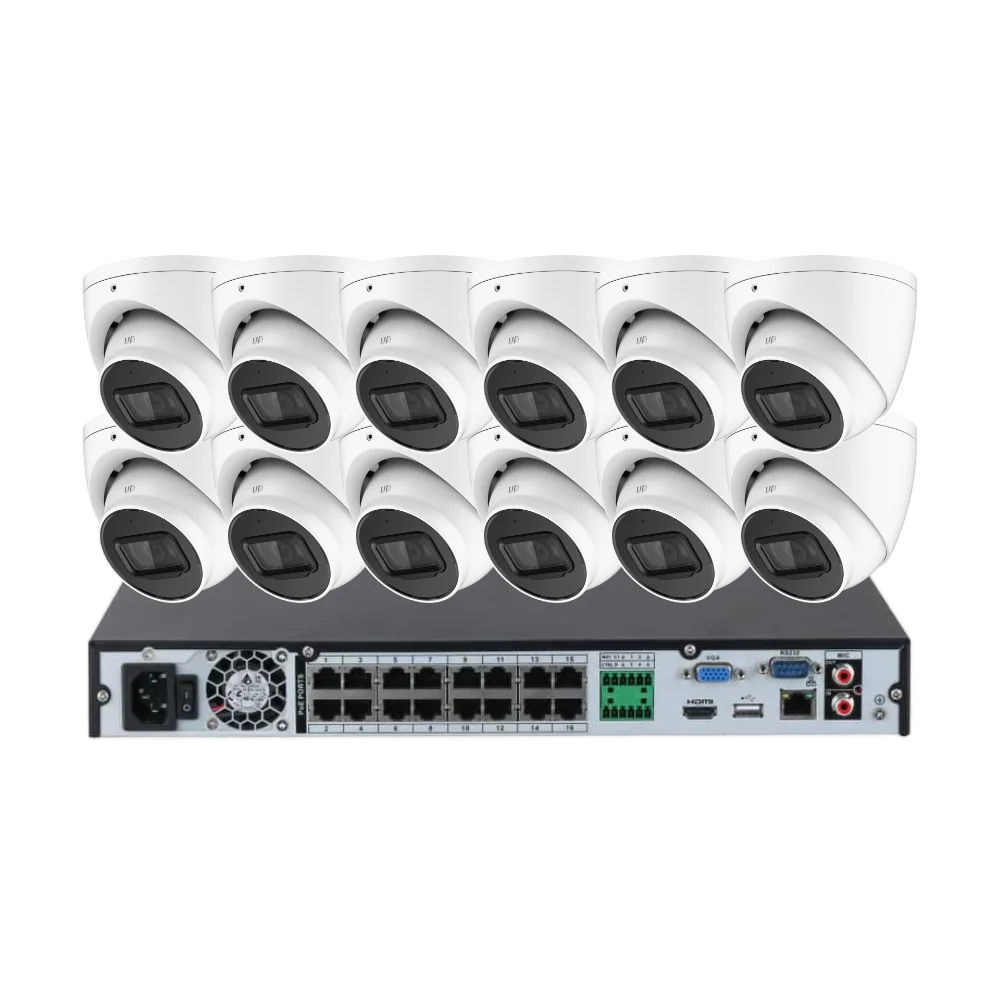

Twelve 5MP WizSense Turrets on a 16-Channel Recorder

Twelve 5MP WizSense turrets and a sixteen-channel recorder with sixteen PoE ports — a large system with four channels still free. The kit is sold without a hard drive, so you choose the capacity that suits your retention. Every camera classifies people and vehicles on board, which is what keeps a twelve-camera system usable.

What’s in the Kit

12 × Cameras	DH-IPC-HDW2541EMP-AS-ANZ — 5MP WizSense turret, fixed 2.8 mm (111° view), Smart IR 30 m, 120 dB WDR, built-in microphone, IP67
1 × Recorder	DHI-NVR4216-16P-AI/ANZ — 16-channel 4K WizSense AI recorder, 16 built-in PoE ports, two SATA bays, 4K HDMI and VGA, DMSS remote access
Hard drive	Not included — supply your own surveillance-grade drive — two bays take up to 16 TB each
Power	All twelve cameras run from the recorder's PoE ports; four ports stay free
Mounting	Eave/soffit brackets, templates and fixings included. For brick or flush walls add a DH-PFB204W wall mount per camera; a DH-PFA139 junction box tidies the cabling
Cabling	Cat6 is run on site and is not supplied; pre-made patch leads are available separately

What Makes This Kit

Twelve angles, four spare — sized so the system is complete now and still has somewhere to grow
SMD Plus on every camera — without classification a twelve-camera site produces more alerts than anyone will read
5MP for practical retention — twelve channels at 5MP keeps the storage arithmetic sane
Two drive bays — up to 32 TB, worth filling on a system with this many streams
Sixteen PoE ports built in — the recorder powers and connects every camera — no separate switch

Where It Fits

For schools, warehouses, large retail sites and multi-building properties where twelve viewpoints is the requirement and the budget favours coverage over 4K.

Camera Specifications — DH-IPC-HDW2541EMP-AS-ANZ

Camera Type	5MP WizSense AI Fixed-focal Eyeball Turret (Starlight)
Image Sensor	1/2.7" Progressive Scan CMOS
Max. Resolution	5MP · 2592 × 1944
Streams	Main 5MP @ 20 fps / 4MP @ 25 fps · Sub D1 @ 25 fps
Lens	Fixed 2.8 mm · ~111° horizontal FOV
Night Vision	Smart IR up to 30 m · Starlight min. illumination 0.005 lux
WDR	True 120 dB hardware WDR
AI Functions	WizSense · SMD 4.0 · Perimeter Protection (human & vehicle)
Audio	Built-in microphone · G.711a / G.711mu / G.726
Compression	Smart H.265+ / H.265 / Smart H.264+ / H.264
Power	12 VDC / PoE (IEEE 802.3af) · Max 6.1 W
Ingress Protection	IP67 · cast-aluminium housing
Dimensions	Ø121.9 × 99.1 mm · ~500 g
Compliance	RCM · CE-LVD · FCC Part 15 Subpart B
Warranty (Australia)	3-Year Australian Warranty

Recorder Specifications — DHI-NVR4216-16P-AI/ANZ

Channels	16 IP channels · up to 16 MP input
Bandwidth	256 Mbps incoming / recording / outgoing
PoE	16 × PoE+ ports · 130 W total · max 25.5 W per port
Storage	2 × SATA III (up to 16 TB per bay) · HDD not included
Video Output	1 × HDMI (4K) + 1 × VGA · simultaneous
AI Functions	Face detection, IVS/Perimeter, SMD Plus · Quick Pick target search
Compression	Smart H.265+ / H.265 / Smart H.264+ / H.264
Remote / App	DMSS (iOS & Android) · P2P · ONVIF 21.12

Assurance

3-Year Australian Warranty
Genuine Dahua stock, supplied and supported locally
Australian-based technical support before and after purchase
