Four 6MP TiOC 3.0 Turrets, with Standard or AcuPick Recording

Four TiOC 3.0 turrets — siren, red-and-blue strobe and two-way audio on every angle — and a genuine choice of recorder. The four-channel WizSense NVR is the straightforward option; the 5-Series AcuPick NVR adds attribute search, face detection, a second drive bay and four spare PoE ports for later. White or black.

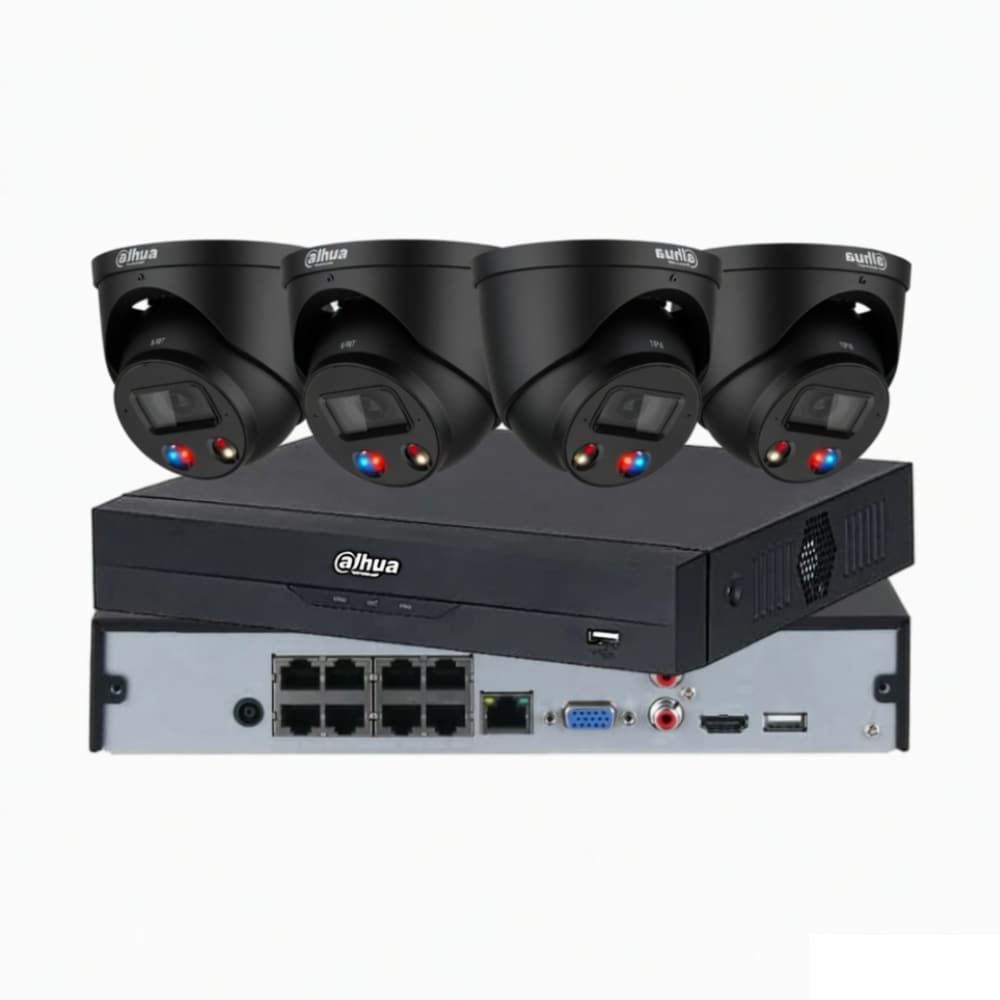

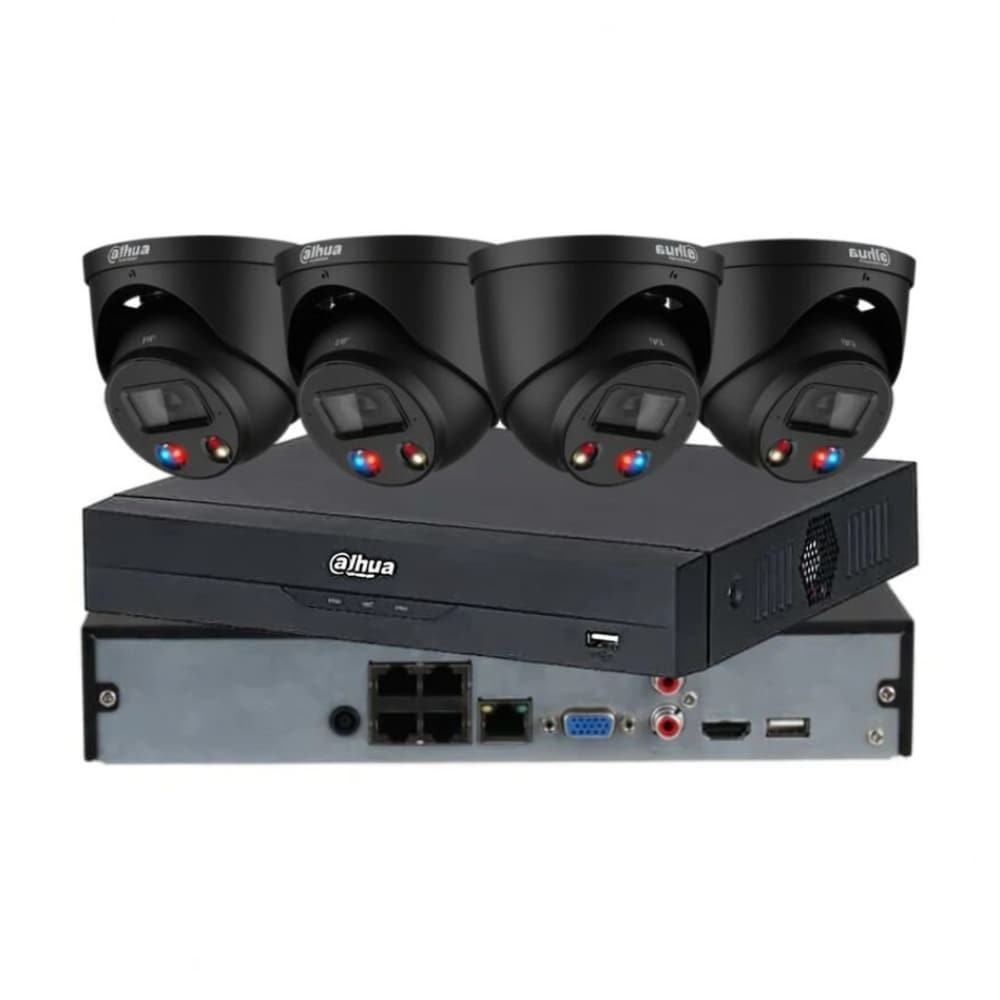

What’s in the Kit

4 × Cameras	DH-IPC-HDW3649H-AS-PV-ANZ-S2 — 6MP TiOC 3.0 active-deterrence turret: siren, red/blue strobe, two-way audio, IR 30 m plus warm light 30 m, SMD 4.0, IP67
1 × Recorder	Your choice of DHI-NVR4104HS-P-AI/ANZ (4-channel WizSense AI with Quick Pick) or DHI-NVR5208-8P-AI/ANZ (8-channel 5-Series AcuPick AI, two SATA bays, face detection, four spare PoE ports)
Hard drive	Not included — the 4-channel recorder has one SATA bay, the AcuPick recorder two (up to 16 TB each)
Power	All four cameras run from the recorder's PoE ports
Mounting	Every camera ships with its eave/soffit bracket, drill template and fixings
Cabling	Cat6 is run on site and is not supplied; pre-made patch leads are available separately

What Makes This Kit

• Deterrence on all four — siren, strobe and two-way audio at every angle, triggered by classification rather than by movement
• AcuPick if you will use it — attribute search finds a person by clothing or a vehicle by type across hours of footage — worth the step up if you ever review recordings seriously
• Room to double — the AcuPick option is an eight-channel recorder, so four more cameras fit without replacing it
• 24/7 colour — dual illuminators on every camera hold colour through the night
• AcuPick-native cameras — the TiOC turrets are built for the 5-Series search features, so nothing is wasted if you take that option

Where It Fits

For a home or business that wants deterrence everywhere and is deciding how seriously it will use the footage. Both recorder options are listed in the specifications.

TiOC 3.0 Camera — DH-IPC-HDW3649H-AS-PV-ANZ-S2 (×4)

Camera Type	6MP TiOC 3.0 AcuPick Active-Deterrence Full-Colour Turret (WizSense)
Image Sensor	1/2.7" CMOS
Max. Resolution	6MP · 3072 × 2048 @ 25/30 fps
Lens	Fixed 2.8 mm
Night Vision	IR 30 m + Warm Light 30 m · full-colour 24/7
Active Deterrence	Siren · red/blue strobe lights · voice warning
Audio	Built-in dual mic · 1-ch speaker · two-way talk
AI	SMD 4.0 · AcuPick (with AcuPick NVR) · Perimeter Protection
Edge Storage	MicroSD up to 256 GB
Power / Ingress	PoE 802.3af · 12 VDC · IP67 · –30 °C to +60 °C
Warranty (Australia)	3-Year Australian Warranty

Recorder — DHI-NVR4104HS-P-AI/ANZ

Model	DHI-NVR4104HS-P-AI/ANZ
Recorder Type	4-channel 4K WizSense AI NVR
Channels	4 IP channels
PoE	4 built-in PoE ports
Storage	1 × SATA bay · HDD not included
Video Output	4K HDMI
AI Functions	WizSense · SMD 4.0 smart motion detection · Quick Pick
Remote / App	DMSS (iOS & Android) · P2P
Warranty (Australia)	3-Year Australian Warranty

Recorder — DHI-NVR5208-8P-AI/ANZ

Model	DHI-NVR5208-8P-AI/ANZ
Recorder Type	8-channel 5-Series AcuPick AI NVR
Channels	8 IP channels · up to 32 MP per channel
PoE	8 built-in PoE ports
Storage	2 × SATA bays · HDD not included
AI Functions	Full AcuPick attribute search · face detection · WizSense
Remote / App	DMSS (iOS & Android) · P2P
Warranty (Australia)	3-Year Australian Warranty

Assurance

• 3-Year Australian Warranty
• Genuine Dahua stock, supplied and supported locally
• Australian-based technical support before and after purchase
