A 25× Auto-Tracking PTZ with Four 4K AcuSense Turrets

A PTZ kit for sites too large to cover with fixed cameras alone. The speed dome pans a full 360°, zooms 25× optically, sees 200 m into the dark and follows a person or vehicle automatically once AcuSense classifies it. Four 8MP turrets hold the fixed angles underneath so nothing is missed while the PTZ is looking elsewhere.

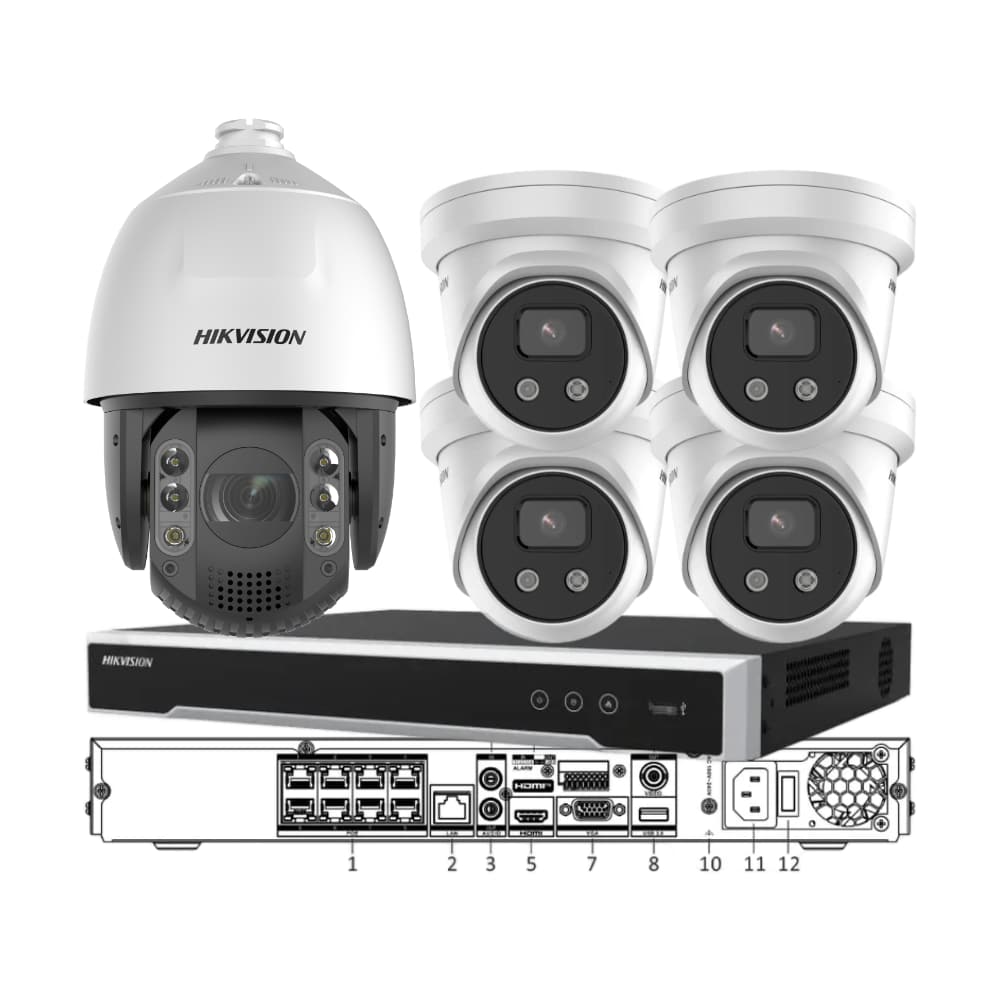

What’s in the Kit

1 × PTZ camera	DS-2DE7A425IW-AEB — 4MP AcuSense PTZ speed dome, 25× optical zoom (4.8–120 mm), 360° endless pan, −15° to +90° tilt, auto-tracking, DarkFighter low light, IR to 200 m, IP66 with IK10
4 × Fixed cameras	DS-2CD2386G2-IU — 8MP 4K AcuSense turret, fixed 2.8 mm lens, 30 m Smart IR, 120 dB WDR, built-in microphone, IP67
1 × Recorder	DS-7608NI-M2/8P — 8-channel 8K NVR with eight built-in PoE ports and two SATA bays
Hard drive	Not included — add a surveillance-grade drive sized to the retention you need
Power	The four turrets run on standard PoE from the recorder. The PTZ draws considerably more and should be run from a PoE+ (802.3at) injector or its own 12 VDC supply rather than sharing the recorder's PoE budget
Mounting	Turret brackets and templates included; the PTZ suits a wall, pole or parapet mount, ordered to suit the position
Cabling	Cat6 is run on site and is not supplied; pre-made patch leads are available separately

What Makes This Kit

• Auto-tracking — the dome locks on and follows a classified person or vehicle across the site without anyone at the monitor
• 25× optical zoom — 4.8–120 mm — read a plate or a face at the far end of a yard that a fixed camera would render as a few pixels
• 200 m infrared — usable range after dark that no fixed turret comes close to
• Fixed cameras underneath — four 4K turrets keep recording their angles while the PTZ is pointed somewhere else — a PTZ alone always has its back turned to something
• IP66 and IK10 — weather-sealed and impact-rated for exposed pole and parapet positions

Where It Fits

For large yards, car parks, farms, sports grounds and industrial sites. Please note the power requirement above: the PTZ wants its own PoE+ injector or supply, which is worth planning into the install.

PTZ Camera — DS-2DE7A425IW-AEB

Camera Type	4MP Pro Series AcuSense PTZ Network Speed Dome · DarkFighter
Image Sensor	1/2.8" Progressive Scan CMOS
Max. Resolution	4MP · 2560 × 1440
Optical Zoom	25× (4.8–120 mm) · 16× digital
Min. Illumination	Colour 0.005 lux · B/W 0.001 lux · 0 lux with IR
Night Vision	IR up to 200 m · DarkFighter low-light
Pan / Tilt	Pan 360° endless · Tilt −15° to +90° · auto-tracking
Smart AI	AcuSense human/vehicle classification & face capture · audio-visual alarm
Power	12 VDC or PoE (IEEE 802.3af/at) — Hi-PoE / 802.3at or separate PSU recommended
Protection	IP66 · IK10

Fixed Camera — DS-2CD2386G2-IU

Camera Type	8MP 4K AcuSense IR Fixed Turret · Pro Series G2
Image Sensor	1/2.5" Progressive Scan CMOS · DarkFighter Lite
Max. Resolution	8MP · 3840 × 2160 (4K UHD)
Min. Illumination	Colour 0.005 lux @ F1.6 · 0 lux with IR
Lens	2.8 mm fixed · F1.6 · 111° HFOV
Supplement Light	Smart IR · 850 nm · up to 30 m
WDR / AI	120 dB True WDR · AcuSense human & vehicle
Audio / Storage	Built-in mic · microSD up to 256 GB
Power / Protection	12 VDC / PoE (802.3af) · IP67

Recorder Specifications — DS-7608NI-M2/8P

Channels	8 IP channels · up to 32 MP input
Incoming Bandwidth	80 Mbps
PoE	8 × PoE ports (IEEE 802.3 af/at)
Storage	2 × SATA (up to 16 TB per bay, 32 TB total) · no HDD by default
Video Output	1 × HDMI (up to 8K) + 1 × VGA · simultaneous
AI Functions	AcuSense human/vehicle · perimeter · facial (with compatible cameras)
Compression	H.265+ / H.265 / H.264+ / H.264
Remote / App	Hik-Connect (iOS & Android) · P2P · ONVIF

Assurance

• 3-Year Australian Warranty
• Genuine Hikvision stock, supplied and supported locally
• Australian-based technical support before and after purchase
